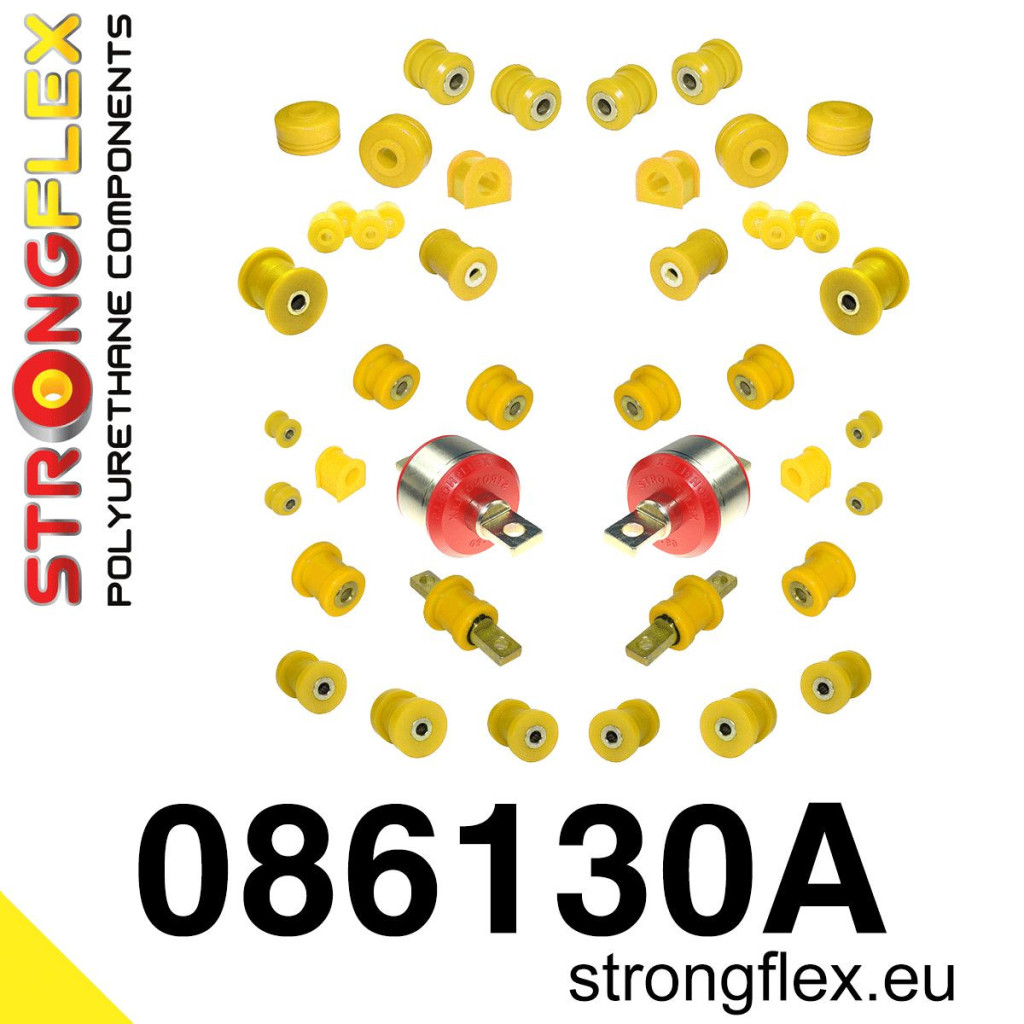

086130A: Full suspension bush kit polyurethane SPORT

Reference: 086130A

Product name: Full suspension bush kit polyurethane SPORT

Fits to:

• Honda CRX II (88-91)
• Honda Civic IV (88-91) EC/ED/EE/EF/EX

Include:

• 4x 081192A: Front upper wishbone bush SPORT
• 2x 081094A: Front wishbone - outer bush SPORT
• 2x 081164A: Front wishbone inner bush SPORT
• 4x 081165A: Front tie bar to chassis bush SPORT
• 8x 081109A: Front eye bolt mounting bush SPORT
• 2x 081229A: Front anti roll bar bush SPORT


• 4x 081101A: Outer arm to hub bush and inner track arm bush 31mm SPORT
  or
• 4x 081107A: Outer arm to hub bush and inner track arm bush 35mm SPORT


• 2x 081102A: Rear lower shock mounting bush SPORT
• 4x 081108A: Rear toe link arm bush SPORT
• 2x 081103A: Rear upper outer link/hub bush SPORT
• 2x 081104A: Rear trailing arm mount bush SPORT
• 2x 081105B: Rear trailing arm mount bush


• 2x 081171A: Rear anti roll bar bush SPORT
  or
• 2x 081172A: Rear anti roll bar bush SPORT


• 2x 081196A: Rear anti roll bar link bush SPORT
• 2x 081521A: Rear anti roll bar link bush SPORT

Diagrams:

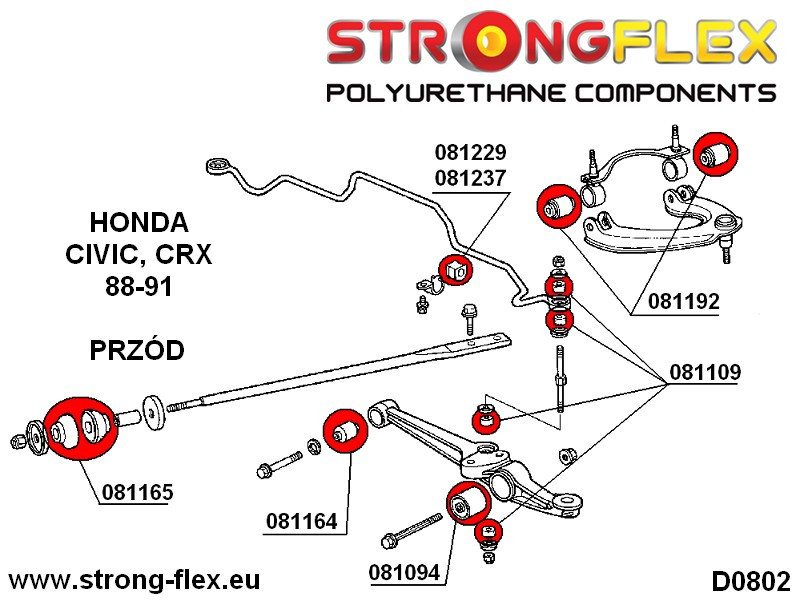

• D0802

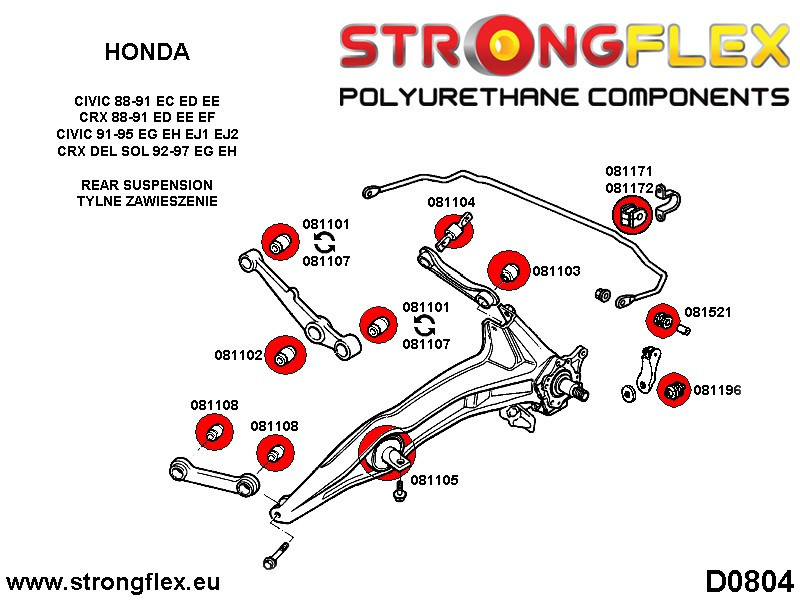

• D0804

Notes

• The 081165 bushing does not fit the Civic EE9 and CRX EE8.


• For bushing 081105A:
  To install the bush, you need the outer metal ring from the old original bushing. The old sleeve should be burned or cut out.
  Bushing 081105A is not a replacement for the original bushing, installing it will stiffen the suspension.


• Before purchasing, check the diameter of the front and rear stabilizer bars (081171 13mm or 081172 15mm) and the diameters of the rear lower wishbone bushings (081101 31mm or 081107 35mm).

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 44

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
