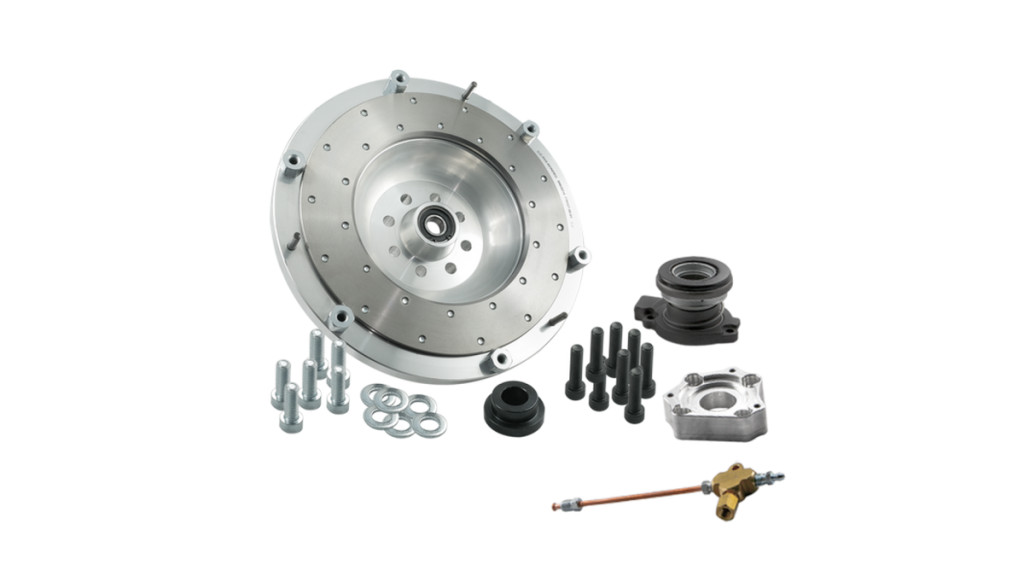

PMC Motorsport Lightweight custom aluminium flywheel Toyota JZ 1JZ 2JZ - MAZDA RX-7 RX7 FD - 240mm / 9.45"

Custom aluminium flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the Mazda RX-7 FD gearbox

• Designed in a CAD environment
• Only certified materials were used in the production process
• CNC machining
• Replaceable cast iron friction surface
• The flywheel is balanced prior to shipment

Manual

• An adapter is required to connect the engine to the gearbox
• Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
• Tighten the flywheel to the same torque as OE
• Use pressure plate from BMW E39 E60 530D
• Use clutch disc with 23,12x26,14-23N spline

 Made in EU
