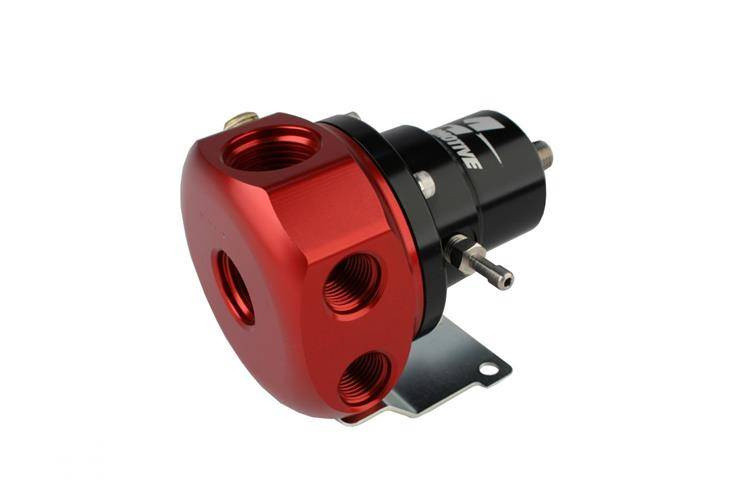

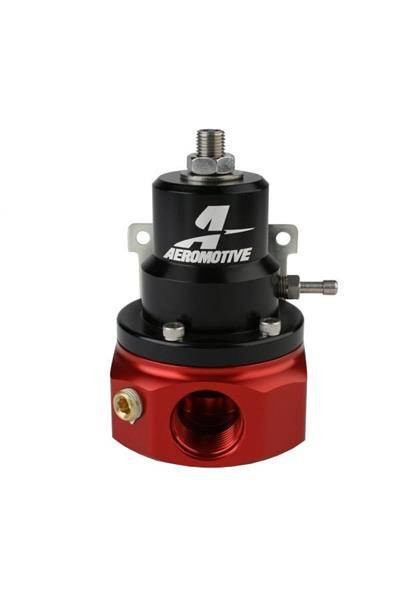

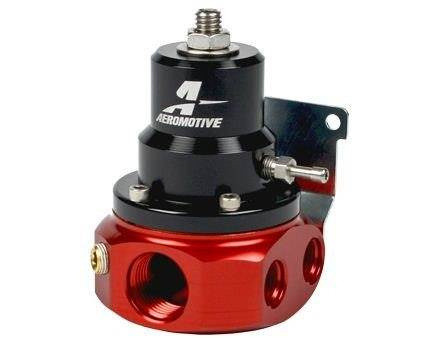

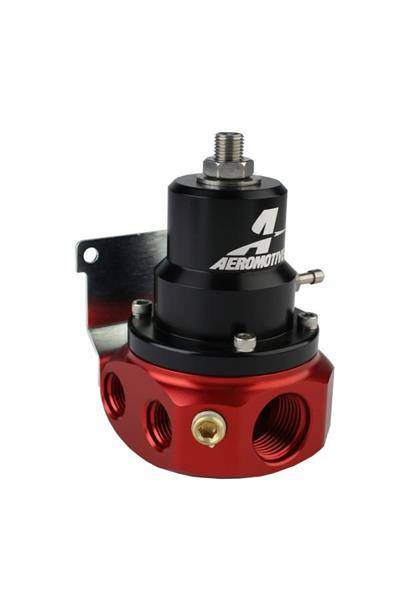

The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or 'blow-through' supercharged engines.
- Base fuel pressure adjustable from 3-15 PSI.
- (1) ORB-10 inlet port and (1) ORB-08 return port.
- P/N 13204 provides (4) ORB-06 outlet ports and 1/8′ NPT gauge port.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- Bypass design provides the ultimate, dynamic fuel delivery system.
- Ideal for converting from fuel injection to carburetion using the stock, in-tank pump.
- EFI conversions will require a larger-than-stock return line for proper low pressure control.
We also have connecting nipples:
