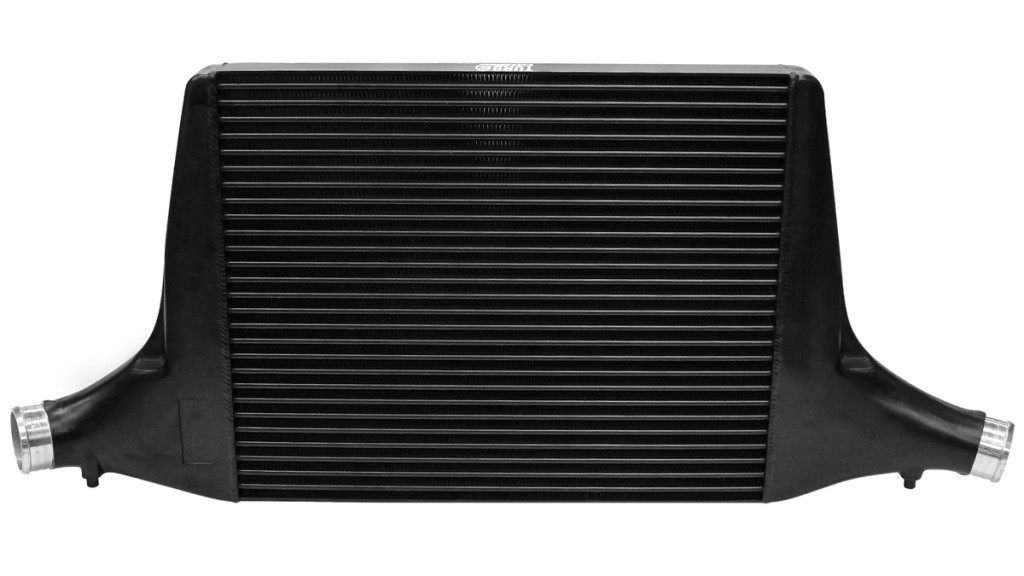

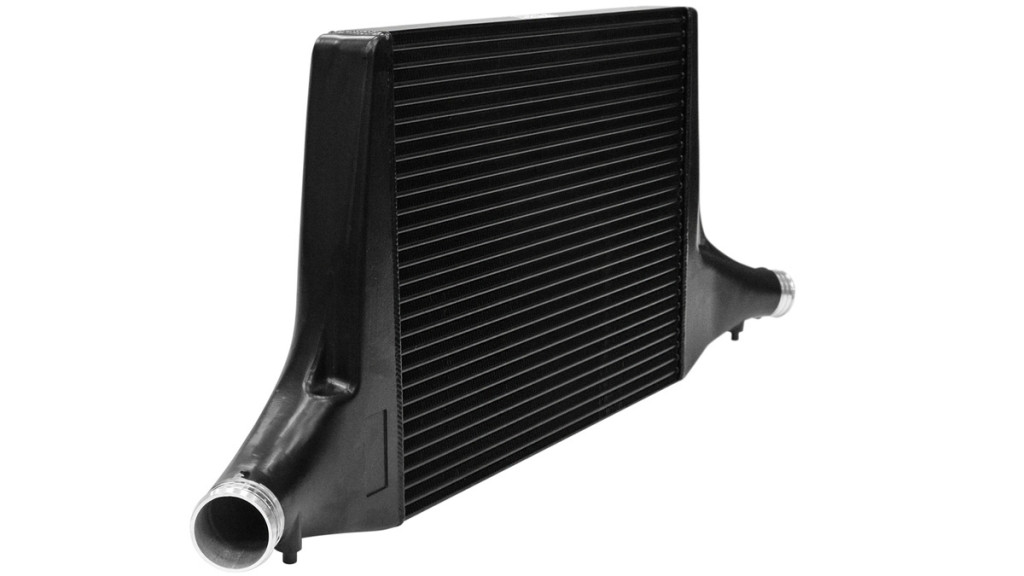

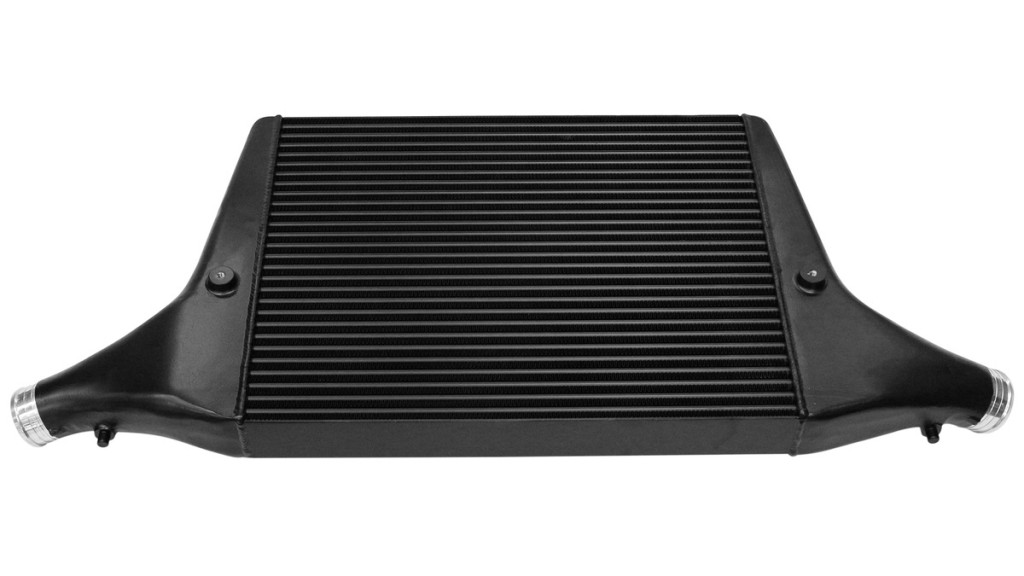

INTERCOOLER for the brand and model given in the subject name. The whole is made very carefully and accurately, the welded elements are so-called TIGIEM, T-6061 Aluminum.
Audi S4 B9 3,0TFSI 260KW/354PS (2016+)*
Audi S5 F5 3,0TFSI 260KW/354PS (2016+)*
The dimensions of the core itself:
- Width: 540mm
- Height: 445mm
- Thickness: 60mm
Inlet/Outlet: 70mm
Our intercoolers were one of the few tested over 10 bars.
TurboWorks intercoolers have an efficient COOL-TEC + core, walls made of the highest quality polished aluminum.
Other cores have less frequently arranged ribs, resulting in poor cooling, while COOL-TEC + cores are made of finer-sized ribs, which guarantees a significant improvement in cooling.
Application:
| Make | Engine Type | Engine CCM | Engine HP (KW) | Year From - Year To |
|---|
| AUDI A4 B9 (8W2, 8WC) (2015-) | S4 quattro (CWGD) | 2995 | 354 (260) | 2016 - |
| AUDI A4 B9 Avant (8W5, 8WD) (2015-) | S4 quattro (CWGD) | 2995 | 354 (260) | 2016 - 2019 |
| AUDI A5 (F53, F5P) (2016-) | S5 quattro (CWGD) | 2995 | 354 (260) | 2016 - |
| AUDI A5 Kabriolet (F57, F5E) (2016-) | S5 quattro (CWGD) | 2995 | 354 (260) | 2017 - |
| AUDI A5 Sportback (F5A, F5F) (2016-) | S5 quattro (CWGD) | 2995 | 354 (260) | 2016 - |
| AUDI Q5 (FYB, FYG) (2016-) | SQ5 TFSI quattro (CWGD) | 2995 | 354 (260) | 2016 - |
| AUDI A4 B9 (8W2, 8WC) (2015-) | 2.0 TFSI (CVKB, DBPA) | 1984 | 190 (140) | 2015 - |
| AUDI A4 B9 Avant (8W5, 8WD) (2015-) | 2.0 TFSI (CYRB, CYMC) | 1984 | 252 (185) | 2016 - 2019 |
| AUDI A5 Sportback (F5A, F5F) (2016-) | 2.0 TFSI (CVKB, DKYA) | 1984 | 190 (140) | 2017 - |
