CNC-machined 6063 aluminum body, black-anodized with laser-etched logo – light weight and corrosion resistance.
Large 0.69″ (≈ 17.5 mm) internal bore plus three -8 AN ORB ports deliver high fuel flow for power builds.
14 mm injector bores accept all OEM Honda K-Series injectors and retain factory clips.
Included phenolic washers thermally isolate the rail from the intake manifold, lowering vapor-lock risk.
Chemically compatible with gasoline, E85, and methanol thanks to anodized aluminum and Viton® seals.
Fits all OEM Honda K-Series intake manifolds (RBC, RBB, RRC, PRB, etc.).
Typical chassis: Acura RSX (Base/Type-S) 2002-2006, Honda Civic Si (EP3, FN2), Civic Type R (FD2, FN2) and K-Series swaps into EG/EK/EF, Integra DC2, and others.

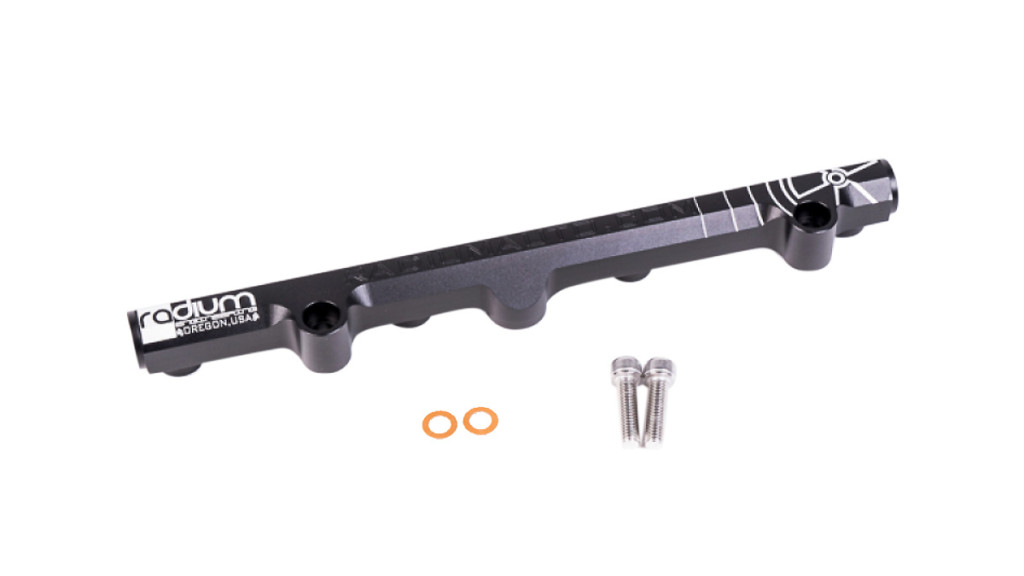

Anodized fuel rail 20-0230-02.
Stainless-steel mounting bolts.
Set of phenolic insulating washers.
PDF installation manual (download from Radium site)
