Intended for use for sports purposes. The brake has a very solid construction and is powder painted with a soft and comfortable handle.
The handle can be mounted vertically or horizontally.
Master cylinder piston diameter: 0.75 "

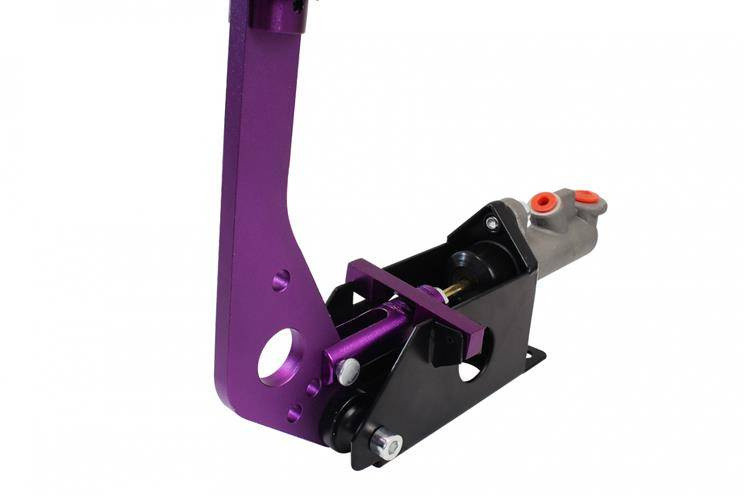

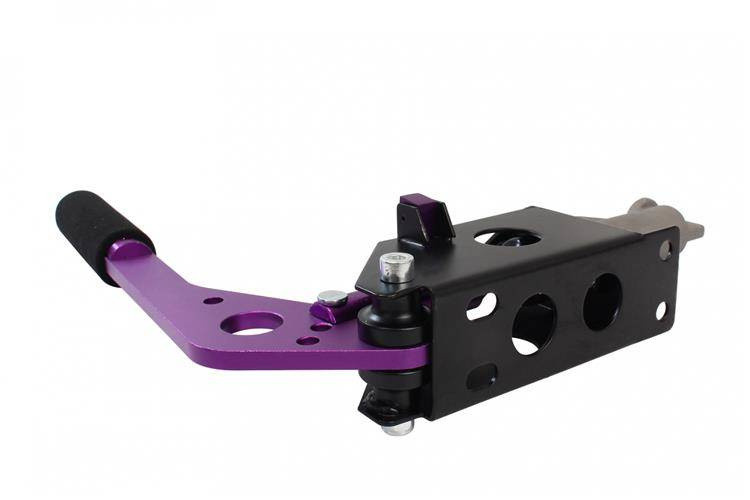

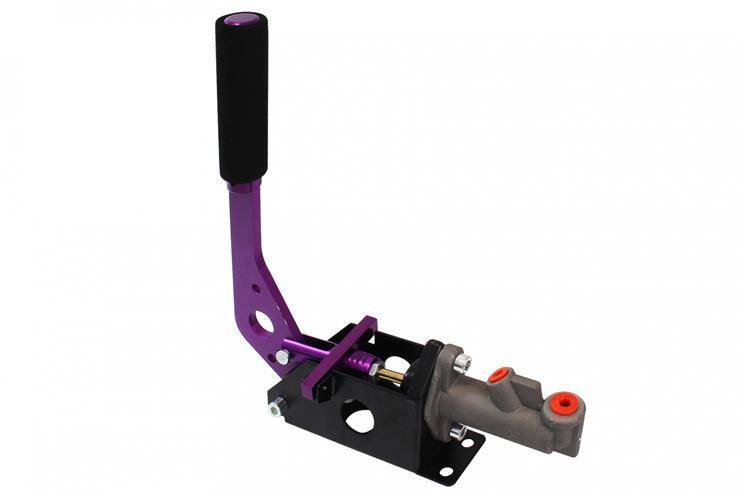

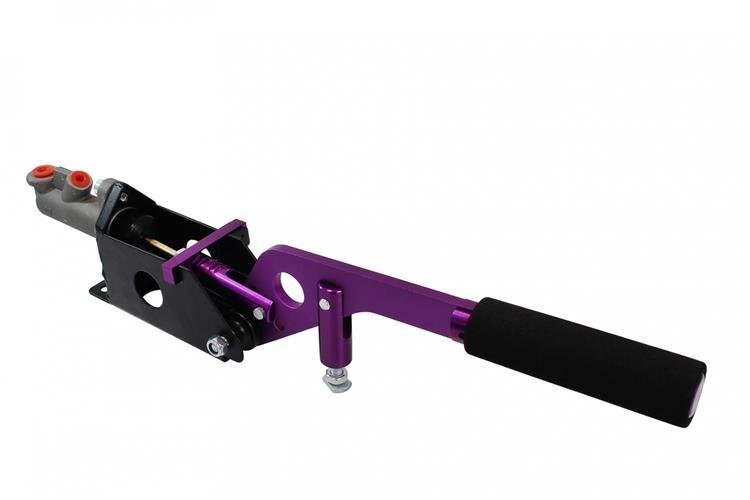

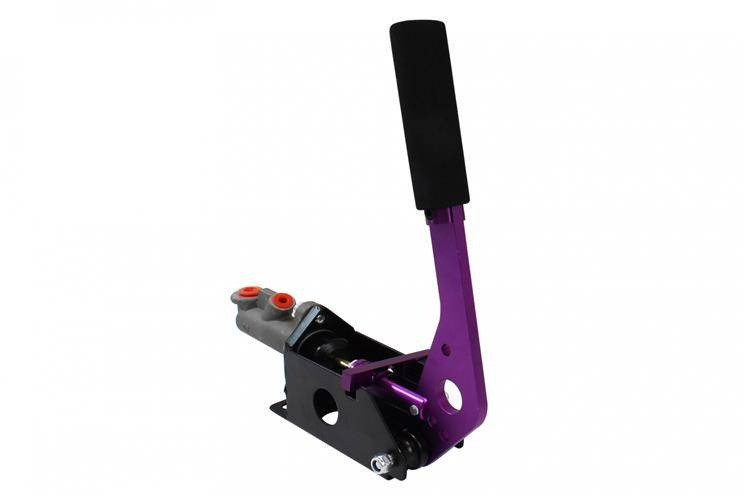

The kit includes the items shown in the pictures below:
- handle with mounting,
- master cylinder.
The master cylinder has connectors:
- inlet - AN4 - 7/16 "
- outlet - AN3 - 3/8 "
Couplings for rigid (copper / steel) or flexible hoses and sport brake hoses are available in our store.
Installation on flexible pipes does not require a specialized cable crimper.
For high performance braking systems, the standard is AN3 - it applies to both lines where the diameters will be 3.2mm inside and 7.5mm outside, as well as compression fittings and threaded fittings with a 3/8 inch thread size.
Thanks to the many connecting elements on our store, you can complete a ready assembly kit in many different ways:
- Installation in a system, on standard cables.
- Installation on flexible hoses to serial terminals, connect them with a double banjo screw on the terminals.
- Installation as a separate system for precise clamps, with an expansion tank on the pump.
- Mounting to standard calipers, unfastening the foot brake.
- and many others..
