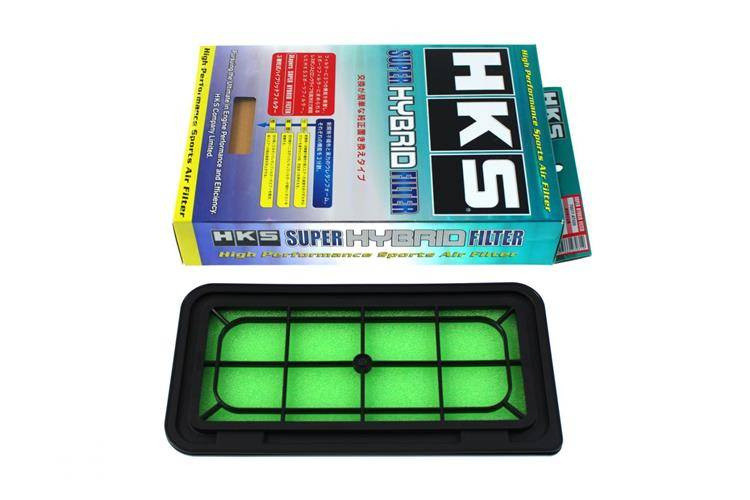

Details of Filter
- 3 layered filter divides, collects intake air and smoothes air flow. It enables quick response that is required for sport filter.
- Newly developed Non-woven fabric is the first layer that collects large dust. Second layer polyurethane filter collects small dust. Thus the new filter has longer life.
- Joining of each layer was changed from flame lamination to net type joining that does not affect intake air flow. Dry 3 layer structure enables lower resistance.

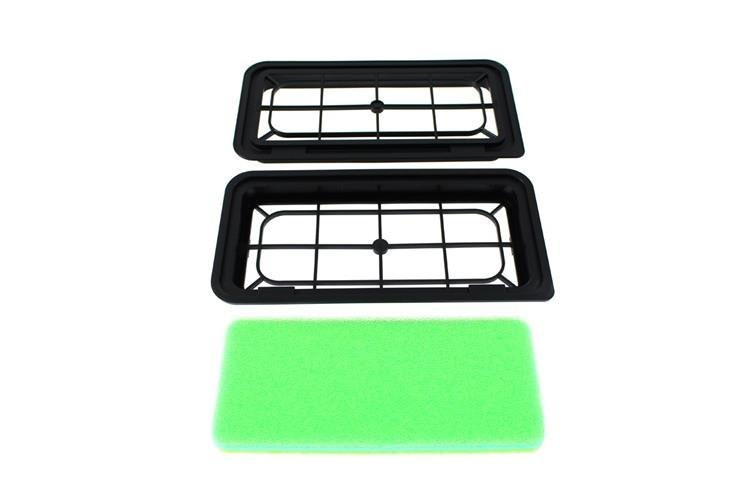

Details of Frame
- With high strength double frame, strong frame can be used for high horsepower.
- Shape of re-designed top frame enables smooth air flow.
- Separate shield frame is cushion type that does not require rubber gasket and easily disposable after use.
Specification:
- Height: 31mm
- Width: 149mm
- Length: 289mm
- Package Contents (pcs): 1
Filter 70017-AT020 is dedicated for listed below vehicles:
| PONTIAC | VIBE | 1ZZFE;2ZZGE | ZZE137/ZZE136/ZZE138 Chassis | OEM Part # 17801-22020 | 2003 - 2008 |
| SCION | FR-S | ALL | ZN6 Chassis | OEM Part # 17801-22020 | 2013 - 2016 |
| SUBARU | BRZ | ALL | ZC6 Chassis | OEM Part # 17801-22020 | 2013 - 2017 |
| TOYOTA | 86 | ALL | ZN6 Chassis | OEM Part # 17801-22020 | 2017 - 2017 |
| TOYOTA | COROLLA | 1ZZFE | ZZE122/ZZE124/NZE120/NZE121/NZE124 Chassis | OEM Part # 17801-22020 | 1998 - 2008 |
| TOYOTA | COROLLA | 1ZZFE;2ZZGE | ZZE123/ZZE122/ZZE124/NZE121/NZE124 Chassis | OEM Part # 17801-22020 | 2002 - 2008 |
| TOYOTA | MATRIX | 1ZZFE;2ZZGE | ZZE137/ZZE136/ZZE138 Chassis | OEM Part # 17801-22020 | 2003 - 2008 |
