PMC Motorsport Aluminium adapter (flange / orifice) Mitsubishi 4G63 - AUDI 01E 2.5 TDI

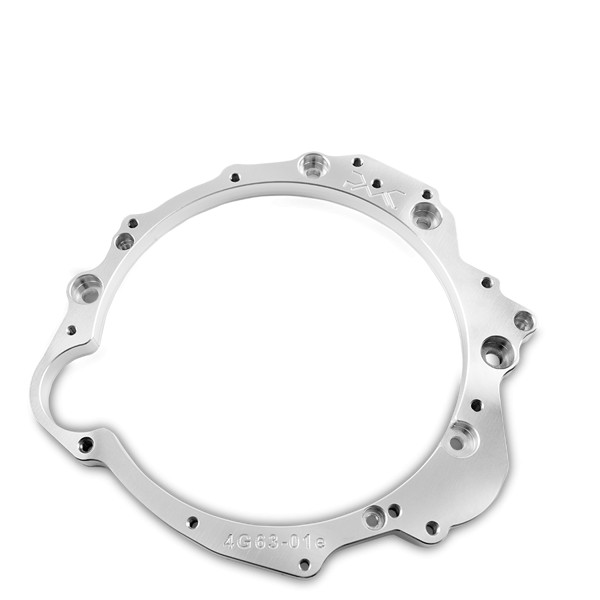

Aluminium adapter designed for the conversion (swap / connection) of a Mitsubishi 4G63 engine with manual transmission from an Audi
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and transmission

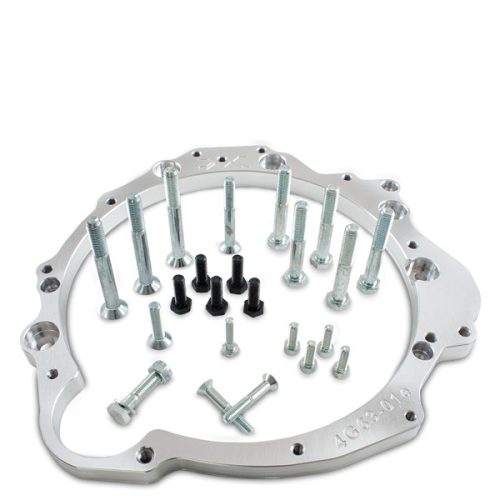

Kit includes:
Aluminium adapter
Necessary installation screws
Fitting Mitsubishi engines:
4G63
Matching manual transmissions:
Audi 01E 2.5 TDI
A custom flywheel is required for connection.
PMC Motorsport adapters are designed and manufactured in the European Union.
Quality confirmed by ISO EN ISO 9001:2015 certification
Engine model: Mitsubishi 4G63
Gearbox model: Audi 01E (2.5 TDI V6)
ADDITIONAL INFORMATION
Custom flywheel required: Yes
Adapter thickness: 20mm / 0.78"
Set contains : Aluminium gearbox adapter, Screws for mounting the adapter, Locking sleeves
Material: Aluminium
Sales codes for the products in the set: F0TDI-4G
