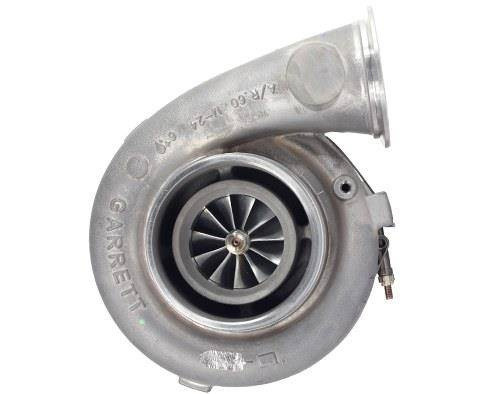

Sport dedicated turbocharger, Garrett GTX4294R.
About Garrett® GTX Series Turbochargers
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
Application :
- Power: 475 - 950HP
- Displacement: 2.0L - 7.0L
Features:
FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
SUPER CORE AND TURBINE KIT SOLD SEPARATELY
AVAILABLE ONLY WITH DIVIDED TURBINE HOUSINGS
V-BAND COMPRESSOR OUTLET CONFIGURATION
Table:
| Super Core Reference Data | Compressor | Turbine |
|---|
| Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
|---|
| 800269-5001S | 451888-0043 | 70mm | 94mm | 56 | 0.60 | 82mm | 75mm | 84 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim |
|---|
| Super Core and Turbine Kit Sold Separately | 757707-0001 | 1.01 | T4 | V-Band | Free Float | Y | 84 |
| 757707-0002 | 1.15 | T4 | V-Band | Free Float | Y | 84 |

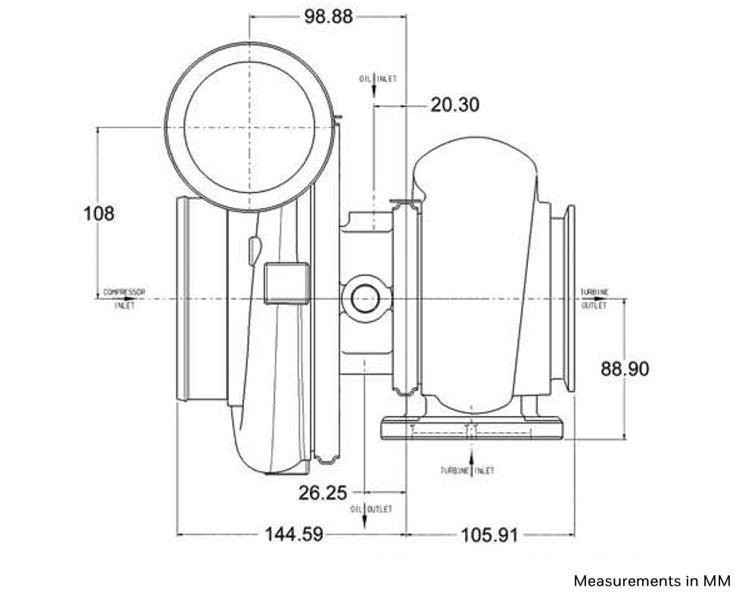

Dimension:
Graph:
