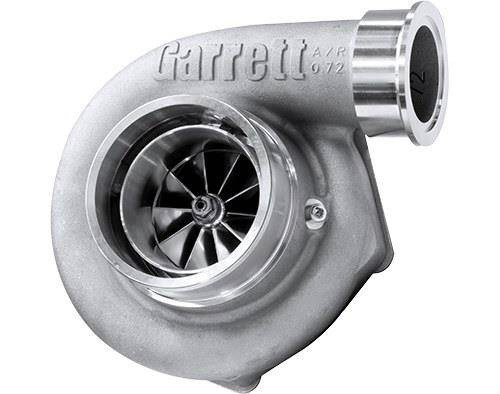

Sport dedicated turbocharger, Garrett GTX3584RS.
About Garrett® GTX Series Turbochargers
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
Application :
- Power: 550 - 1000HP
- Displacement: 2.0L - 5.5L
Features:
GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
"RS" DESIGNED, HIGH HORSEPOWER TURBINE WHEEL
COMPACT DESIGN FOR TIGHT INSTALLATIONS
NEW FULLY-MACHINED SPEED SENSOR PORT.
SOLD AS ASSEMBLY KITS (SUPER CORE + TURBINE KIT)
COMP OUTLET AVAILABLE IN V-BAND & HOSE CONNECTION
Table:
| | Compressor | Turbine |
|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
|---|
| GTX3584RS Hose Bead Comp Outlet | 67mm | 84mm | 64 | 0.72 | 68mm | 62mm | 84 |
| GTX3584RS V-Band Comp Outlet | 67mm | 84mm | 64 | 0.72 | 68mm | 62mm | 84 |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
|---|
| Hose Bead Comp Outlet | 856804-5001S | 846098-5001S | 740902-0067 | 0.83 | V-Band | V-Band | Free Float | N |
| 856804-5002S | 846098-5001S | 740902-0066 | 1.01 | V-Band | V-Band | Free Float | N |
| 856804-5003S | 846098-5001S | 740902-0052 | 1.21 | V-Band | V-Band | Free Float | N |
| V-Band Comp Outlet | 856804-5004S | 846098-5002S | 740902-0067 | 0.83 | V-Band | V-Band | Free Float | N |
| 856804-5005S | 846098-5002S | 740902-0066 | 1.01 | V-Band | V-Band | Free Float | N |
| 856804-5006S | 846098-5002S | 740902-0052 | 1.21 | V-Band | V-Band | Free Float | N |

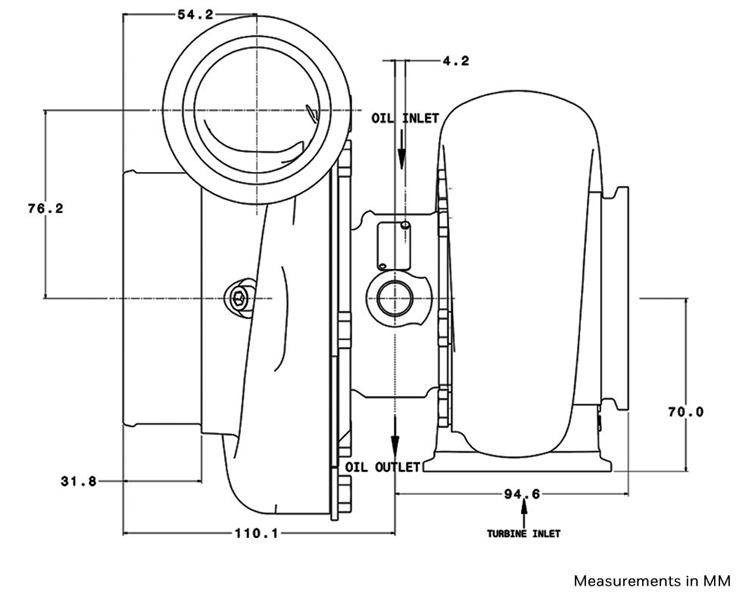

Dimension:
Graph:
