PMC Motorsport Lightweight custom aluminium flywheel Toyota Lexus V8 UZ 1UZ 3UZ - Mazda RX8 RX-8 - 240mm / 9.45"

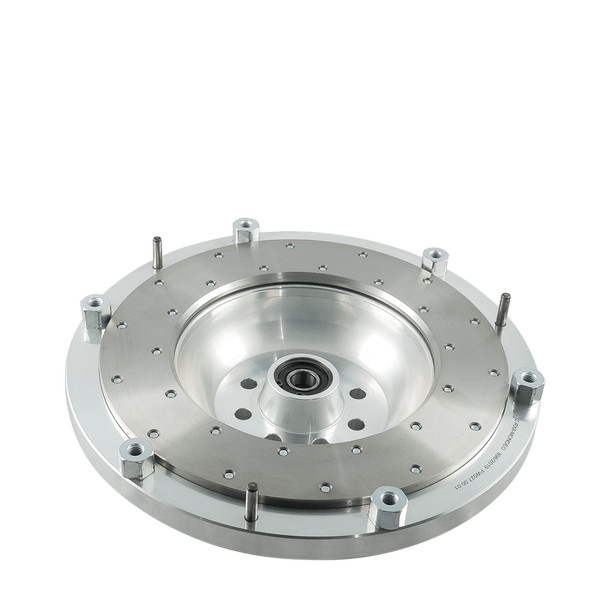

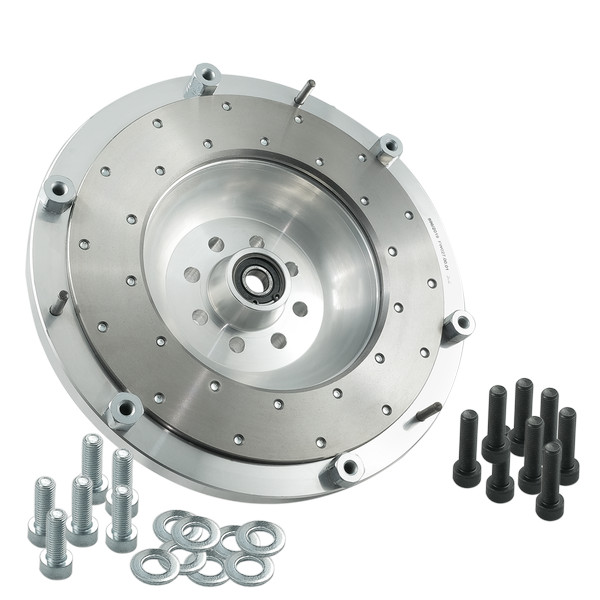

Custom aluminium flywheel designed to mate the Toyota UZ engine to the Mazda RX-8 gearbox
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining

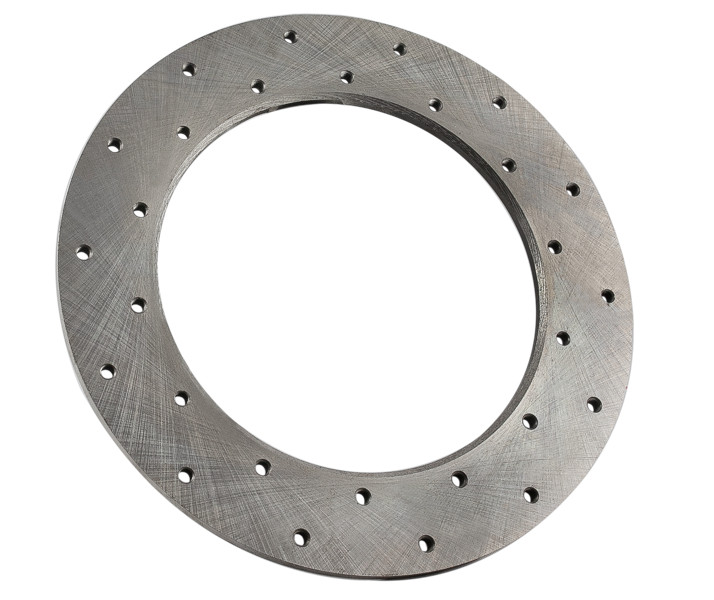

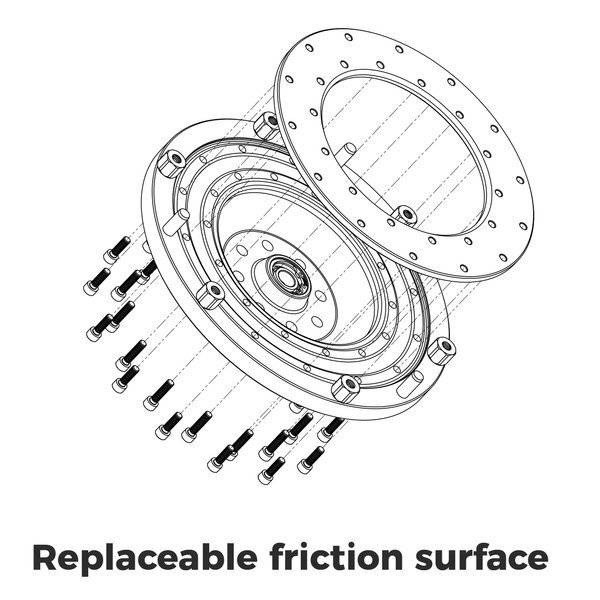

- Replaceable cast iron friction surface

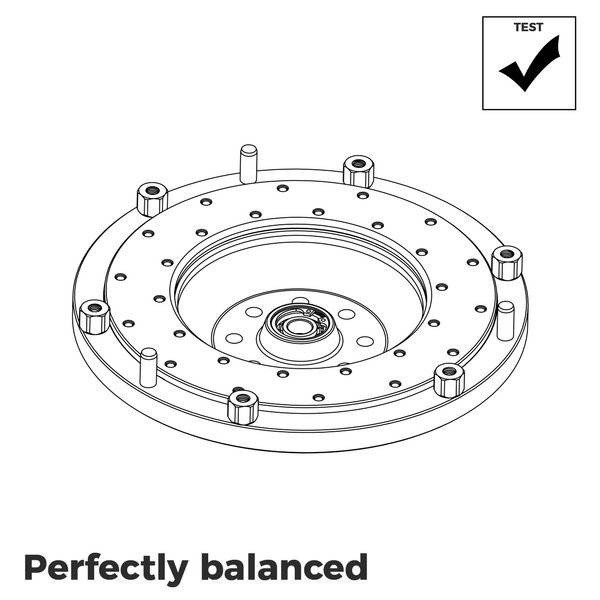

- The flywheel is balanced prior to shipment
Engine list: | - Toyota / Lexus V8 1UZ 1UZ-FE
- 1989–2000 Lexus LS 400 / Toyota Celsior
- 1989–2002 Toyota Crown / Toyota Crown Majesta
- 1991–2000 Lexus SC 400 / Toyota Soarer
- 1992–2000 Lexus GS 400 / Toyota Aristo
- 1995–1997 SARD MC8/MC8-R
- Toyota / Lexus V8 3UZ 3UZ-FE
- Lexus LS 430 (2000-2006)
- Lexus GS 430 (2000-2007)
- Lexus SC 430 / Toyota Soarer (2001-2010)
- Toyota Crown Majesta (2004-2010)
- Hongqi HQ430
|
Gearbox list: | - Mazda RX-8 6-speed
- Y6Y0-17-01XA
- Y610-17-01XG,
- Y610-17-01XJ,
- Y610-17-01XM,
- Y610-17-01XR,
- Y610-17-01XS,
- Y610-17-01XU,
- Y611-17-01XG
- Mazda RX-8 5-speed
|
Manual
- An adapter is required to connect the engine to the gearbox

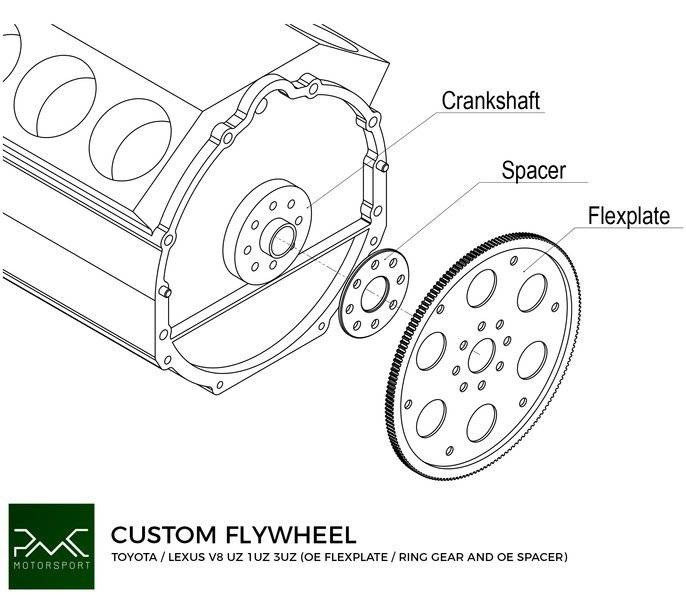

- Use the flywheel / ring gear from the automatic version and one spacer (OE 4.5mm) between the engine block and the flexplate
- Tighten the flywheel to the same torque as OE
- Use pressure plate from BMW E39 E60 530D
- Use clutch disc with 23,12x26,14-23N spline
