PMC Motorsport aluminium custom flywheel
Toyota JZ 1JZ 2JZ - BMW M57N2 GS6-53DZ HGU HGK E90 325D 330D 6-speed Diesel - 215mm / 8.46" (Twin Disc)

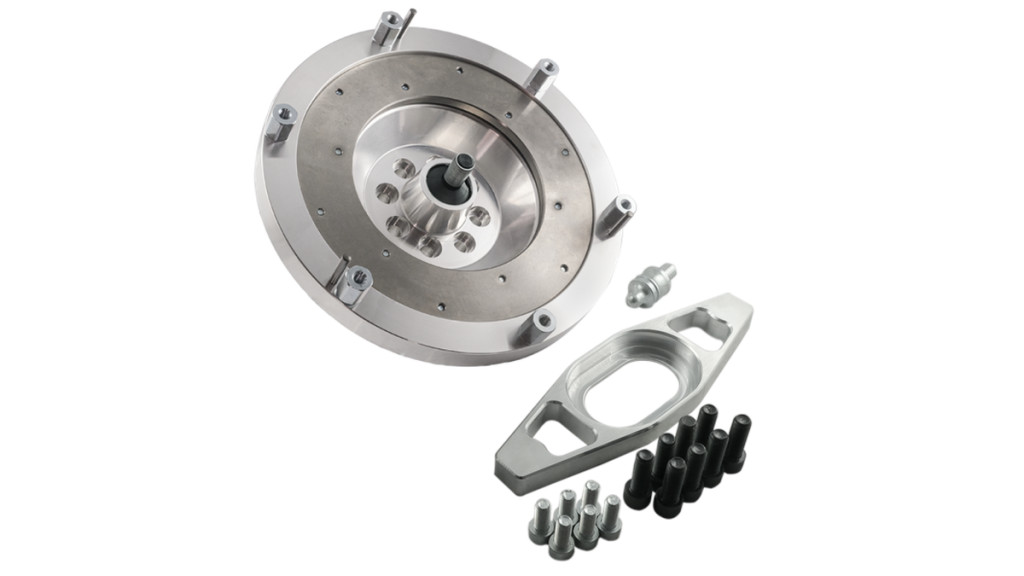

Custom aluminum flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the BMW M57N M57N2 ZF GS6-53DZ gearbox
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
- Replaceable cast iron friction surface
- The flywheel is balanced prior to shipment
Engine list: | - Toyota 1JZ (non VVT-i / VVT-i version)
- Toyota 1JZ-FSE
- Toyota 1JZ-GE
- Toyota 1JZ-GTE
- Toyota 2JZ (non VVT-i / VVT-i version)
- Toyota 2JZ-FSE
- Toyota 2JZ-GE
- Toyota 2JZ-GTE
|
Gearbox list: | - BMW M57N2 23.00 7565213 ZF GS6-53DZ HGU (THGU) 6-speed 1067 010 014 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 420 / 23 00 7 560 725
- BMW E90 325D 330D E90N 325D M57N2 E91 325D 330D E91N 325 M57N2 E92/e93 325D 330D M57N2
- BMW M57N2 23.00 753 9000 ZF GS6-53DZ HGK (THGK) 6-speed 1067 010 004 ZF 1067 401 116 1067401116
- BMW E90 325D 330D E90N 325D M57N2 E91 325D 330D E91N 325 M57N2 E92/e93 325D 330D M57N2
|
Manual:
- An adapter is required to connect the engine to the gearbox.
- Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
- Guide tube shortening required BMW OEM 23 11 7 501 71
- Replace the original custom pivot pin with the one from the kit.
Made in EU
