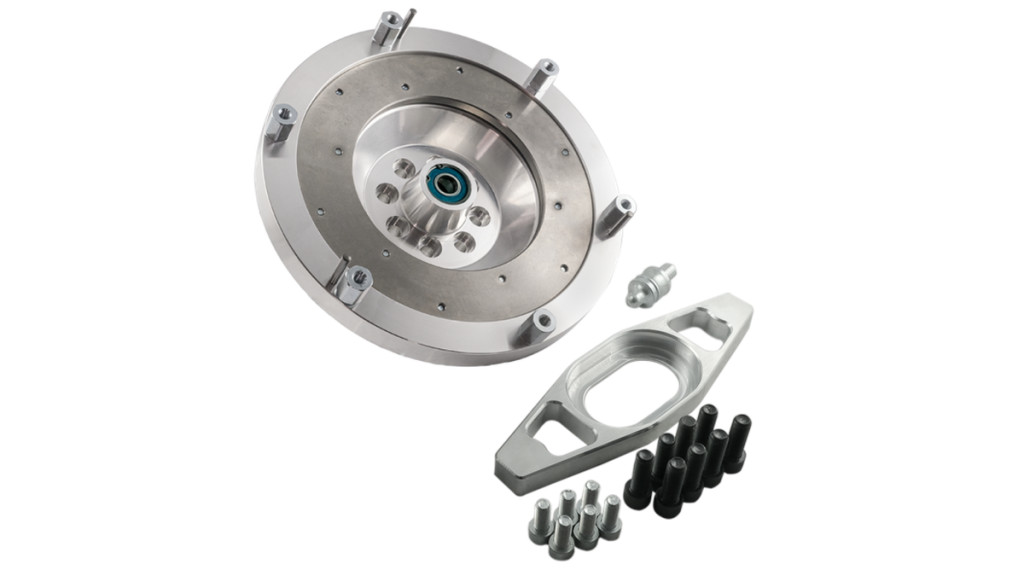

PMC Motorsport aluminium custom flywheel
Toyota JZ 1JZ 2JZ - BMW M57N2 GS6-53DZ HGD JGA E60 525D 530D 6-speed Diesel - 215mm / 8.46" (Twin Disc)
Custom aluminum flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the BMW M57N M57N2 ZF GS6-53DZ gearbox
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
- Replaceable cast iron friction surface
- The flywheel is balanced prior to shipment
Engine list: | - Toyota 1JZ (non VVT-i / VVT-i version)
- Toyota 1JZ-FSE
- Toyota 1JZ-GE
- Toyota 1JZ-GTE
- Toyota 2JZ (non VVT-i / VVT-i version)
- Toyota 2JZ-FSE
- Toyota 2JZ-GE
- Toyota 2JZ-GTE
|
Gearbox list: | - BMW M57N M57N2 23.00 7522205 GS6-53DZ HGD (THGD) 6-speed 1067 010 003 ZF 1067 401 060 1067401060 / 1067 401 016 1067401016 BMW OEM 23 00 7 522 205 / 23 00 7 565 218
- BMW E60 E60N E61N E61 525D 530D
- BMW M57N M57N2 23.00 7565218 GS6-53DZ JGA (TJGA) 6-speed 1067 010 013 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 426
|
Manual:
- An adapter is required to connect the engine to the gearbox.
- Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
- Guide tube shortening required BMW OEM 23 11 7 501 71
- Replace the original custom pivot pin with the one from the kit.
