Ecumaster Advanced Display Unit ADU-7"

Cikkszám:
EM-EC-002
Márka:
ECUMASTER
Rendelhető
796 710 Ft
Nettó ár: 627 331 Ft
Kedvezményeket keres?
Részletek

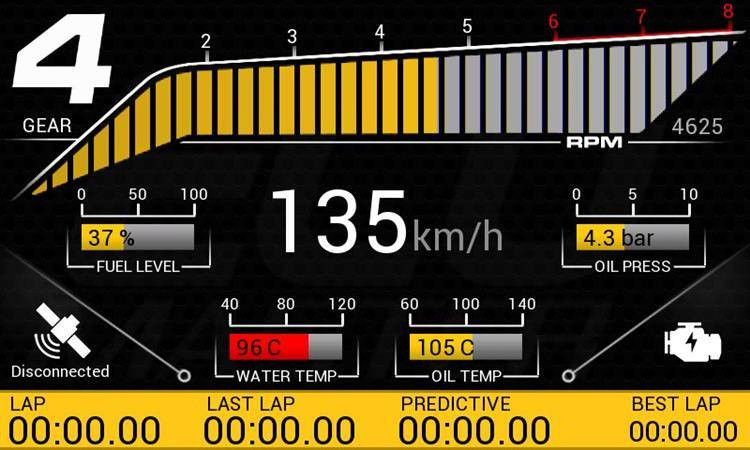

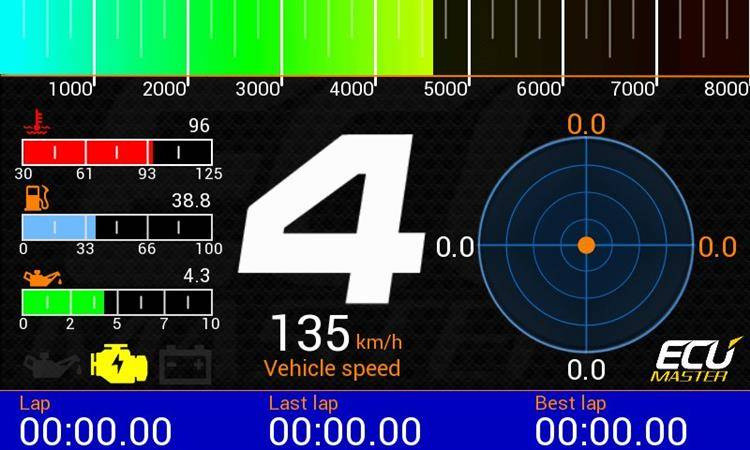

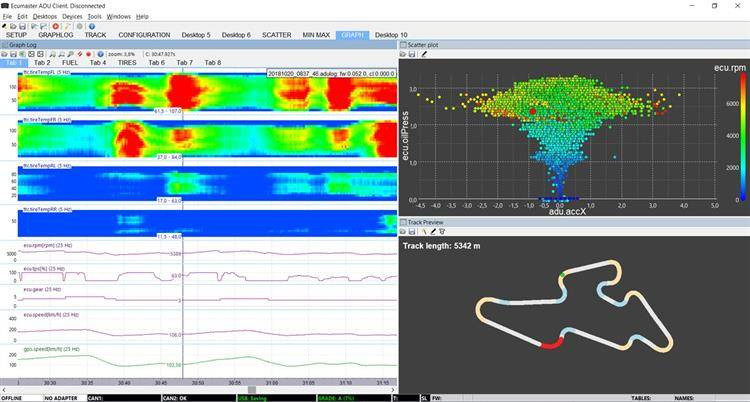

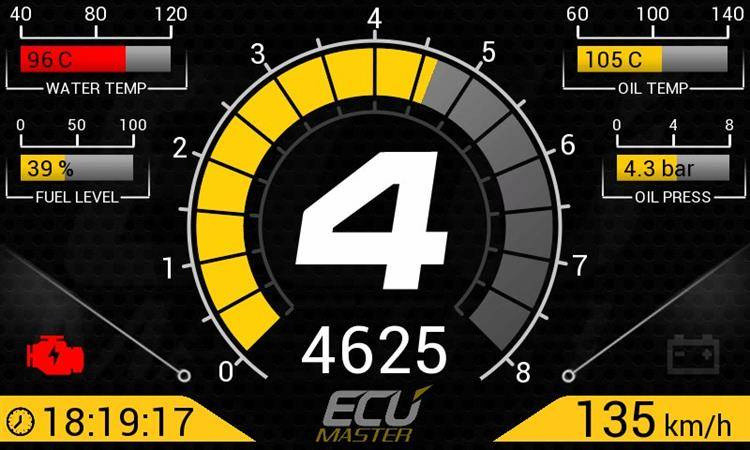

The Ecumaster ADU display factory has several configured pages, each of which can be freely modified by the user.As a result, the data displayed on the display may be different, for example in the case of tests, qualifications or the race itself, and may be changed manually or automatically.Each displayed parameter or element (clocks, icons, text, etc.) can be easily modified using the provided software via a computer.An extensive system of overlays enables displaying important messages such as low oil pressure or the best lap time regardless of the currently displayed screen.

Features:

  • Lap timer: Lap timer with memory, time prediction, triggered by a beacon or GPS signal
  • Possibility of configuration: 48 pages, user-defined content, possibility of uploading graphics
  • Functions: Mathematical + logical
  • Overlays: Yes, user-defined
  • CAN stream: User defined, up to 48 input messages, predefined streams for popular ECUs

Technical data:

  • Voltage range: 6-22 V, resistance in accordance with ISO 7637, with protection against reverse polarity
  • Processor: 32 bits, automotive, 90MIPS
  • Working temperature range: -30 ° C to 80 ° C

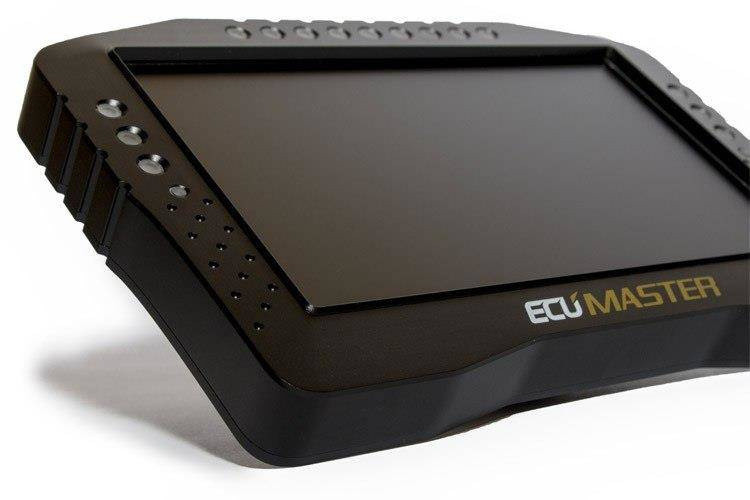

  • Housing: Anodized aluminum, CNC machined, IP67 standard

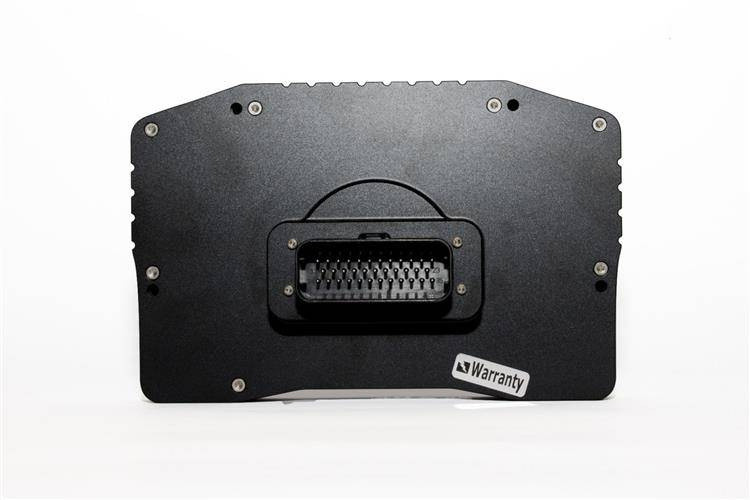

  • Connector: Automotive 36-way AMP

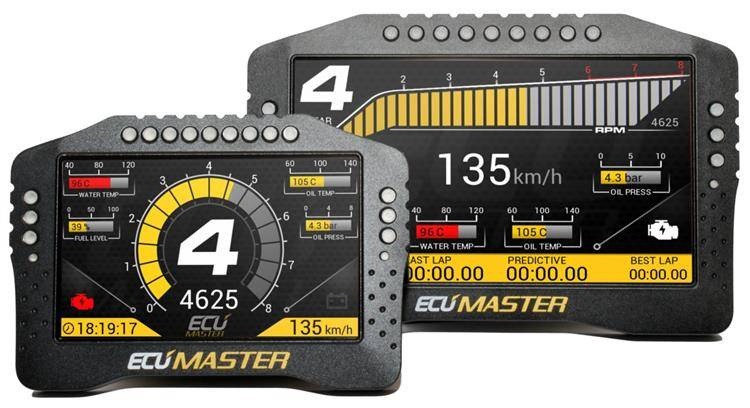

  • Screen: 5 "TFT matte display, 800x480, active field 108x64.8 mm, brightness 600 cd / m2, TFT 7" display, 800x480, active field 154.08x85.92 mm, 500cd / m2 brightness
  • Alarms: 15 x ultra bright RGB LED

Communication:

  • CAN: 2 x CAN 2.0B (250, 500, 1000 kbps) independent
  • Serial port: RS232 (Rx, Tx)
  • USB: Yes

Inputs:

  • Analog: 8 analog outputs, 10 bits, 500 Hz, software selectable pullups / pulldowns
  • Digital: 8 digital outputs freely configurable

outputs:

  • General purpose: 2 x protected 3A low side outputs

Logging:

  • Memory: USB Flash Memory
  • Speed: up to 500Hz per channel
  • Clock: Yes

Other information:

  • Accelerometer: 3-axis gyroscope and 3-axis accelerometer
  • Light sensor: Built-in, the ability to automatically set the brightness
  • Temperature sensor: Built-in to monitor the temperature of the display
  • Real time clock: Built-in, battery powered
Raktárkészletek
Központi raktár
0 db
Kiszállítás 1-3 munkanap
Külső raktár
Nincs raktáron
Kiszállítás 5-10 munkanap
Adatok
EAN:
5903713144205
Tömeg:
840 g/db
