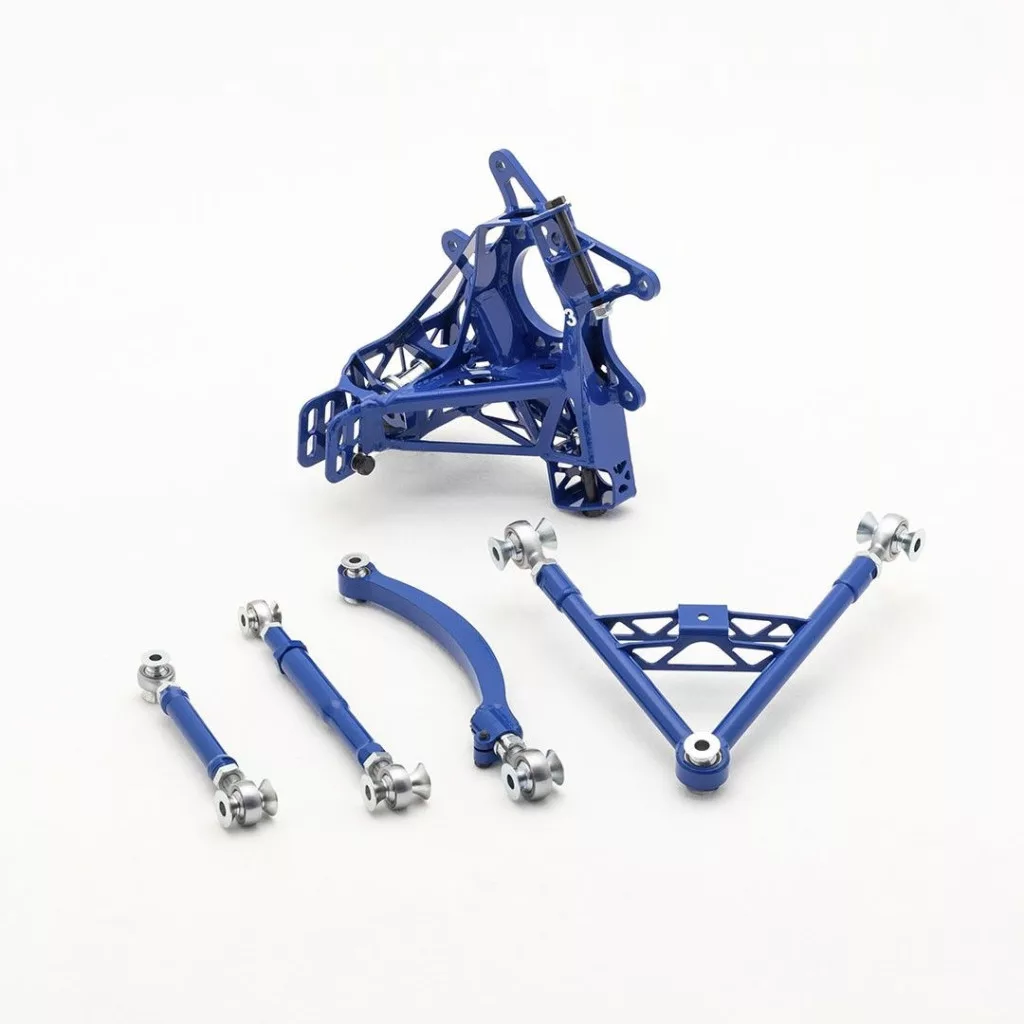

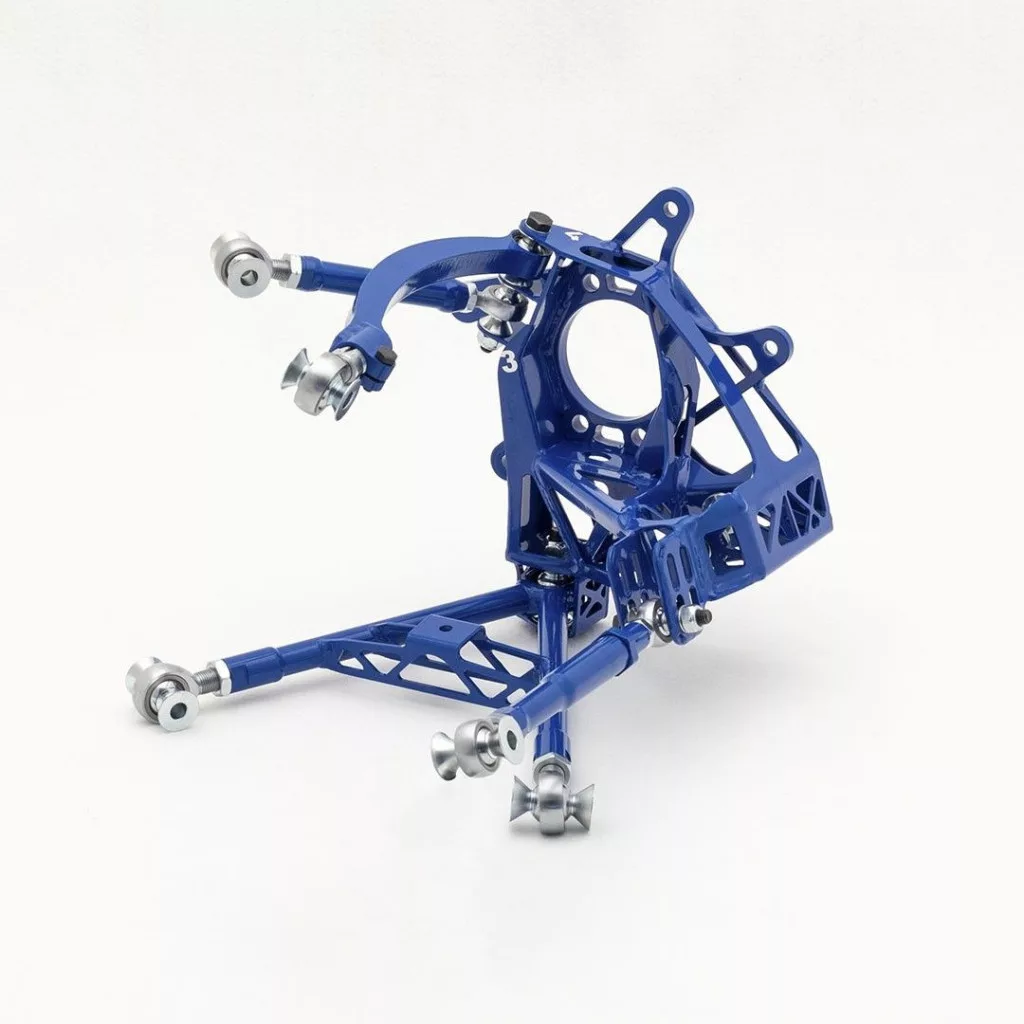

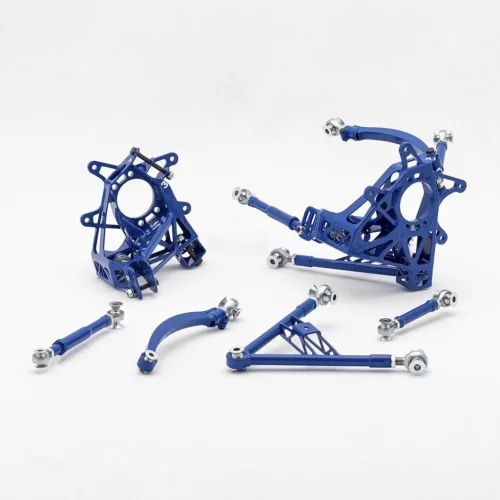

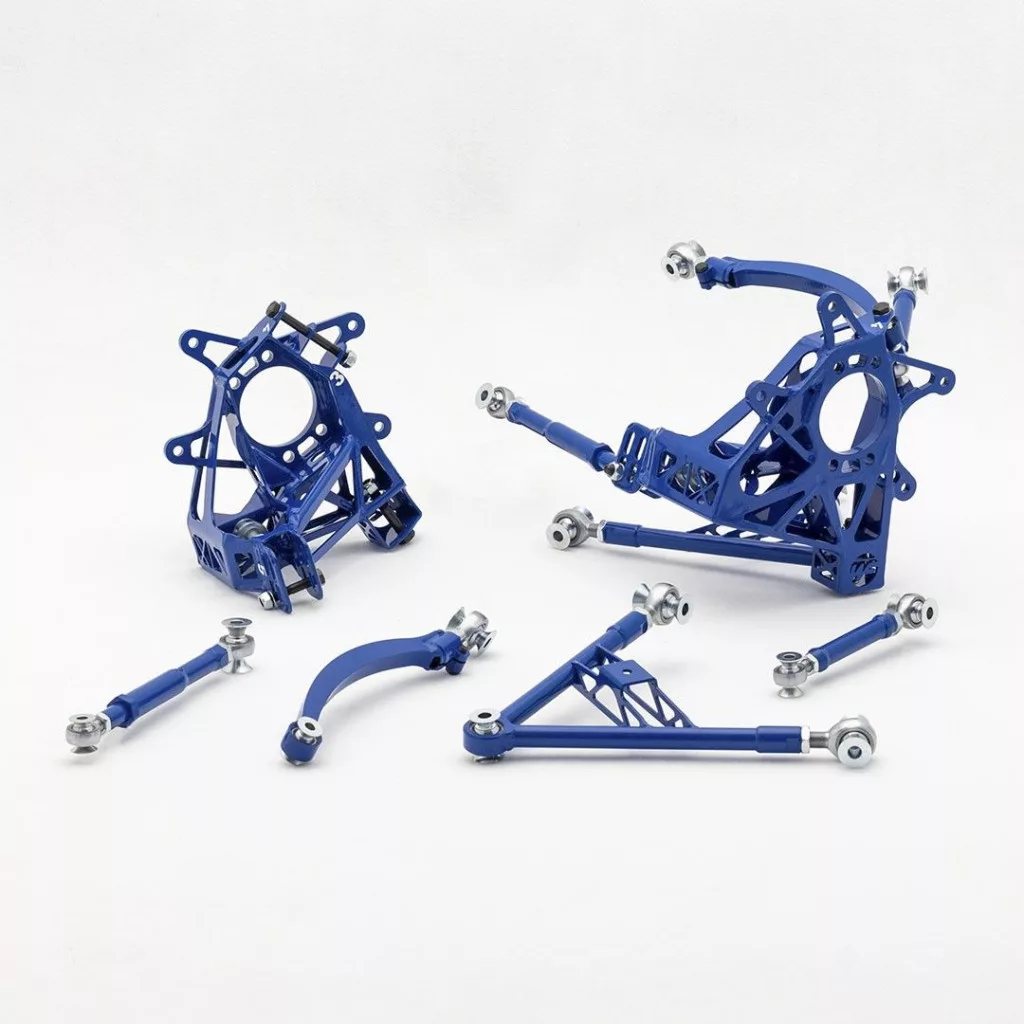

Drop knuckle Kit Nissan S14 S15 V2 Wisefab

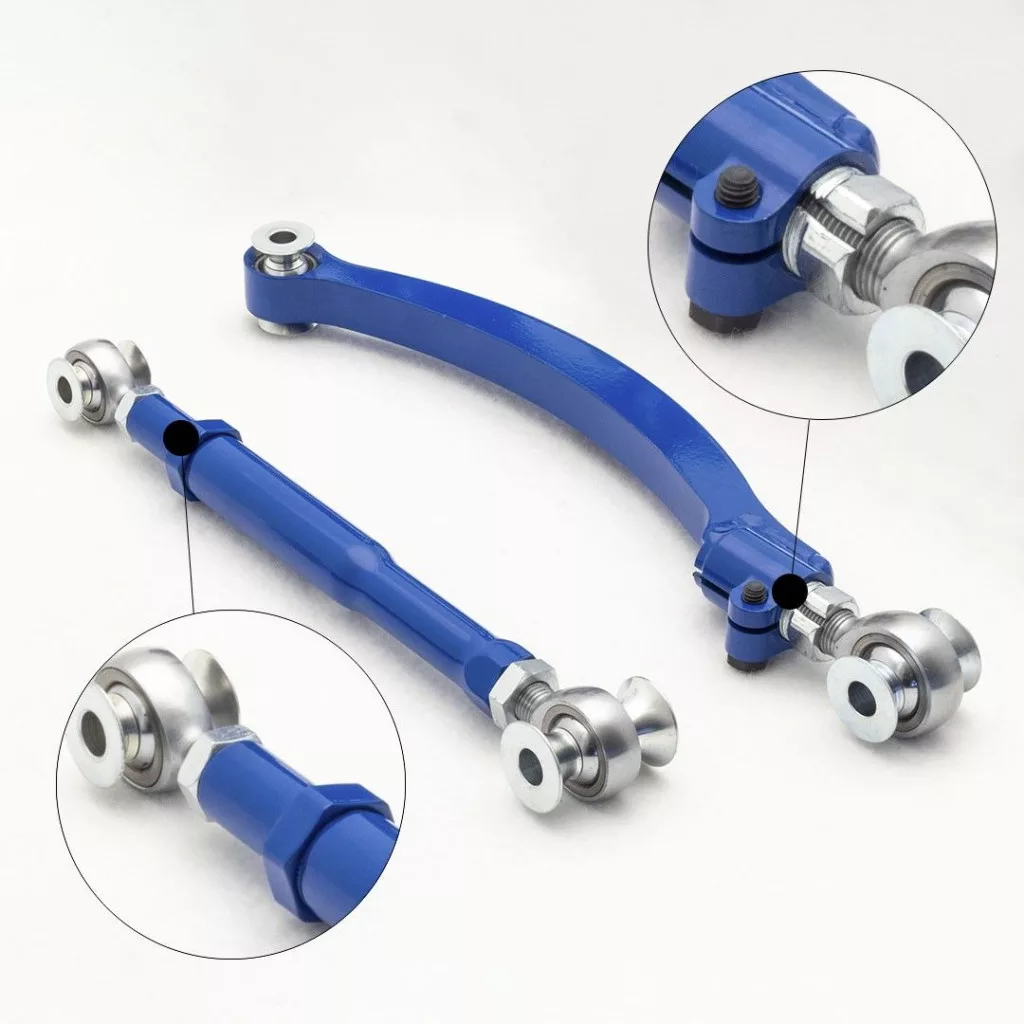

Upgraded Nissan S-chassis rear suspension kit is designed with racing and drifting in mind. It features several unique solutions, including a new “compression” style toe arm, an improved camber arm, and a reinforced knuckle.

Using first-class materials and optimized design has allowed a major weight reduction – the knuckle weighs around 2.7 kg while being able to withstand 5–6G peak loads at the tire contact patch on a 1100 kg car. The S14 Wisefab knuckle has revised kinematics compared to OEM, with built-in anti-squat, higher roll center, reduced camber gain and adjustable bump steer for maximum grip and performance. Every component of this suspension kit is also available separately as a spare part.

Recommended alignment settings:

• Camber: -0.5°
• Toe: 3–10 mm toe in per side
