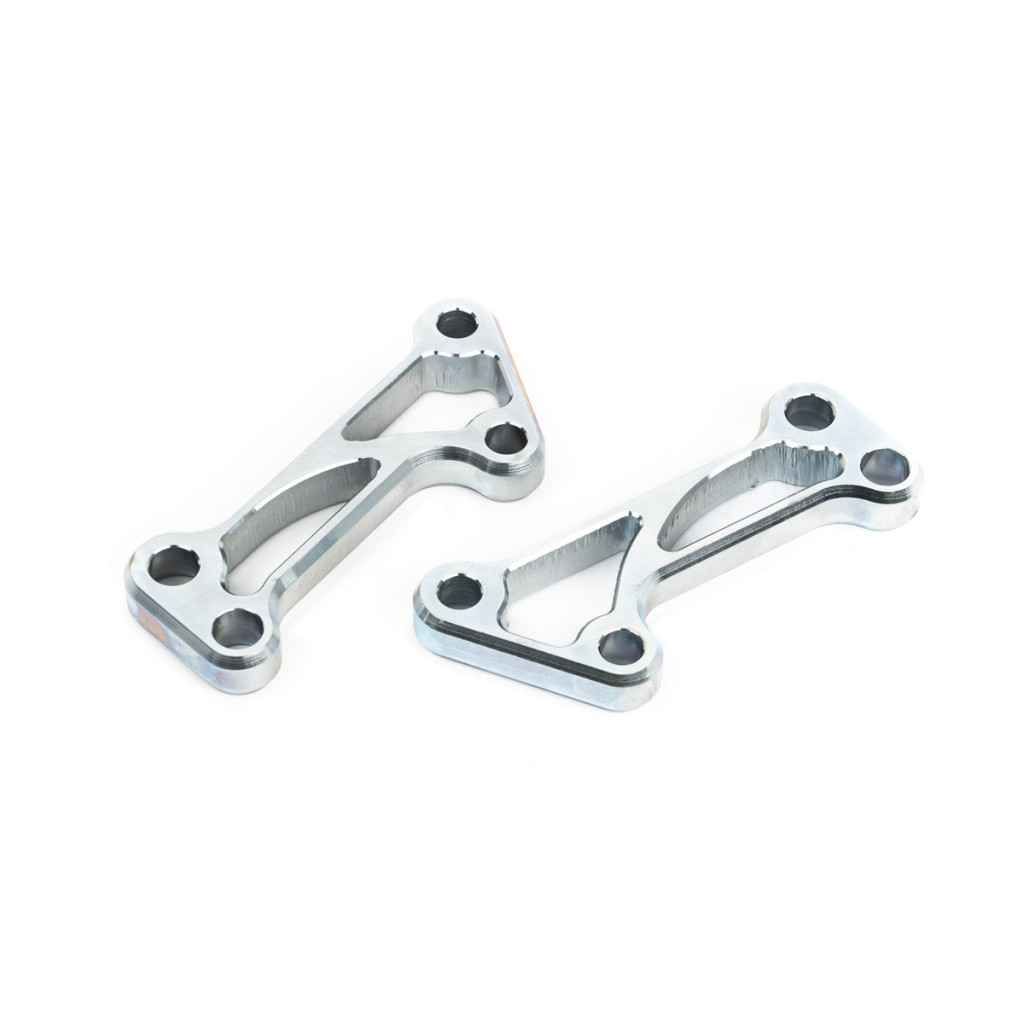

The subject of the sale is a set of steel BMW E46 adapters with a set of mounting bolts for the factory control arms.
Adapters are milled on CNC machines, which gives a high quality finish and 100% matching of the adapter to the steering knuckle and pin ends.
The adapters are protected with a zinc coating.
During assembly, the steering rod and tie rod end should be shortened by 1 centimeter, bodywork remains intact.
Depending on knuckle wear and differences in castings there is a possibility that you may need to shorten the bolt securing the adapter to the knuckle. It's for making sure that it won't come into contact with the shock mounting bracket.
We fit our adapters to Meyle ball joints cone spec. We've noticed that different manufacturers can have different machining tolerances. Due to this fact, it may happen that ball joint mounting thread will protrude from the adapter and you may not be able to bolt it down securely. If that's the case, use washer to space the nut and you'll be good to go.
The minimum inside diameter of the rim to fit the adapter is 370mm.
Adapters extend the spacing by 2 cm per side. To obtain approximately 55 degrees of lock.
The kit includes:
- LEFT knuckle adapter - 1 piece
- RIGHT knuckle adapter - 1 piece
- fixing bolts - 4 pieces
We add assembly instructions to the set.
