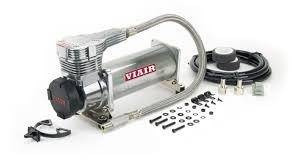

VIAIR 485C Chrome CompressorVIAIR's brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI.
This next generation compressor is a true 200 PSI-rated working pressure pump.
The 485C features newly-developed sleek head design, increased duty cycle and quieter dB levels.
The 485C is available in Platinum/Chrome or Stealth Black finishes, and comes equipped with either a stainless steel or a Black sleeved stainless steel 3/8" leader hose and an inline check valve.Features:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Combined Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.63″L x 4.1″W x 6.44″H
- Net Weight: 11.10 lbs.
FILL RATES
| 2.5 Gallon Tank | Fill Rate |
| 0 to 200 PSI | 4 min. 50 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 15 sec. (± 05 sec.) |
| 5.0 Gallon Tank | Fill Rate |
| 0 to 200 PSI | 9 min. 45 sec. (± 15 sec.) |
| 165 to 200 PSI | 2 min. 25 sec. (± 05 sec.) |
