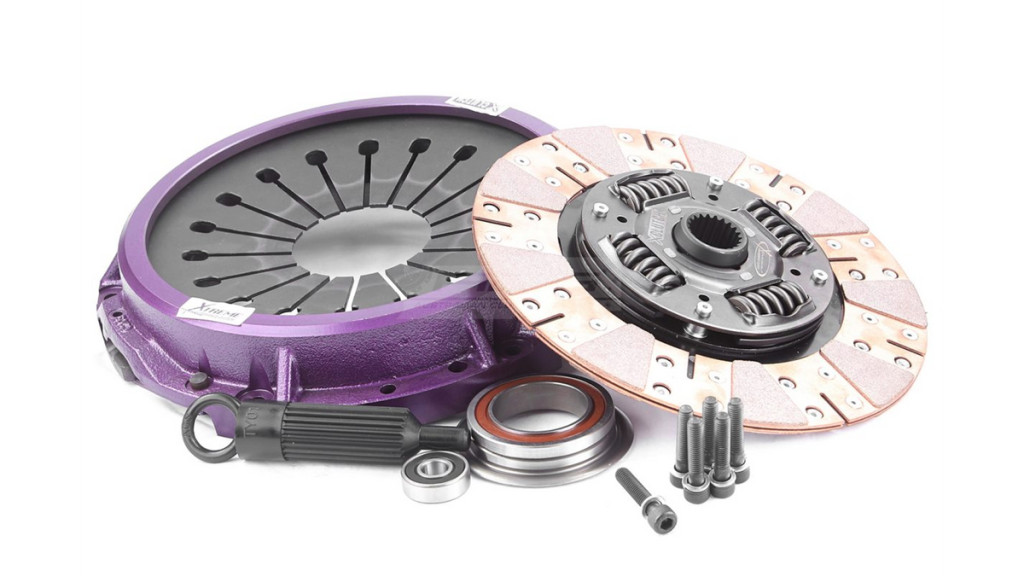

Xtreme Performance - Cushioned Ceramic kit /-1C
Recommended for: Motorsport ApplicationsThese kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.
Specifications:
- Torque capacity 850Nm
- Clamp load 1000Kg 25% Increased over standard
- Cushioned Ceramic Friction Disc
- Heavy Duty Pressure Plate
- Kit contains everything you need for a successful installation + accessories
The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.
Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Additional informations:
Clutch Disc Diameter (mm): 236 Clutch Disc Spline Count: 21 Clutch Disc Spline Diameter (mm): 29 Torque (Nm): 850 Flywheel Step: +.5mm/.020"" Design: Single Plate Stage: Stage 2 Tech Bulletins:
TSB-TY09 Clamp Load: 1000Kg (25% inc.) Recommended for: Track - Stage 2 Ring Gear Tooth count: Additional infotmation:
Applications:
- Toyota/Chaser/2.5 (JZX90. JZX93)/1992.10-1996.08/1JZ-GE 2491 Petrol 132 kW 180 BHP (1992.10 - 1996.08) , - Toyota/Chaser/2.5 (JZX100_)/1996.10-2001.05/1JZ-GE 2491 Petrol 147 kW 200 BHP (1996.10 - 2001.05) , - Toyota/Supra/2.5 i Bi-Turbo (JZA70)/1990.08-1993.05/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.08 - 1993.05) , - Toyota/Soarer/2.5 Turbo (JZZ30)/1990.09-2000.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1990.09 - 2000.09) , - Toyota/Chaser/2.5 Turbo (JZX90)/1992.10-1996.08/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.08) , - Toyota/Mark II/Gen. VI |2.5 (JZX110)/1992.10-1996.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1992.10 - 1996.09) , - Toyota/Chaser/2.5 (JZX100_)/1996.10-2001.05/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.05) , - Toyota/Mark II/Gen. VII | 2.5 VVTi (JZX100)/1996.10-2001.09/1JZ-GTE 2491 Petrol 206 kW 280 BHP (1996.10 - 2001.09) ,
