CNC Flywheel for conversion Toyota JZ 1JZ 2JZ - Mazda RX-8 - 240mm / 9.45"

Cikkszám:
PMC-K0RX8-FB-JZ
Márka:
PMC
Ingyen szállítjuk
Rendelhető
261 340 Ft
Nettó ár: 205 780 Ft
Kedvezményeket keres?
Részletek

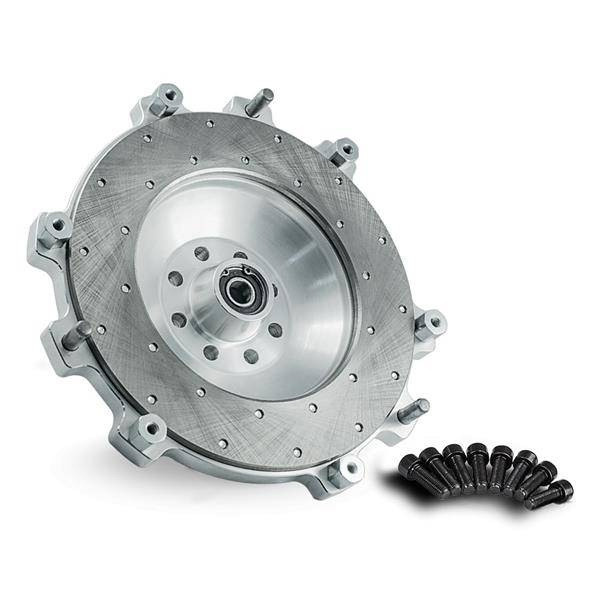

PMC Motorsport Custom Flywheel Toyota JZ 1JZ 2JZ - Mazda RX8 RX-8 - 240mm / 9.45"
Aluminium custom flywheel designed to connect the Toyota JZ engine to the Mazda RX-8 gearbox.



What sets us apart:

The lightweight aluminium flywheel has a replaceable cast iron friction surface, each unit is carefully checked and balanced before shipment
We use a measuring arm and a high-quality 3D scanner during the design process
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and gearbox

State-of-the-art CNC machinery and qualified staff.
Certified materials

Matching engines:
Toyota 1JZ (non VVT-i / VVT-i version)
Toyota 1JZ-FSE
Toyota 1JZ-GE
Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)
Toyota 2JZ-FSE
Toyota 2JZ-GE
Toyota 2JZ-GTE
Matching gearboxes:
Mazda RX-8 6-speed
Y6Y0-17-01XA
Y610-17-01XG,
Y610-17-01XJ,
Y610-17-01XM,
Y610-17-01XR,
Y610-17-01XS,
Y610-17-01XU,
Y611-17-01XG
Mazda RX-8 5-speed

Installation instructions
An adapter is required to connect the engine to the gearbox.
Use the flywheel/rim from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the rim.
Tighten the flywheel with the same torque as the OE.
Use the pressure plate from the BMW E39 E60 530D
Use a 240mm clutch disc with a 23.12x26.14-23N polygon

Raktárkészletek
Központi raktár
0 db
Kiszállítás 1-3 munkanap
Külső raktár
Nincs raktáron
Kiszállítás 5-10 munkanap
Adatok
EAN:
5903713081777
Tömeg:
6 kg/db
