PMC Motorsport Custom Honda K20 K24 flywheel - MAZDA RX-8 5-speed - 240mm / 9.45"

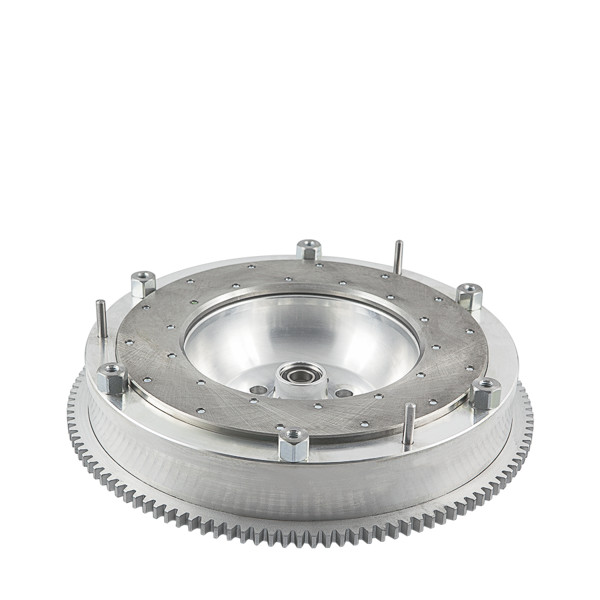

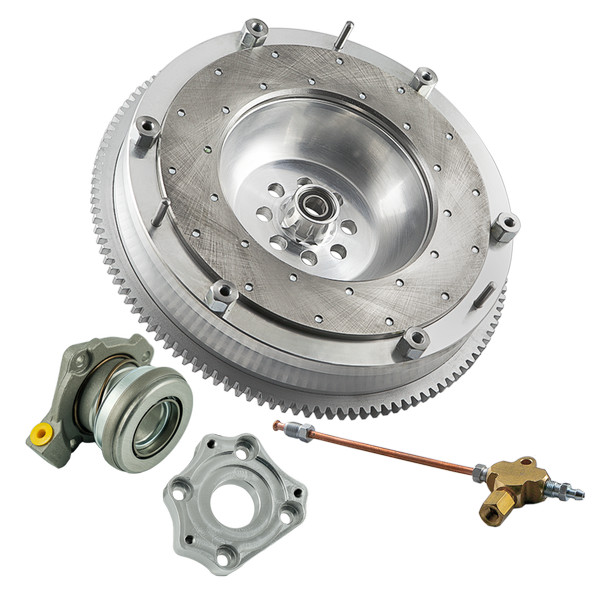

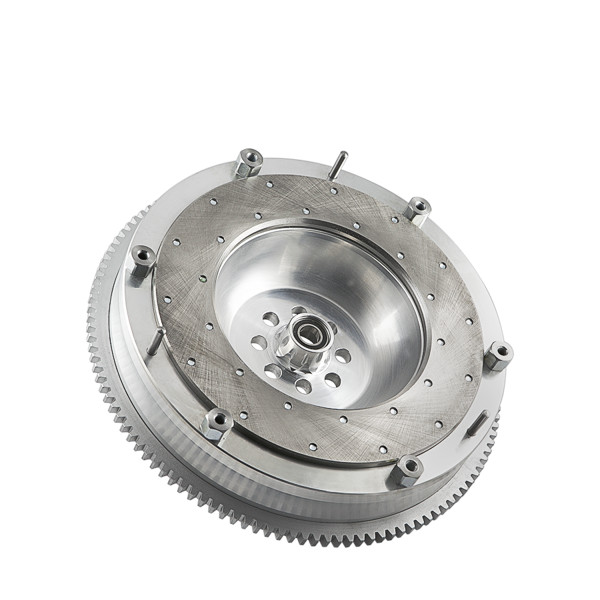

Aluminium custom flywheel designed to mate the Honda K20 K24 engine with the manual transmission from the Mazda RX-8 5-speed.
Designed in CAD environment
only certified materials used in production process
CNC machining
Replaceable cast iron friction surface
Flywheel is balanced before shipment
Suitable engines:
Honda K K20
Honda K20A
Honda K20A1
Honda K20A2
Honda K20A3
Honda K20A4
Honda K20A6
Honda K20Z1
Honda K20Z2
Honda K20Z3
Honda K20Z4
Honda K24
Honda K24A1
Honda K24A2
Honda K24A3
Honda K24A4
Honda K24A8
Honda K24Z1
Honda K24Z2
Honda K24Z3
Honda K24Z4
Honda K24Z5
Honda K24Z6
Honda K24Z7
Matching gearboxes:
Mazda RX-8 5-speed
Installation instructions

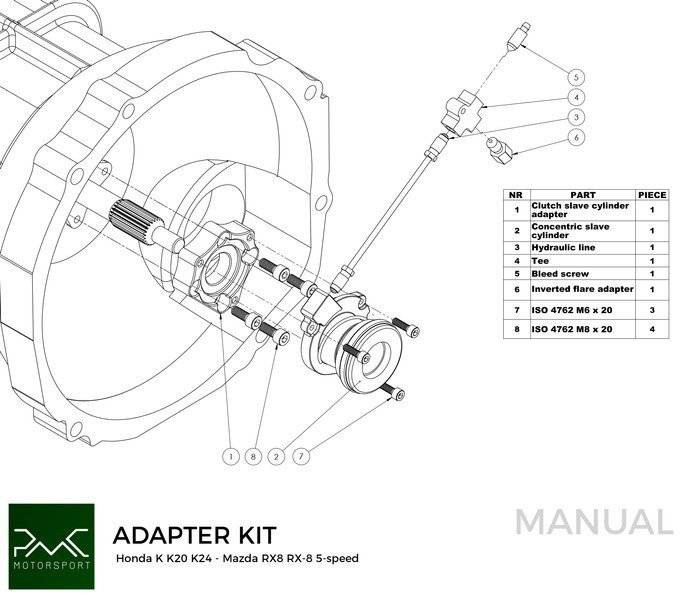

An adapter is required to connect the engine to the gearbox.
Tighten the flywheel with the same torque as OE (!use OE Honda K 90011-PNA-B00 bolts (manual version) - not included!)
use OE Honda spacer
