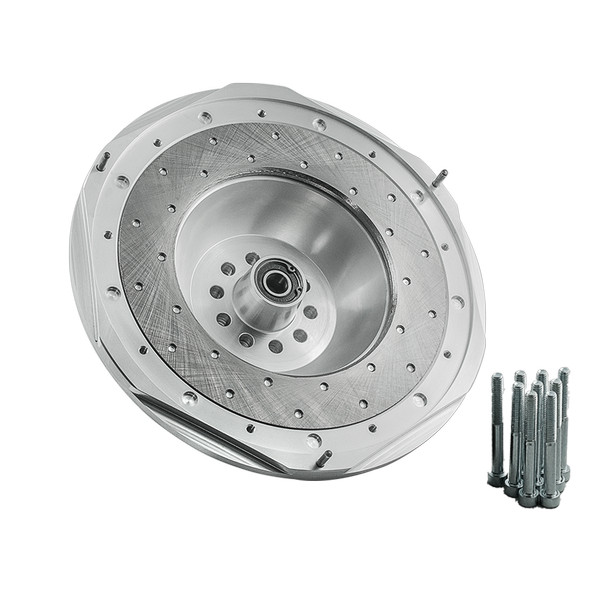

PMC Motorsport Custom Flywheel Audi 4.2 V8 ABZ - BMW M57N2 ZF GS6-53DZ HGD JGA E60 525D 530D 6-speed manual Diesel - 228mm / 8.98"
Aluminium custom flywheel designed to connect the Audi 4.2 V8 ABZ engine to the BMW gearbox.
What sets us apart:
The lightweight aluminium flywheel has a replaceable cast iron friction surface, each unit is carefully checked and balanced before shipment
We use a measuring arm and a high-quality 3D scanner in the design process
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and gearbox
State-of-the-art CNC machinery and qualified staff.
Certified materials
Matching engines:
Audi 4.2 V8 ABZ
Matching gearboxes:
BMW ZF (ZF Friedrichshafen) M57N2 23.00 7522205 ZF GS6-53DZ HGD (THGD) 6-speed 1067 010 003 ZF 1067 401 060 1067401060 / 1067 401 016 1067401016 BMW OEM 23 00 7 522 205 / 23 00 7 565 218
BMW E60 525D 530D
BMW E60N 525D 530D
BMW E61 525D 530D
BMW E61N 525D 530D
BMW (ZF Friedrichshafen) M57N2 23.00 7565218 ZF GS6-53DZ JGA (TJGA) 6-speed 1067 010 013 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 426
Installation instructions
An adapter is required to connect the engine to the gearbox.
Use the flywheel/rim from the automatic version
Tighten the flywheel with the same torque as the OE.
