BMW E36 Lifestyle Lock Kit DXC

DXC Racing Angle Kit – precision, control, and ultimate drift potential

The DXC Racing angle kit is designed for drivers starting their drifting journey as well as experienced racers who value precise cornering and smooth control. A partially maintained trapezoidal geometry (Ackermann) with optimized parameters provides a confident steering return and superior handling, highly praised by our customers.

The refined geometry ensures fast, predictable transitions, helping drivers progress quickly behind the wheel. This is a complete Plug & Play kit that does not require eccentric bushings. For maximum performance, we recommend using adjustable camber plates and spring bearing top mounts.

Why choose this kit:

• Beginner- and intermediate-friendly geometry – full steering angle without fighting the wheel

• Angled ball joint mounts – increased durability and smoother movement

• Adjustable steering stops – eliminate wheel wobble at full lock and allow fitment for wide wheels

• Reduced unsprung weight – FEM analysis ensures strength and stiffness with lower mass

• Aerospace-grade aluminum – steel-like strength with one-third the weight

• Plug & Play – bolt-on installation, no cutting or welding required

• Installation time: approx. 2–4 hours

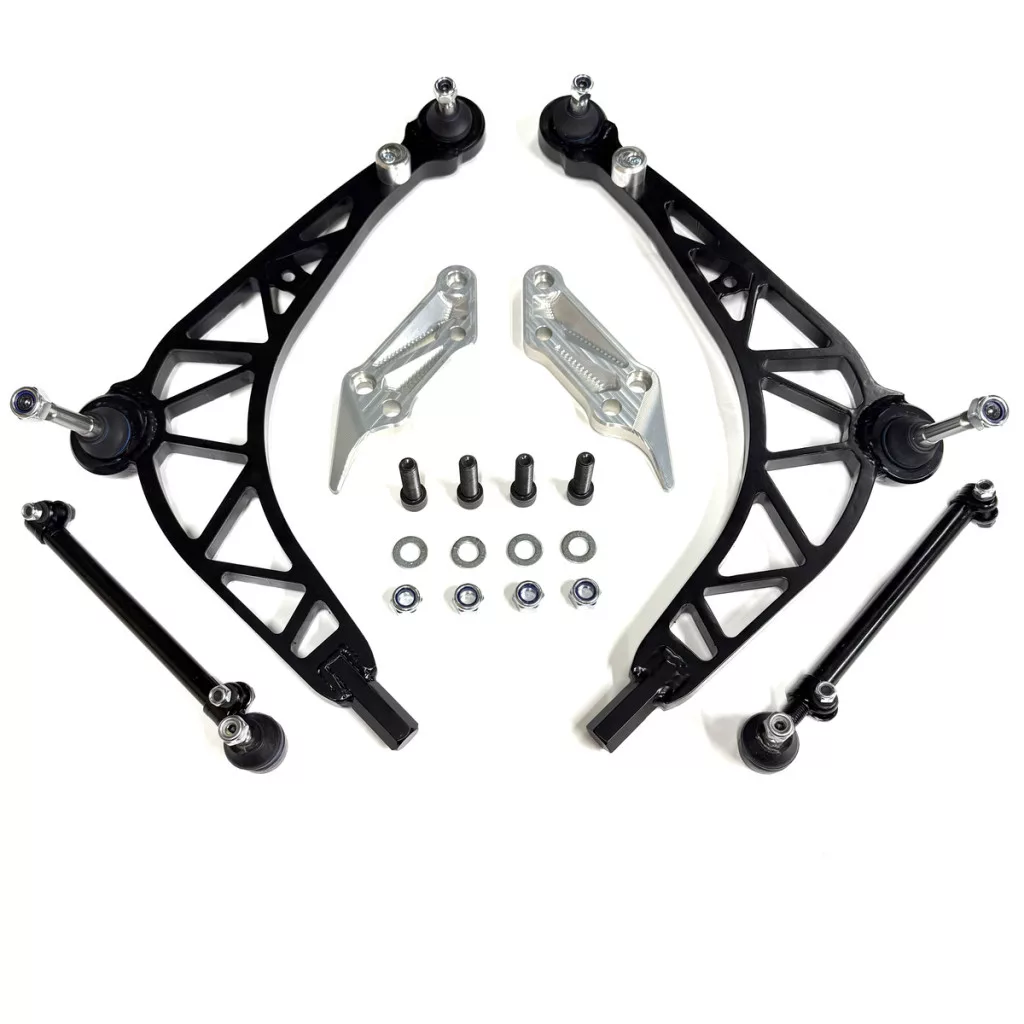

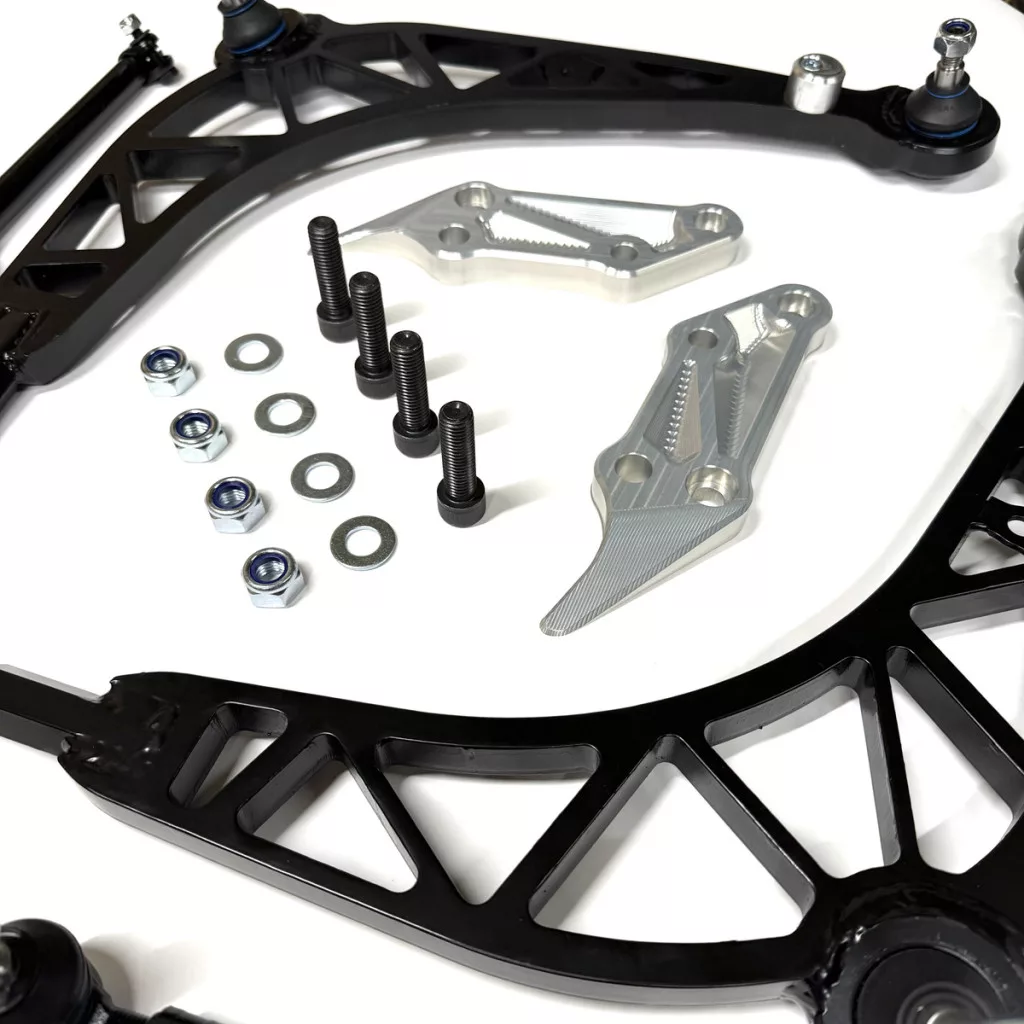

Kit contents:

• Powder-coated control arms with pre-installed ball joints

• Steering tie rods with rod ends

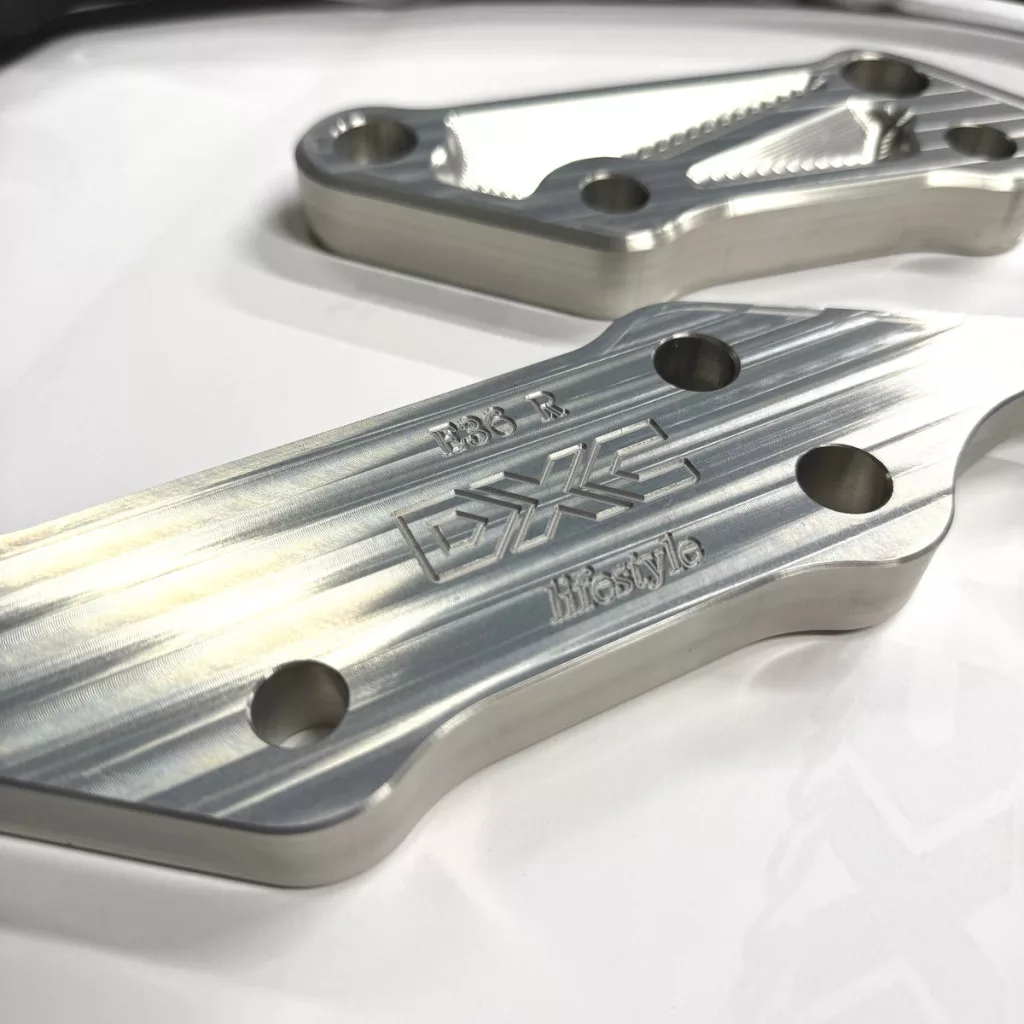

• Complete set of anodized adapters

• Adjustable steering stops

• Grade 12.9 mounting bolt set

• Installation manual and DXC Racing stickers

Technical specifications:

• Steering angle: 62° (+50% over stock)

• Stop adjustment range: 2°

• Roll center: +30 mm

• Track width increase: 63 mm per side

• Kit weight: 11.5 kg

Recommended alignment:

• Toe-out: 0.15° per side (≈5 mm)

• Camber: 4.5°–8° (maximum outer camber plate position)

• Caster: stock or +10 mm (moved rearward)

• Use centric bushings (OEM type recommended)

• Recommended wheel: 225/45/17 ET35 or lower

• Recommended extras: camber plates and spring bearing mounts

Important information:

• Sway bar links not included

• Not approved for road use

Why drivers choose DXC Racing:

• Proprietary design based on complete 3D suspension kinematic reconstruction

• Proven performance – used by podium-winning drivers across Europe

• Premium materials and top-level engineering precision

DXC Racing – Precision Engineered for Performance
