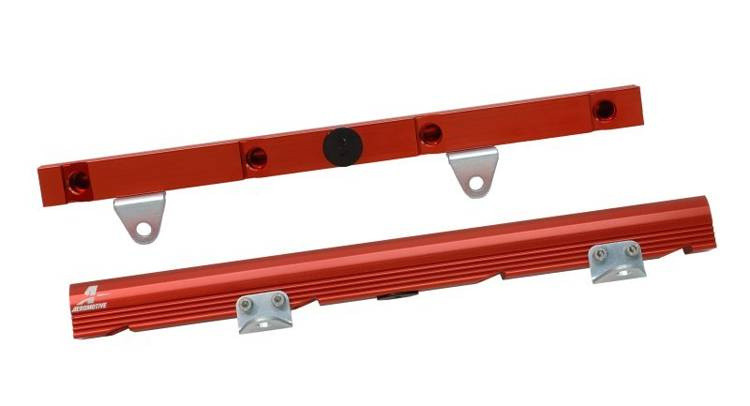

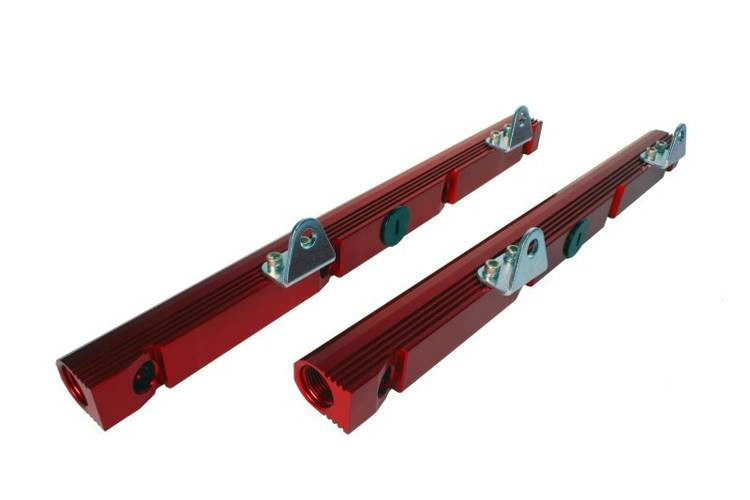

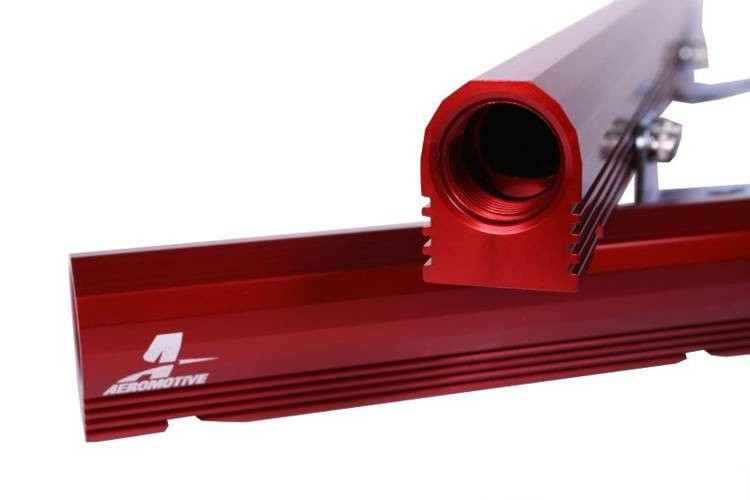

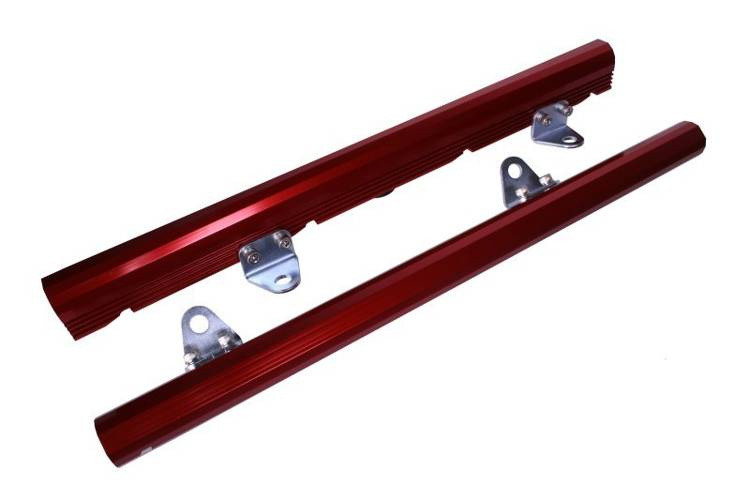

Aeromotive High Flow, Billet Fuel Rails combine 3,000 HP flow capabilities with 'bolt-on' ease of installation.
- GM 1997-2004 LS1 & 2001-2005 LS6 - Rails Only
- ORB-08 Ports with compact connections and positive, leak-free sealing.
- Full 5/8′ ID through bore, capable of supporting up to 3,000 HP.
- Fully compatible with -10 AN line if combined with custom ORB-08/AN-10 adapter AM-15641.
- Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation.
- Additional inlet/outlet ports are provided where required for plumbing convenience.
- CNC-machined, billet aluminum construction for unequaled fit and finish.
- Steel mounting brackets, custom engineered for each application, combining a solid, durable mounting platform with correct fit and 'bolt-on' ease of installation.
- Red, Type II bright dip anodized finish that looks great and protects against corrosion.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
