Basic fuel pump for EFI and carbureted applications. Must be used with a bypass regulator. Supports up to 500 HP naturally aspirated or 375 HP forced induction EFI. Good secondary pump, in 'series' with an in-tank fuel pump and mechanical FMU, increasing combined HP to 500 HP EFI Forced induction.

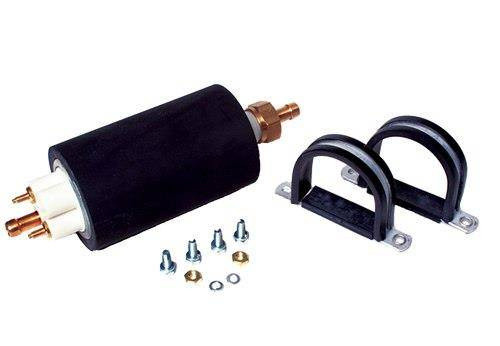

- Universal inline pump for external mounting.
- Submersible - custom installation required.
- Rated for continuous duty applications.

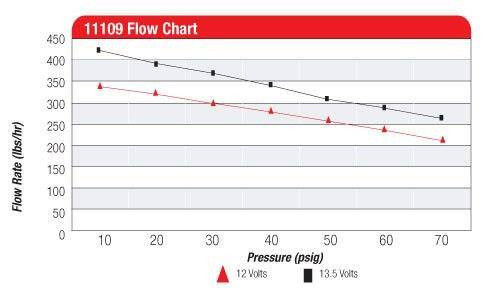

- Flows 325 lbs. per hour @ 13.5 Volts and 45 PSI.
- 5/16′ hose barb inlet and outlet are standard.
- Suitable for use in series with an in-tank pump along with an Aeromotive Digital FMU P/N 16303.
- Can be run stand-alone with AN-08 supply.
- Inlet fitting AN-08 P/N 15114 (sold separately)
- Outlet fitting AN-06 P/N 15635 (sold separately)
