The new Aeromotive Fuel Log incorporates features never before available. Each carburetor inlet features a ball and socket assembly that swivels +/-20 degrees, allowing additional clearance for throttle stops, nit rous plates and other accessories; then locks in place at the desired position. The telescoping log will fit 4150 or 4500 Dominator (AM-14201) and Demon (AM-14202) carburetors. The ORB-10 inlet and outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive AM-13212 (A2000 Bypass - gasoline) or AM-13214 (Double Adjustable Bypass - alcohol) fuel pressure regulators.
- Carburetor inlets swivel +/- 2 0º in all directions.
- Telescoping center line 7.700" to 13.450".
- ORB-10 inlet and outlet ports.
- (2) 1/8" NPT ports for gauges or pressure transducers.
- 1.056/.806" ID bore.
- Type II bright dip black anodized finish.

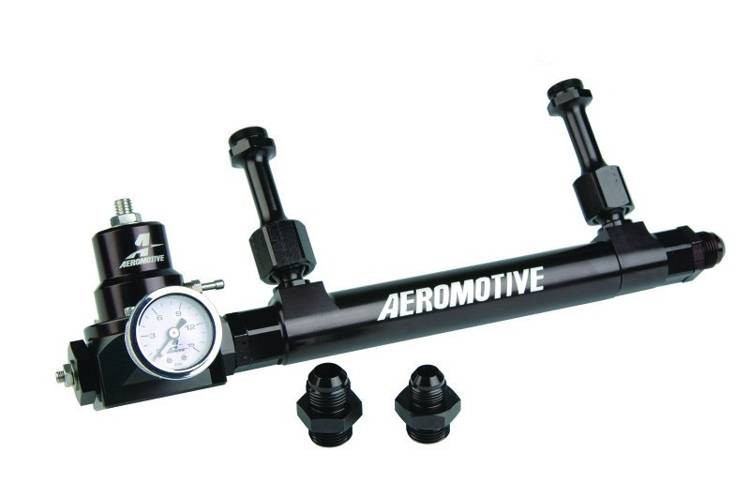

Includes 14202 Dual Action Adjustable Fuel Log, 13212 A2000 Bypass Regulator and 15632 Fuel Pressure Gauge.
For Demon Style Float Bowls (9/16 x 24 Thread).
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
