PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set) Supra JZA70 JZA80 MKIII MKIV JZ 1JZ 2JZ - BMW ZF 8HP 8HP70 8HP50

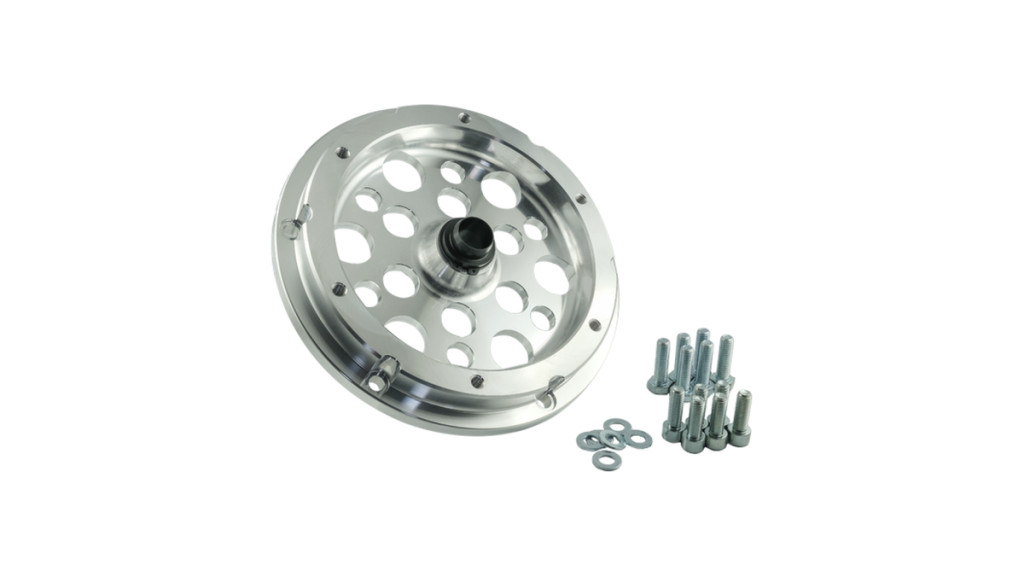

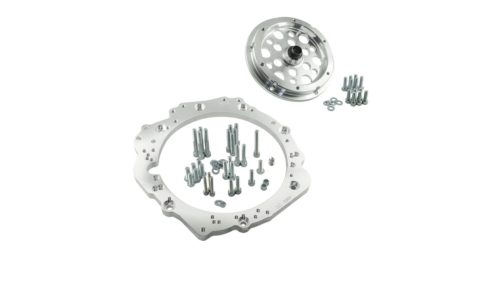

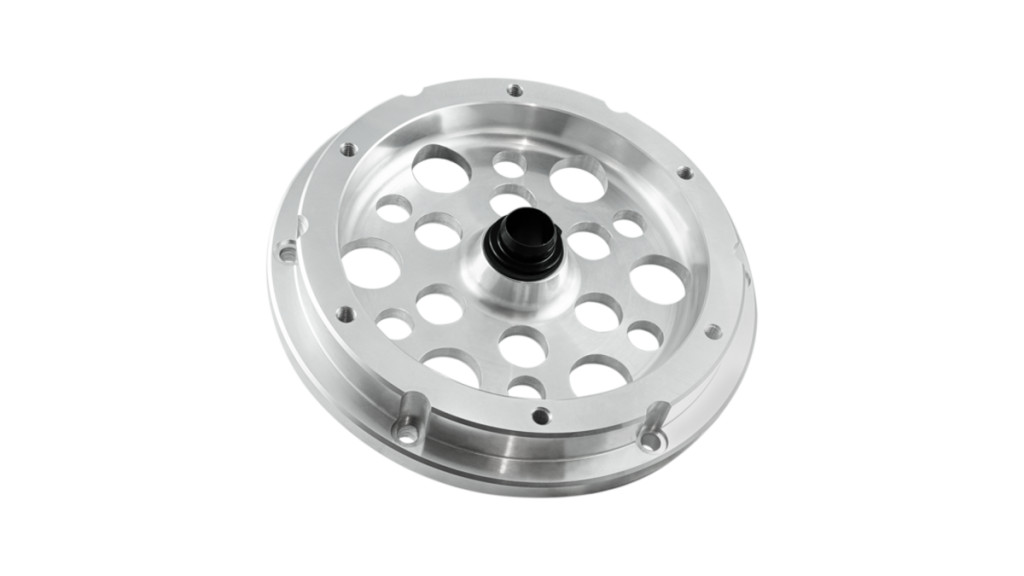

The adapter kit enables users connection of Toyota JZ 1JZ 2JZ engine series with BMW ZF 8HP gearbox.
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
Engine list: | - Toyota 1JZ (non VVT-i / VVT-i version)
- Toyota 1JZ-FSE
- Toyota 1JZ-GE
- Toyota 1JZ-GTE
- Toyota 2JZ (non VVT-i / VVT-i version)
- Toyota 2JZ-FSE
- Toyota 2JZ-GE
- Toyota 2JZ-GTE
|
Gearbox list: | - BMW ZF (ZF Friedrichshafen) 8HP
- BMW ZF 8HP 8HP70 BMW N57 / N57N 8-speed
- BMW ZF 8HP 8HP50 Z / 8HP50Z BMW B58 8-speed
|

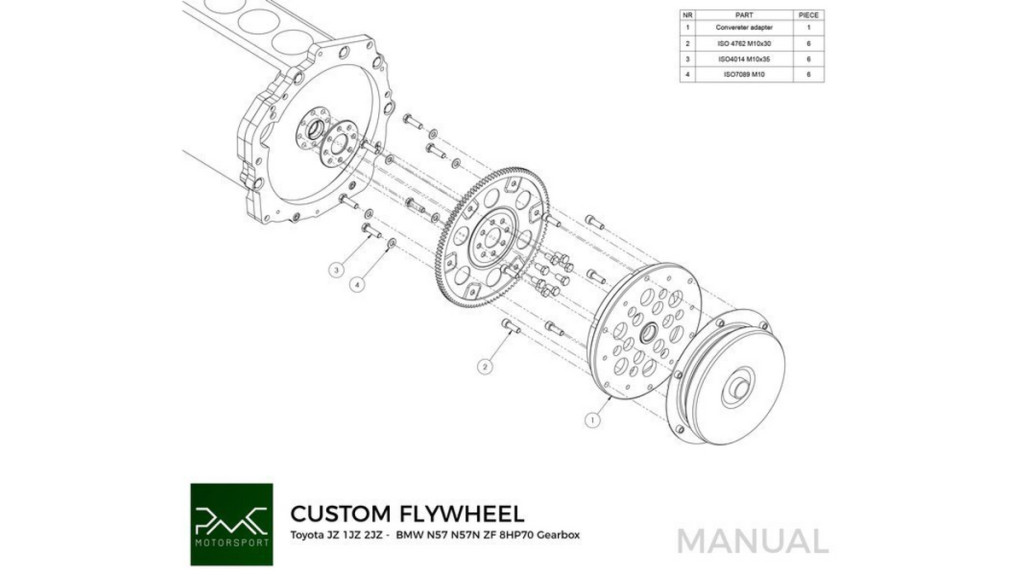

Manual
- Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
- Tighten the flywheel to the same torque as OE.
- Use torque converter from BMW N57 N57N
