Our offer now includes a new adapter model that replaced this version. We invite you to familiarize yourself with the offer:

Multi-gearbox transfer case adapter (iodshop.pl)

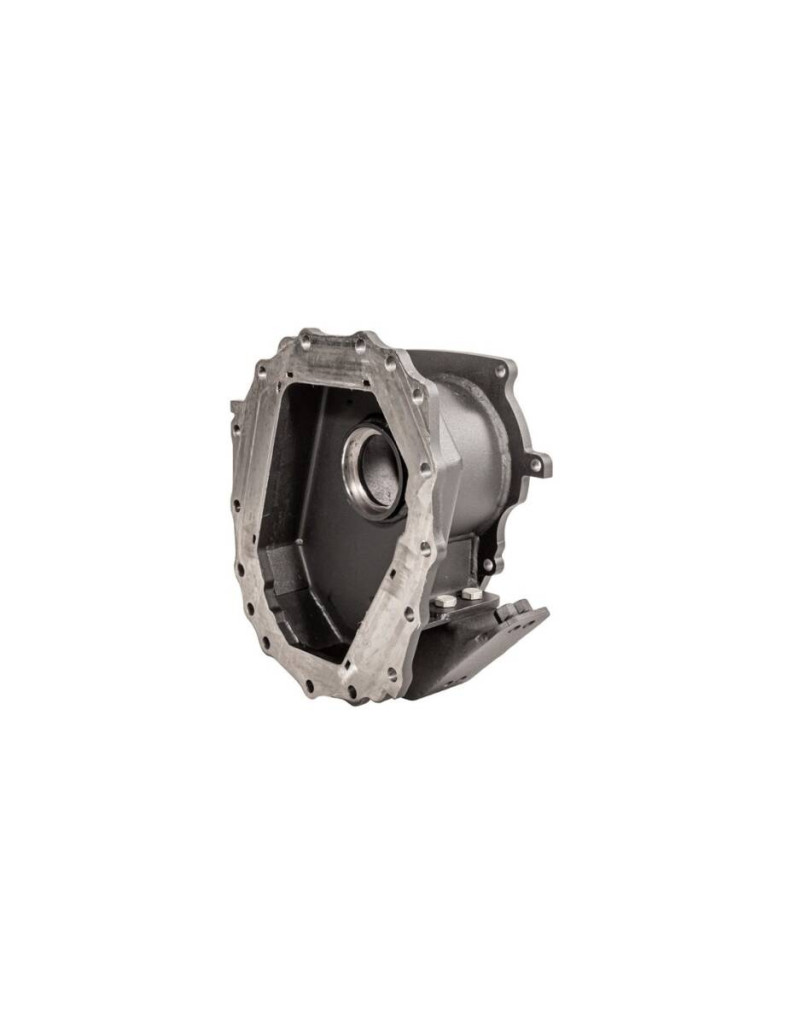

Adapter BMW 8HP70X - Patrol transfer

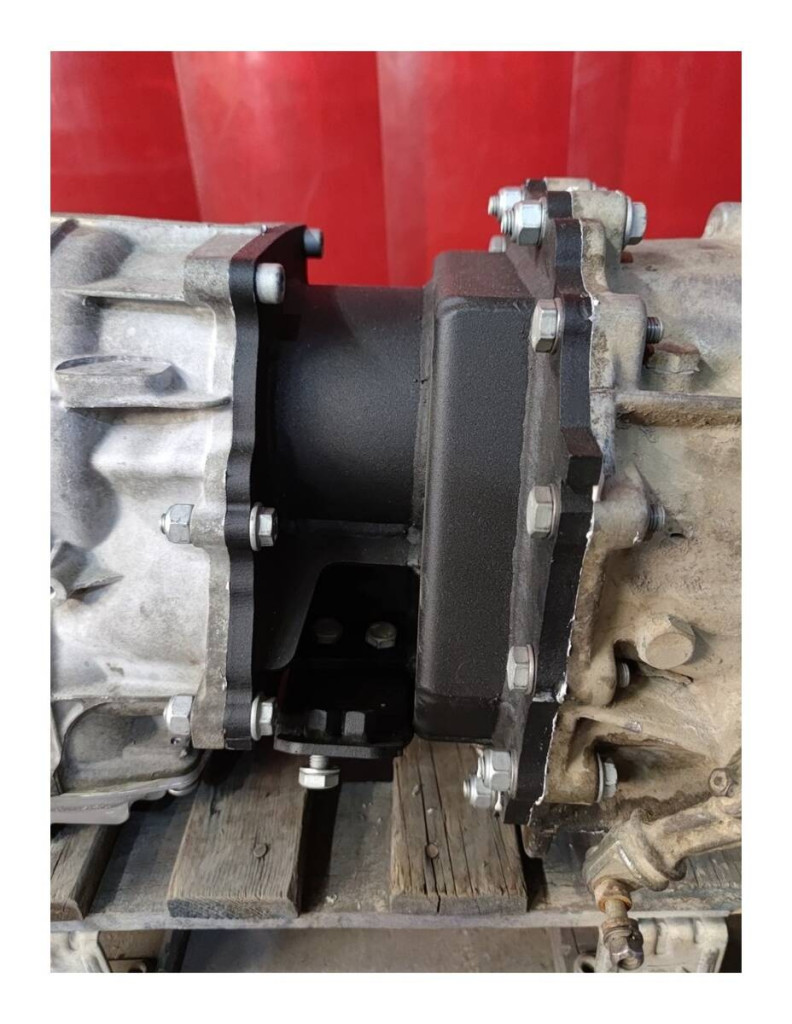

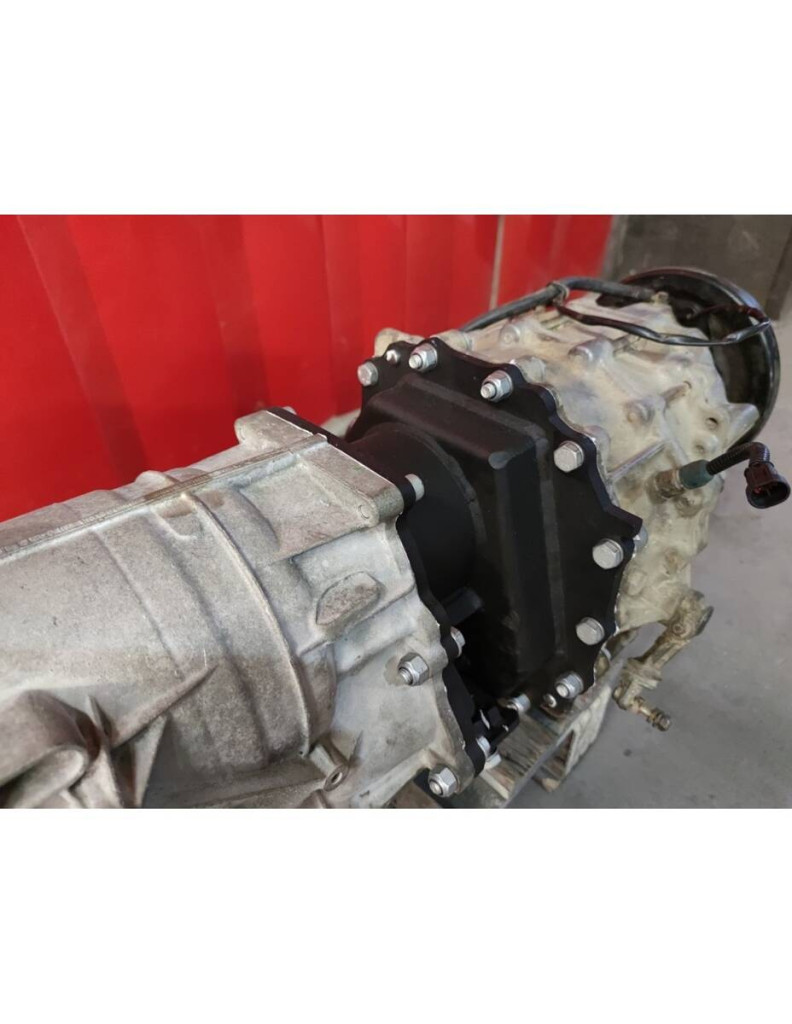

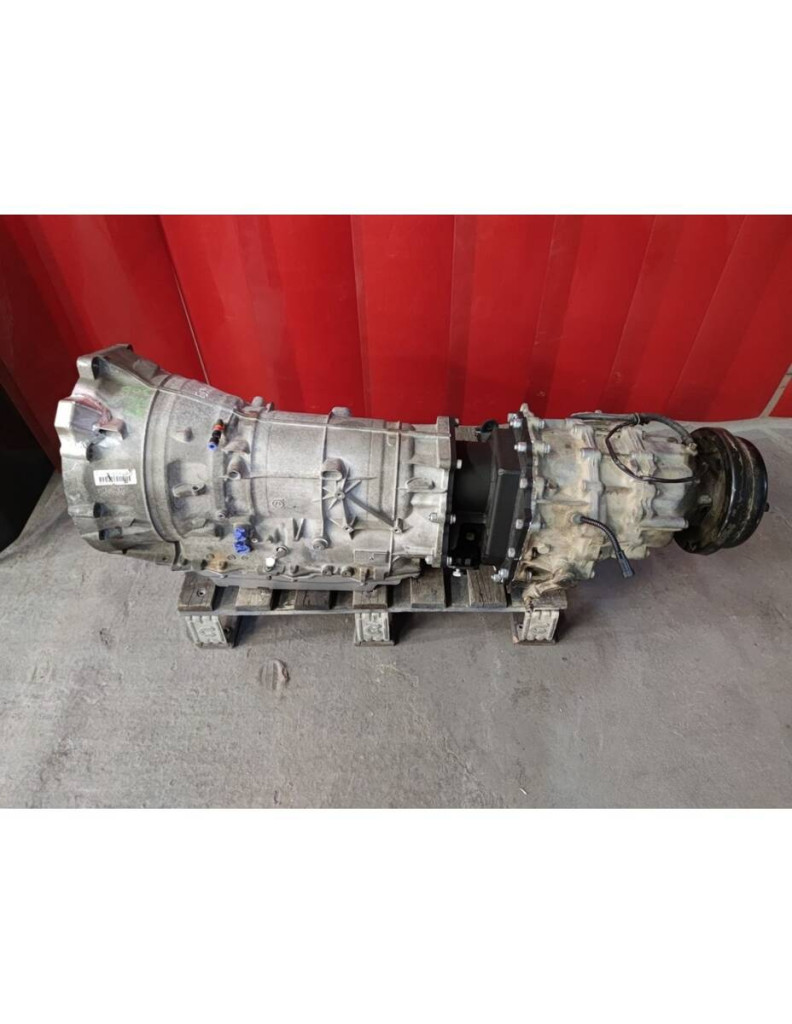

A complete mounting kit that allows you to easily and quickly connect the BMW 8HP70X gearbox to the Nissan Patrol reducer during engine conversion.

Advantages of the solution:

Installation using the original beam from the 3.0 engine version and the Nissan Patrol gearbox cushions or the beam produced by IOD
Connecting shaft made of high-quality heat-treated chrome-molybdenum steel
Low weight of the complete set BMW gearbox + adapter + NISSAN reducer
Easy assembly and disassembly due to the size and low weight of the gearbox
The eight-speed automatic gearbox allows it to be driven in the most efficient range of engine revolutions
The adapter is installed without the need to modify the inside of the reducer.
Depending on the used suspension kit and its appropriate adjustment, there may be a need to change the length of the drive shafts. The reducer is moved rearward by 25mm from its original position.

It is possible to install the adapter and the engine in our service.

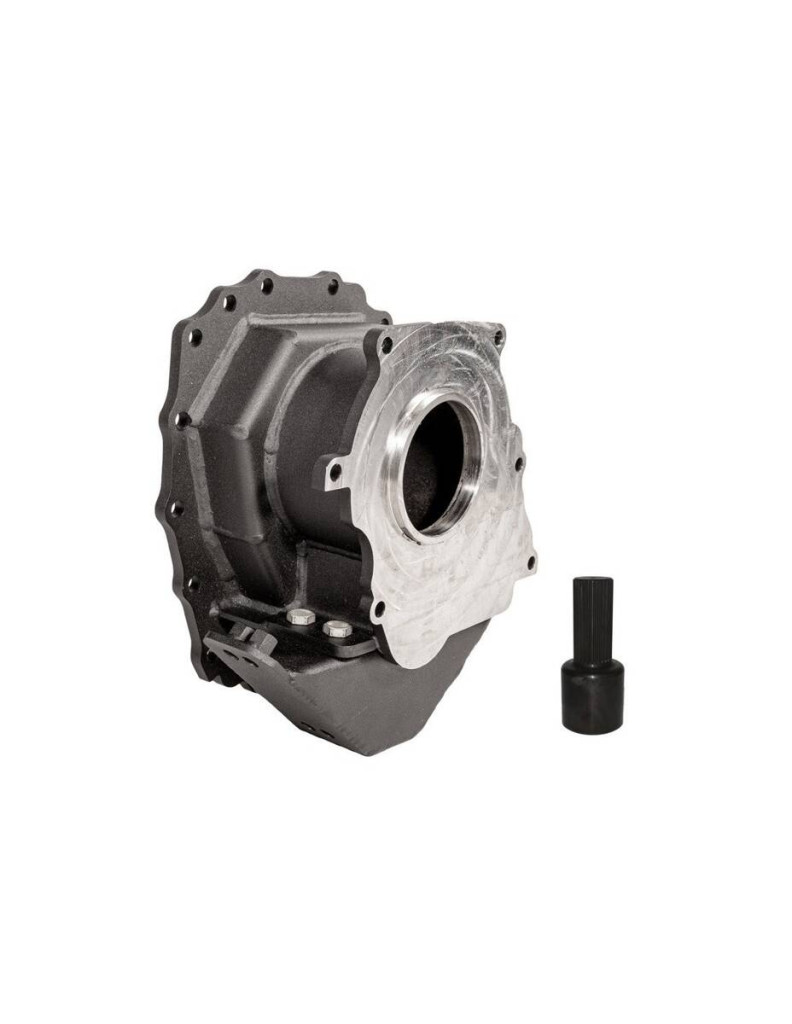

Set contains:

adapter
connecting shaft
connecting shaft seal
set of mounting screws.
