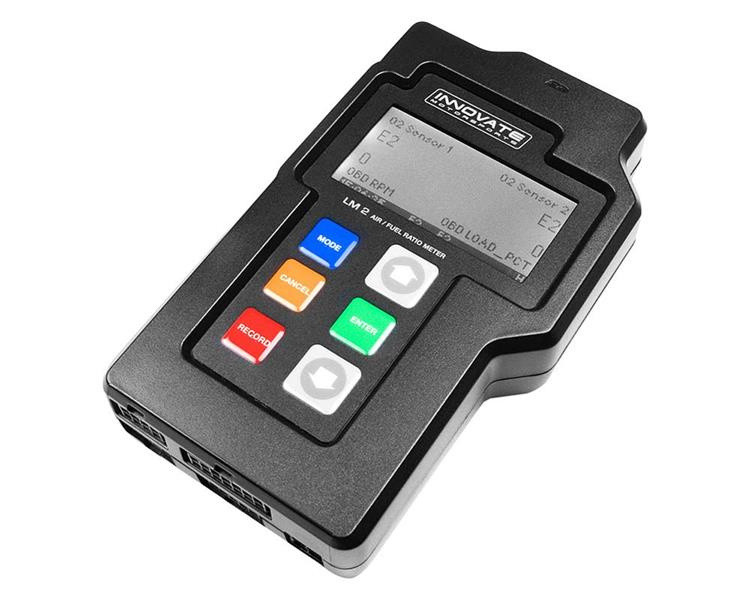

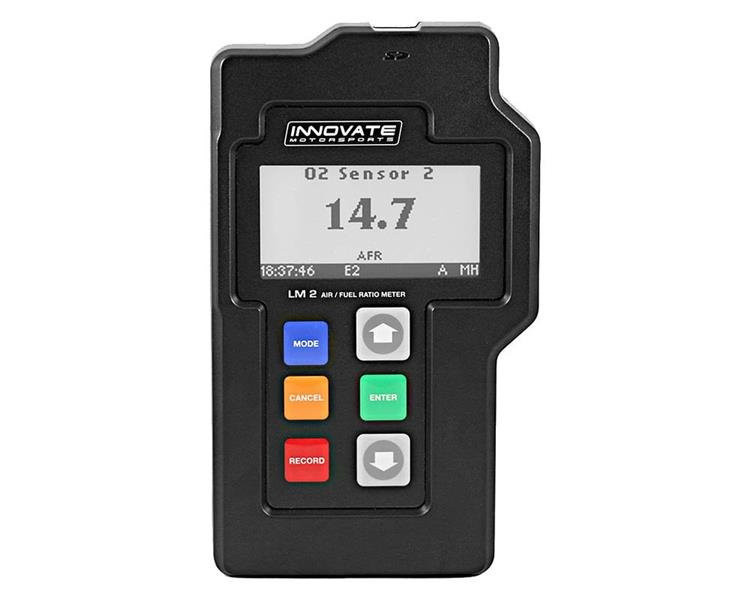

AFR Innovate LM-2 OBD-II/CAN Scan Tool LSU 4.9

Innovate 3806 LM-2 32-channel datalogger with software with huge possibilities thanks to which it is a complete tool necessary for tuning engines (both high performance and e.g. gas tuning).

Displays the composition of the mixture based on the digital signals coming from the probe.

Parameters:

• Read and record up to 16 channels from the OBD connector
• Reading and clearing errors via the OBD connector
• Log in to the SD card
• Playing back recorded data on the device or laptop.
• Built-in input for engine revs reading.
• 4 analog inputs.
• Fully digital controller.
• The fastest response time on the market.
• Cooperation: Broadband probe Bosch or NTK
• Fuels: most fuels - gasoline, CNG, methanol, ethanol and others.
• Measuring range: 7.35 - 22.4 AFR
• Accuracy: 0.1 AFR
• 2 0-5V outputs freely configurable.
• USB laptop output
• Free LogWorks 3 program

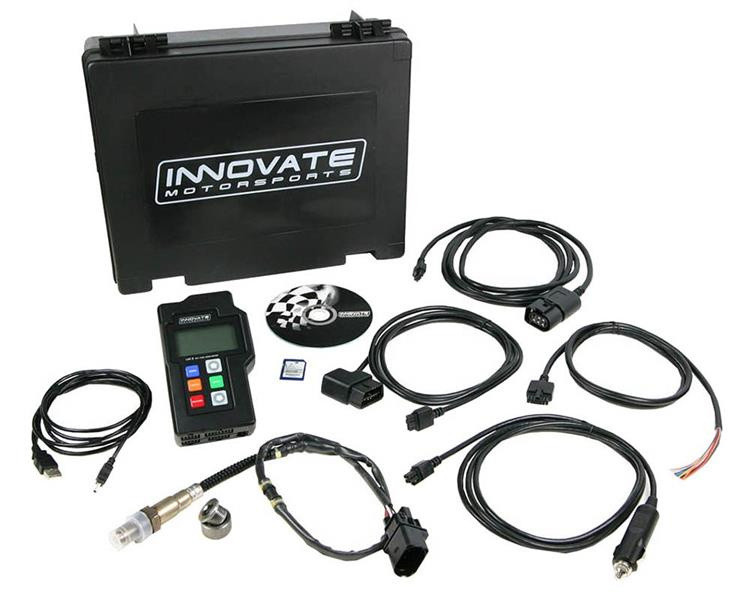

Included:

• LM-2 device
• Lambda probe
• computer connection cables
• cables for connecting to the OBD socket
• SD memory card
• Welding sleeve with thread and end cap

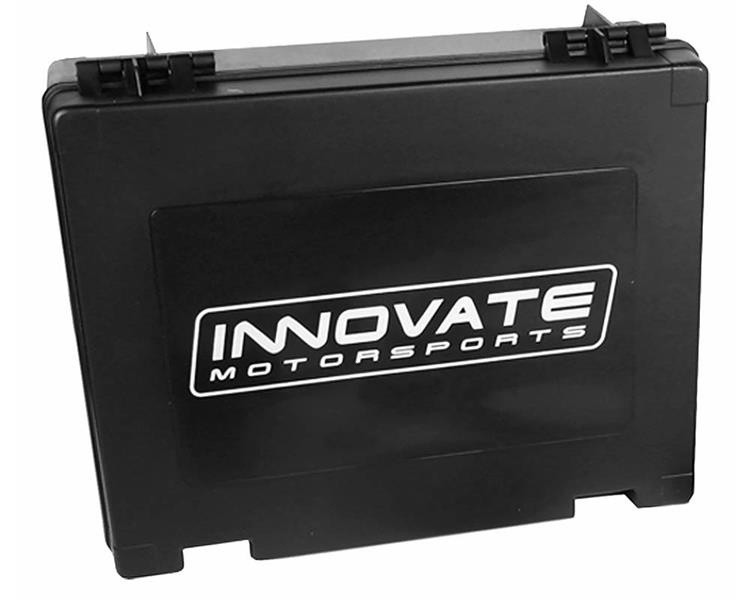

• device case
• CD software
• user manual

Warning! The probe is not covered by the warranty.
