Reference: 276257B
Product name: Full suspension polyurethane bush kit
Fits to:
- Subaru Levorg (14-20) VM
- Subaru WRX STI (14-22) VA

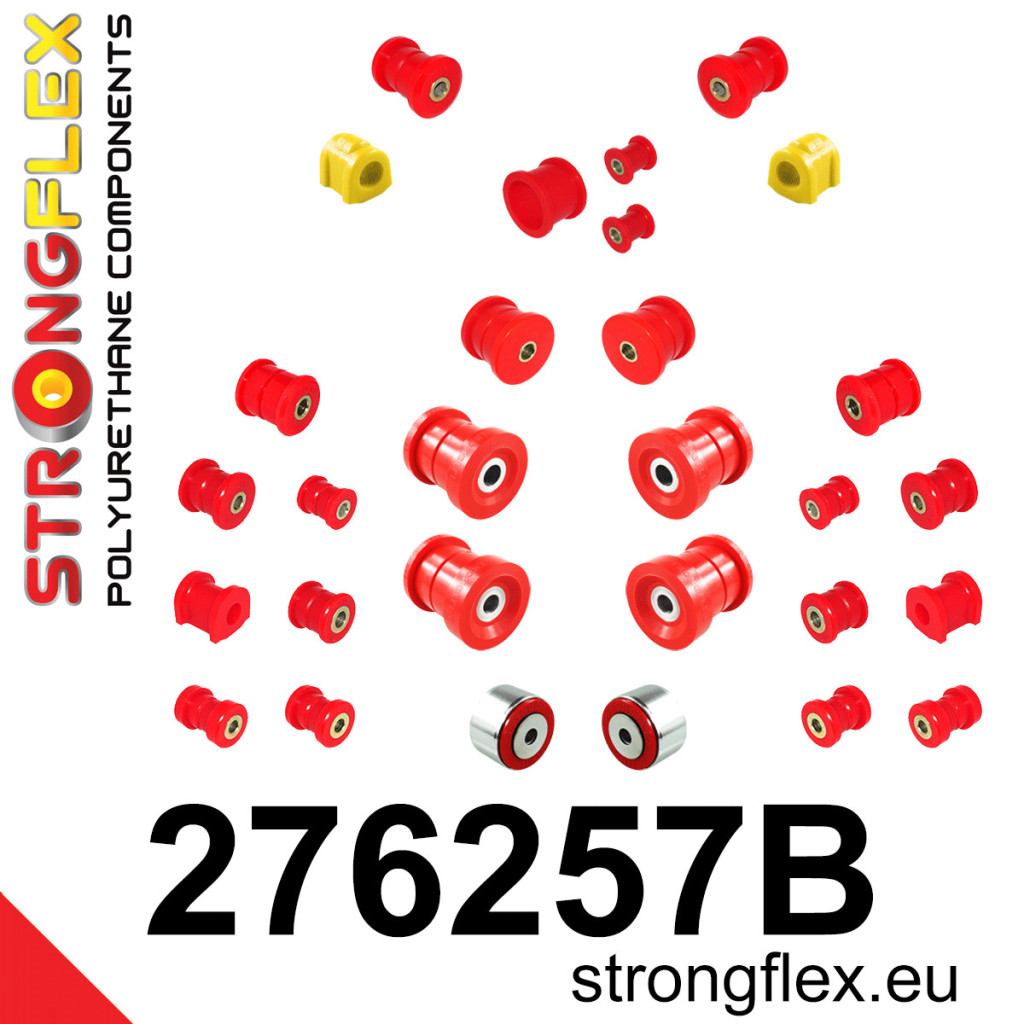

Include:
- 2x 271529B: Front arm front bush
- 2x 271922A: Front anti roll bar bush SPORT
- 2x 271698B: Rear trailing arm front bush
- 2x 271611B: Rear trailing arm rear bush
- 2x 271612B: Rear toe adjuster inner bush
- 2x 271613B: Rear lower track control inner bush
- 2x 271614B: Rear upper arm front bush
- 2x 271615B: Rear upper arm rear bush
- 2x 271616B: Rear anti roll bar bush
- 2x 271541B: Rear diff front mounting bush
- 2x 271923B: Rear subframe – front bush
- 2x 271924B: Rear subframe – rear bush
- 2x 271925B: Rear differential – rear bush
- 0/1x 271620B: Steering rack mount bush
- 0/2x 271621B: Steering rack mount bush

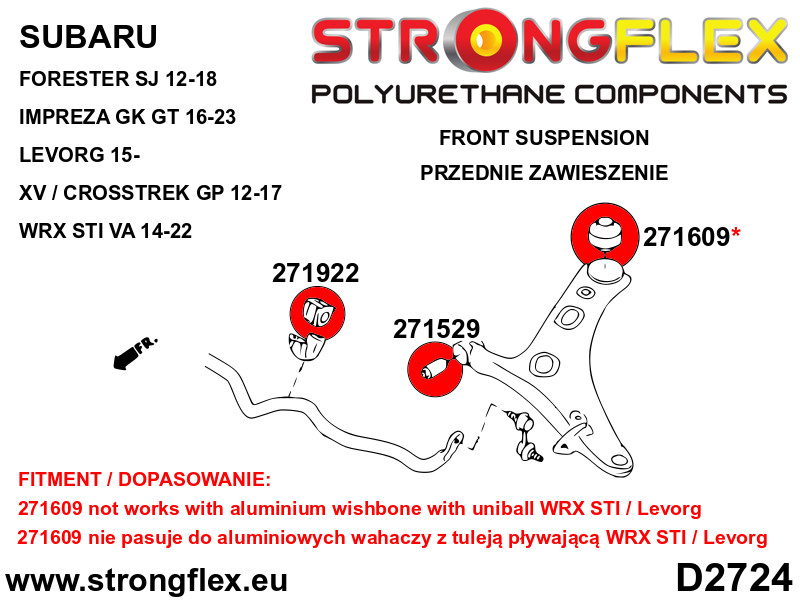

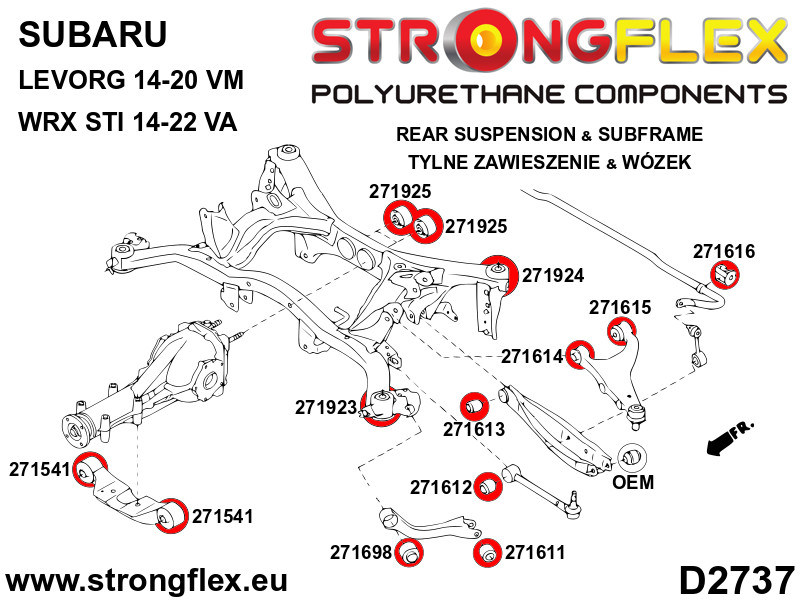

Diagrams:
Notes

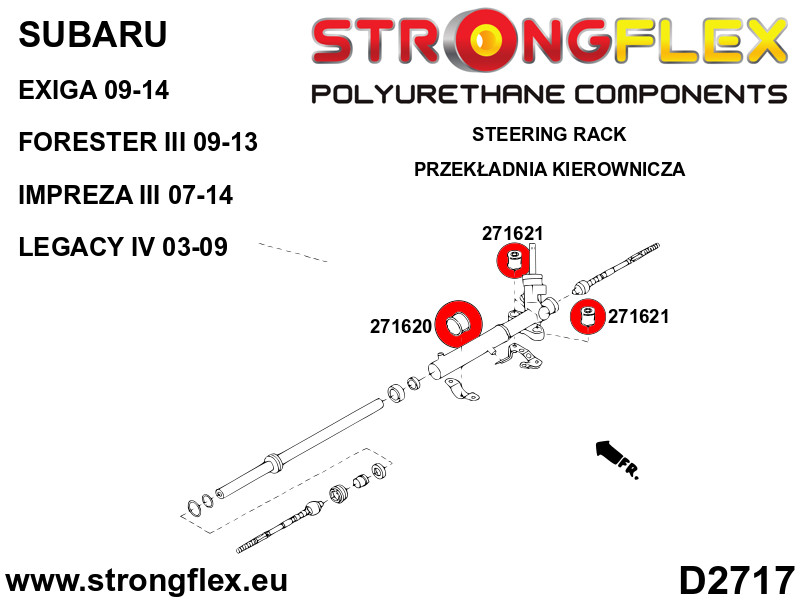

- Steering gear bushings:
Bushings 271620 and 271621 fit hydraulic steering gear only. They do not fit electric steering gear.
- For bushes 271923 and 271924:
During assembly, original metal washers must be used between the polyurethane bushes and the chassis.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 26/29
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
