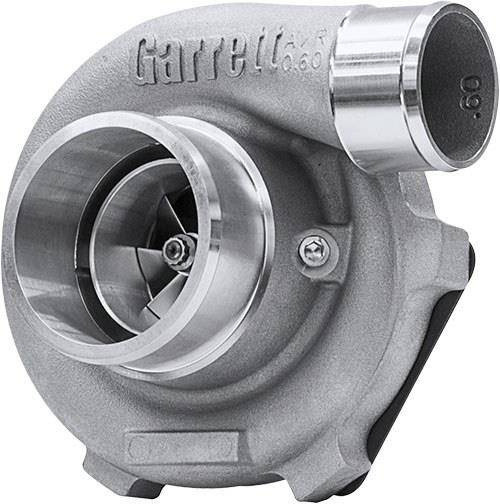

Sport dedicated turbocharger, Garrett GTX2867R GEN II.
About Garrett® GTX Series Turbochargers
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
Application :
- Power: 275 - 550HP
- Displacement: 1.4L - 2.5L
Features:
GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
NEW FULLY MACHINED SPEED SENSOR PORT.
SOLD AS ASSEMBLY KITS (SUPER CORE + TURBINE HSG)
Table:
| | Compressor | Turbine |
|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
|---|
| GTX2867R | 50mm | 67mm | 55 | 0.60 | 54mm | 47mm | 76 |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
|---|
| Assembly Kit PN Includes Super Core and Turbine Kit | 856800-5007S | 849894-5002S | 827690-0003 | 0.64 | T25 | 5 bolt | Wastegated | N |
| 856800-5008S | 849894-5002S | 827690-0004 | 0.86 | T25 | 5 bolt | Wastegated | N |
| 856800-5005S | 849894-5002S | 827690-0001 | 0.57 | V-Band | V-Band | Free Float | N |
| 856800-5006S | 849894-5002S | 827690-0002 | 0.72 | V-Band | V-Band | Free Float | N |

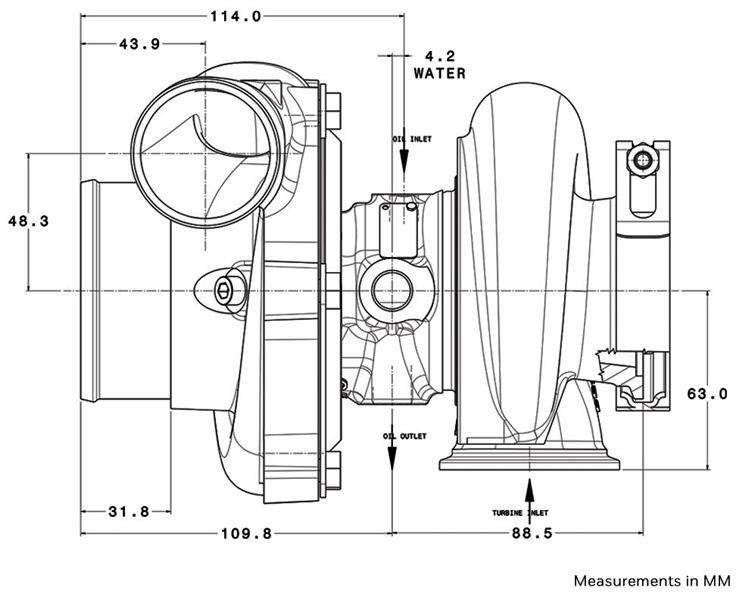

Dimension:
Graph:
