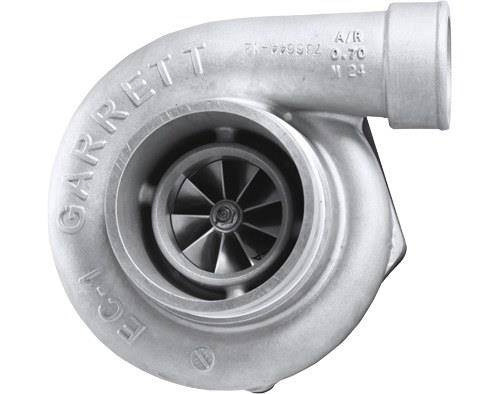

Sport dedicated turbocharger, Garrett GTW3884.
About Garrett® GTW Series Turbochargers
Garrett® GTW Series Turbochargers were designed to provide budget-minded enthusiasts with a high-performing mid frame product offering available in ball bearing and journal bearing options.
The fully-machined billet aluminum compressor wheels provide optimal horsepower range and boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A lightweight aluminum backplate comes standard on all GTW turbochargers and reduces overall weight.
The water cooled CHRA keeps housing temperatures to a minimum. The GTW3476 and GTW3884 turbine wheels are constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. The GTW is a cost effective option for enthusiasts looking to turbocharge their vehicles.
Application :
- Power: 450 - 950HP
- Displacement: 2.0L - 6.0L
Features:
PORTED SHROUD DESIGN FOR SURGE RESISTANCE
AVAILABLE IN BOTH JOURNAL BEARING AND BALL BEARING OPTIONS
FORGED FULLY-MACHINED BILLET COMPRESSOR WHEEL
INCONEL SUPER-ALLOY TURBINE WHEEL
LIGHTWEIGHT ALUMINUM BACKPLATE
Table:
| Super Core Reference Data | Compressor | Turbine |
|---|
| Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
|---|
| 841297-5003S | 715582-0008 | 62mm | 84mm | 54 | 0.70 | 74mm | 65mm | 76 |
| 841297-5004S | 715582-0009 | 64mm | 84mm | 58 | 0.70 | 74mm | 65mm | 76 |
| 841297-5005S | 715582-0010 | 67mm | 84mm | 64 | 0.70 | 74mm | 65mm | 76 |
| | | | | | | | |
| | | | | | | | |
| | | | | | | |
|
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim |
|---|
| Super Core and Turbine Kit Sold Separately | 844669-0009 | 0.96 | T4 | V-Band | Free Float | N | 76 |
| 844669-0010 | 1.14 | T4 | V-Band | Free Float | N | 76 |
*841297 Journal Bearing Option
*841691 Water Cooled CHRA

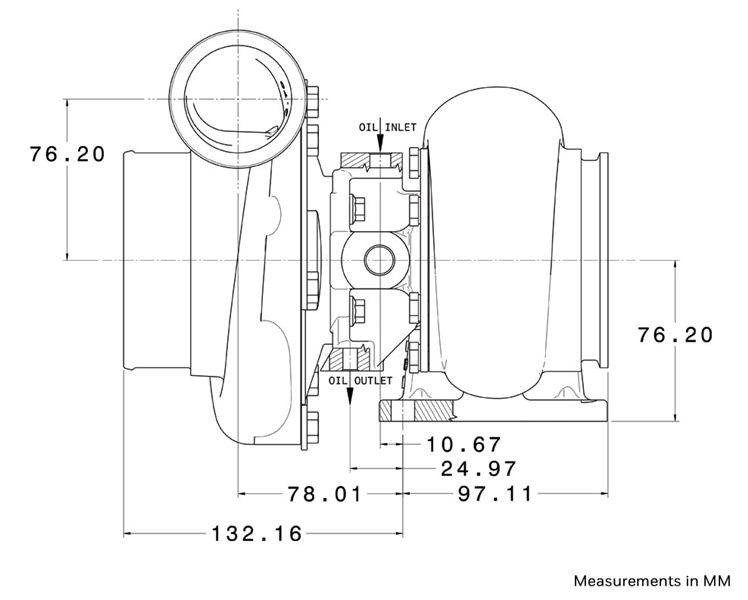

Dimension:
Graph:
