We offer adapter brackets for additional calipers for BMW E36 series cars with disc brakes on the rear axle. The set consists of two adapters – for the left and right side. Our product allows for connecting a hydraulic handbrake to an additional caliper and RETAINING the ABS sensor.
In case of doubts regarding product compatibility and the components you want to install using our adapter, please feel free to ask.
The adapter requires welding to the control arm in the place where the ABS sensor is originally located. To weld it, the sensor must be removed. Adapter must be positioned and welded with the bracket, caliper and disc mounted. This must be done methodically. After welding, everything must be disassembled and a space must be cut out for the sensor, which is installed rotated by 90° (as shown in the photo). There is no need to screw it in – the installed bracket will gently press it, preventing it from falling out.

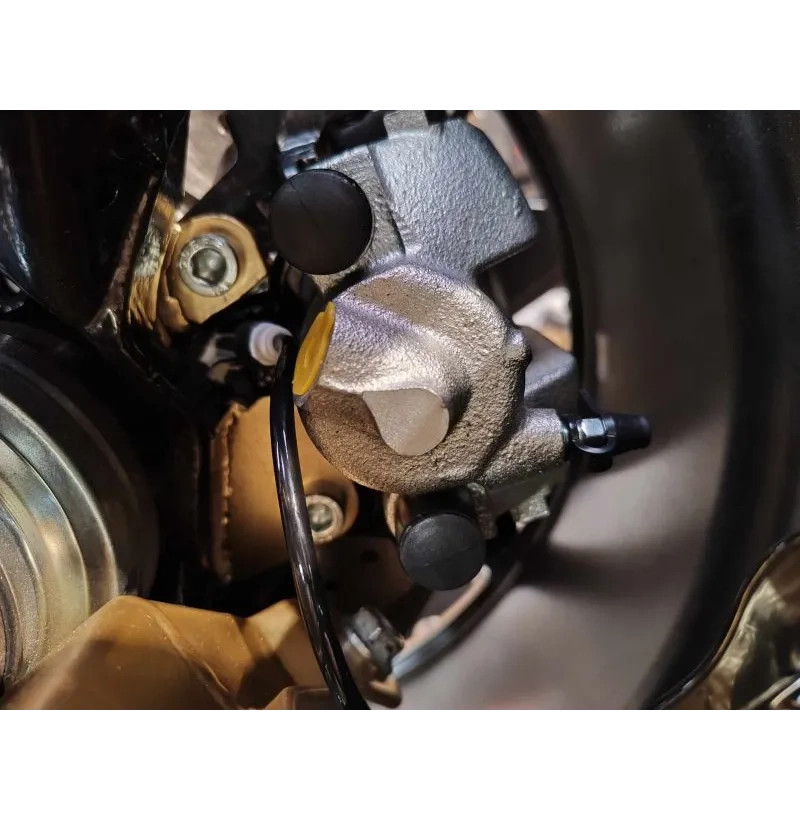

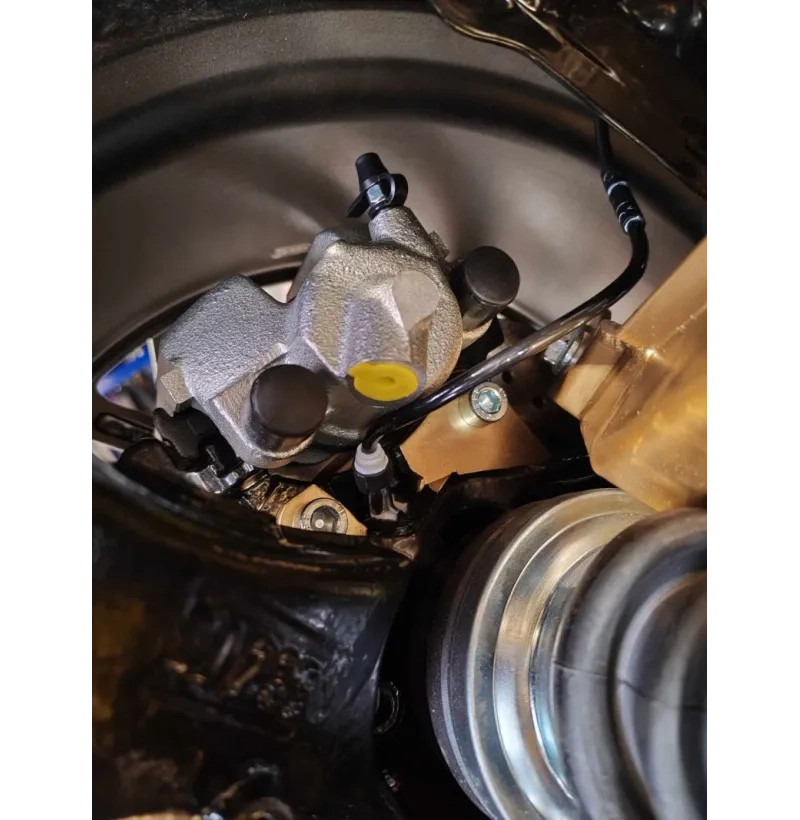

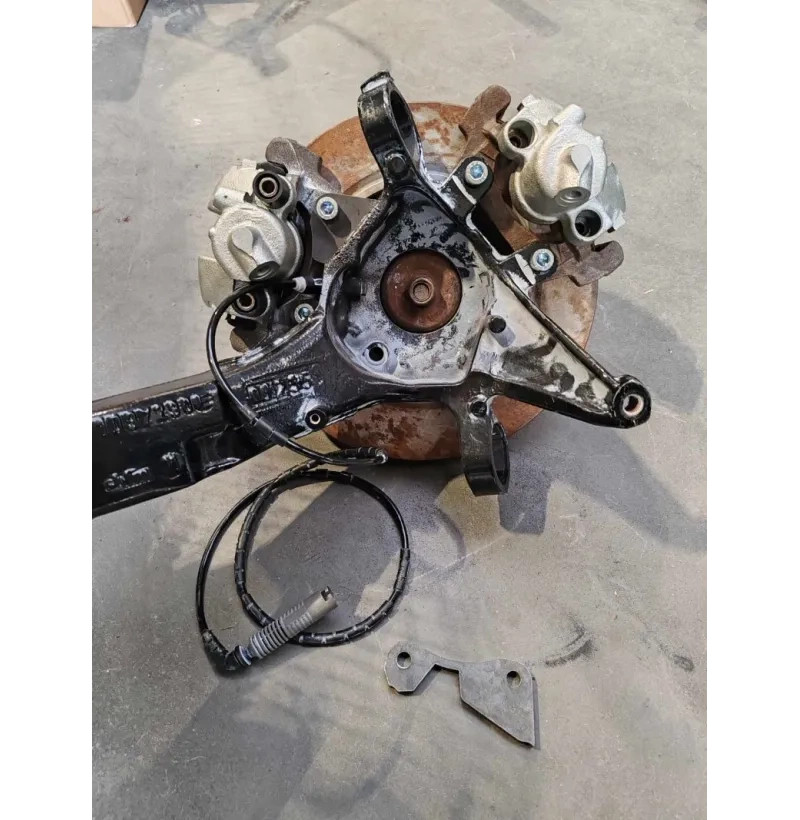

EXAMPLE PHOTOS WERE TAKEN ON A BMW E46, but it is a twin design and the same mounting principle applies.
Our product is made in POLAND.

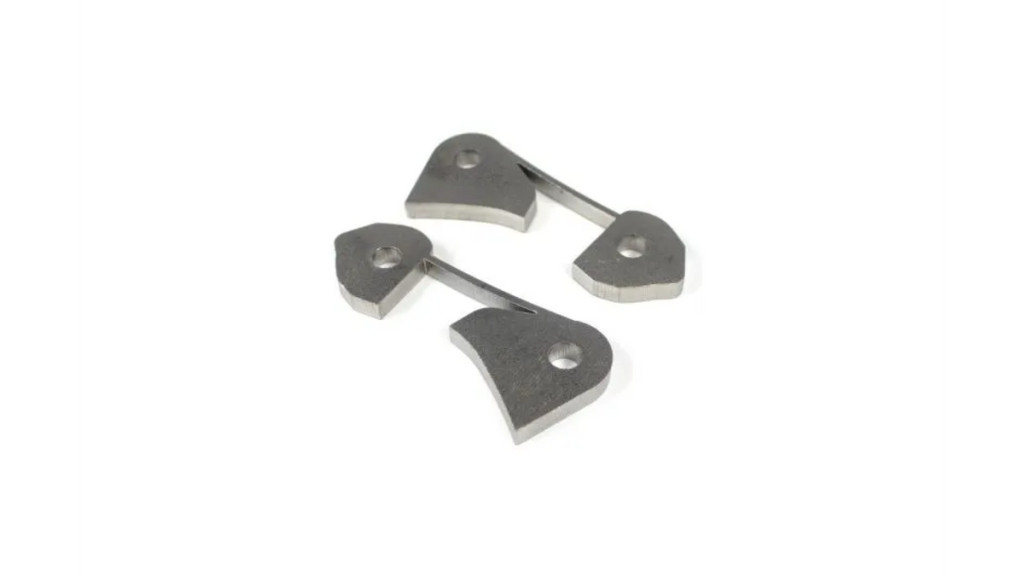

The adapters are laser-cut professionally and made of high-quality shot-blasted steel (S355), 8mm thick.
