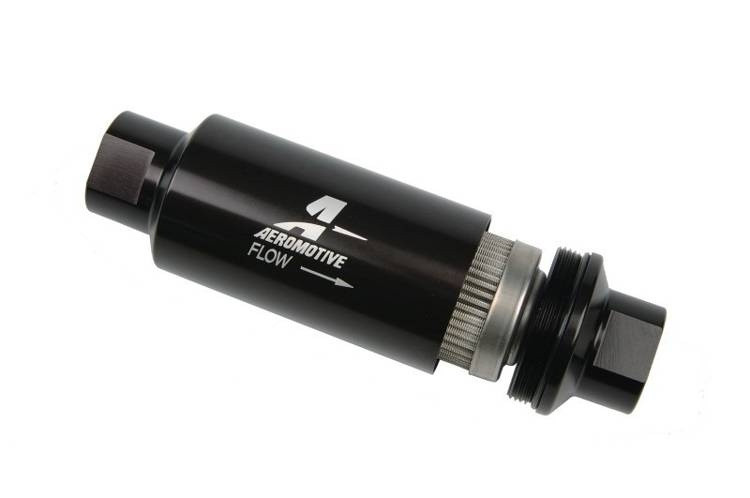

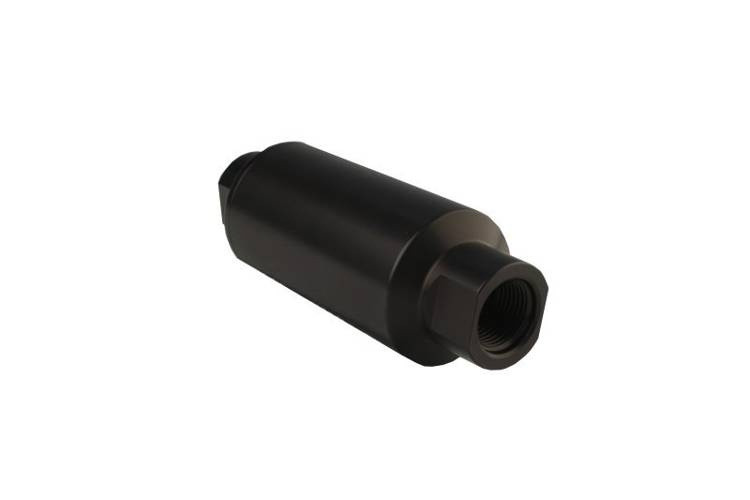

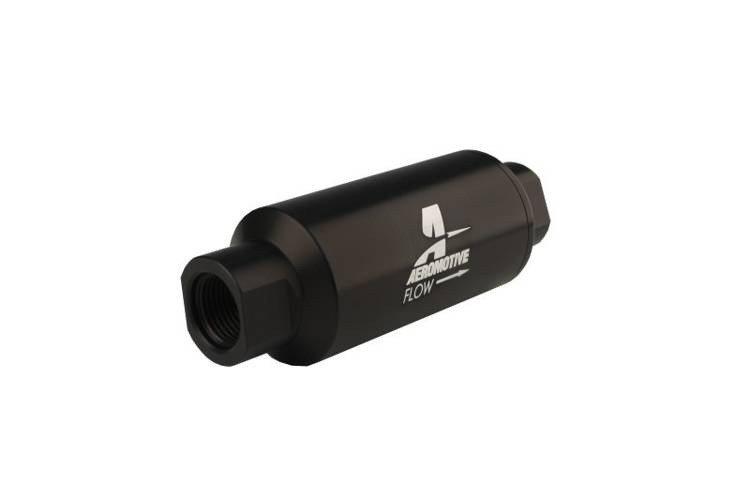

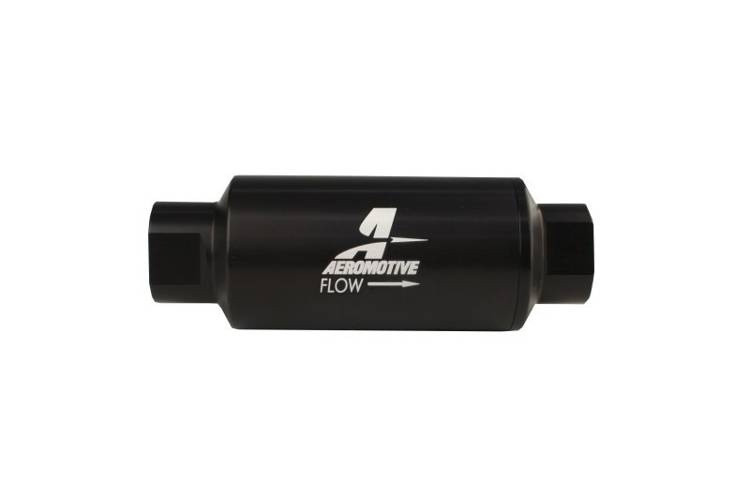

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
- High-flow, 100-micron stainless steel (coarse) cleanable element.
- Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.
- ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. (see Fittings & Adapters)
- Compact size: 5.5′ long x 2′ diameter For additional information on this product, see Filter p/n: 12304
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
