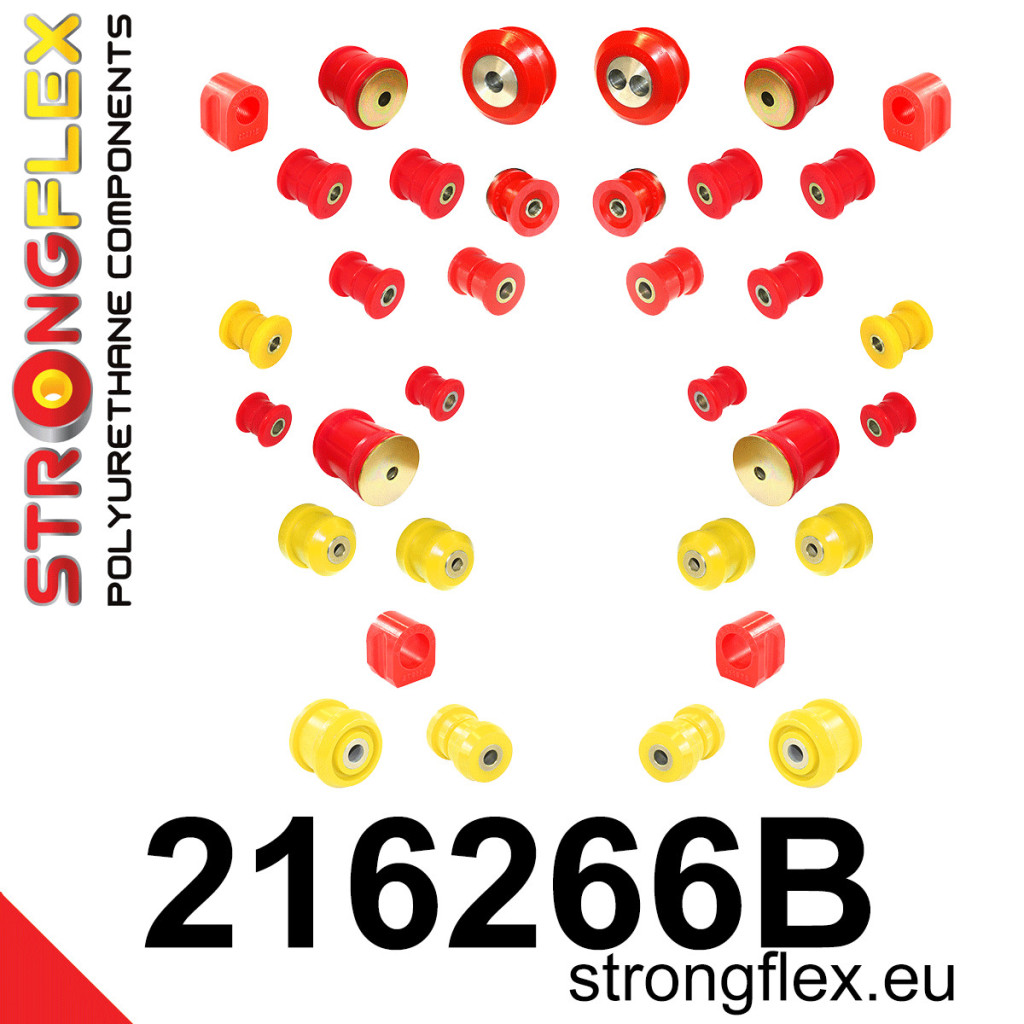

Reference: 216266B
Product name: Full suspension bush kit
Fits to:
- Toyota Aristo I (91-97)
- Lexus GS I (91-97)
Include:
- 2x 211977A: Front lower arm bush SPORT
- 2x 211978A: Front lower radius arm to chassis bush SPORT
- 2x 211979B: Front anti roll bar bush
- 4x 211912A: Front upper arm bush SPORT
- 2x 211924B: Rear toe adjuster bush 35mm
or
- 2x 211628B: Rear toe adjuster bush 40mm
- 2x 211629B: Rear trailing arm rear bush
- 2x 211630B: Rear track control arm inner bush
- 2x 211632A: Rear track control arm outer bush 40,5mm SPORT
- 2x 211694B: Rear trailing arm front bush 46mm
- 4x 211633B: Rear upper wishbone bush
- 2x 211923B: Rear anti roll bar bush
- 2x 211792B: Rear beam - front bush
- 2x 211793B: Rear subframe - rear bush
- 2x 211794B: Rear diff mount - front bush
- 1x 211795B: Rear diff mount - rear bush
- 1x 211796B: Rear diff mount - rear bush

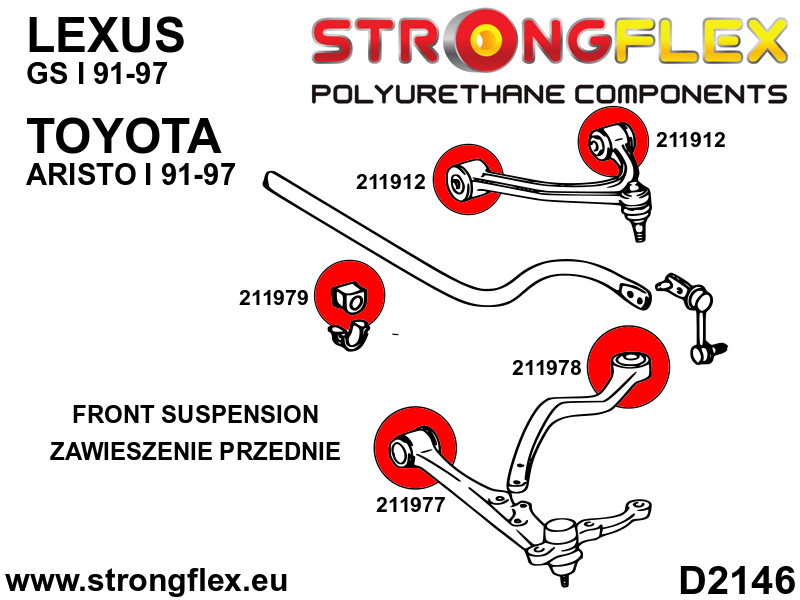

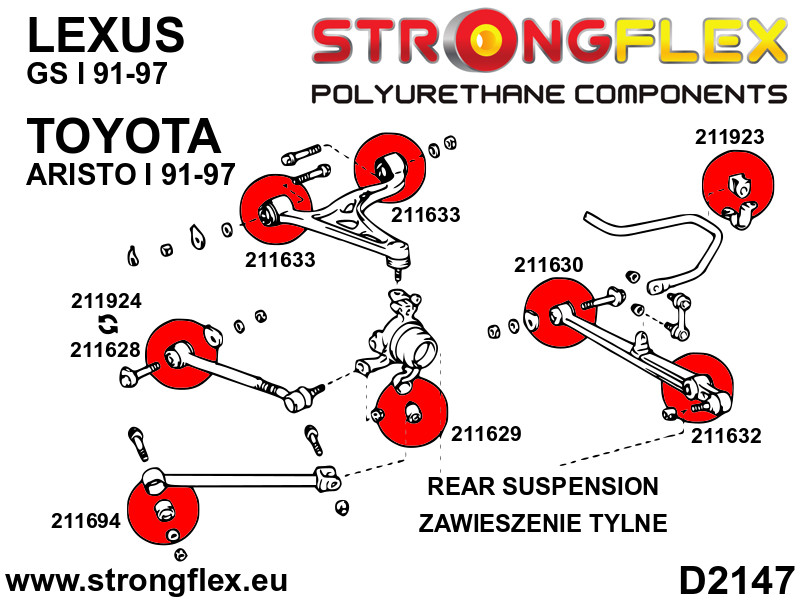

Diagrams:
ATTENTION!
If you have a model produced from 1993 to 1995, choose rear tie rod bushings 211628 (diameter 40mm).
If you have a model produced from 1996 to 1997, choose rear tie rod bushings 211924 (diameter 35mm).
Please check the rod socket diameter before purchasing.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 34
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
