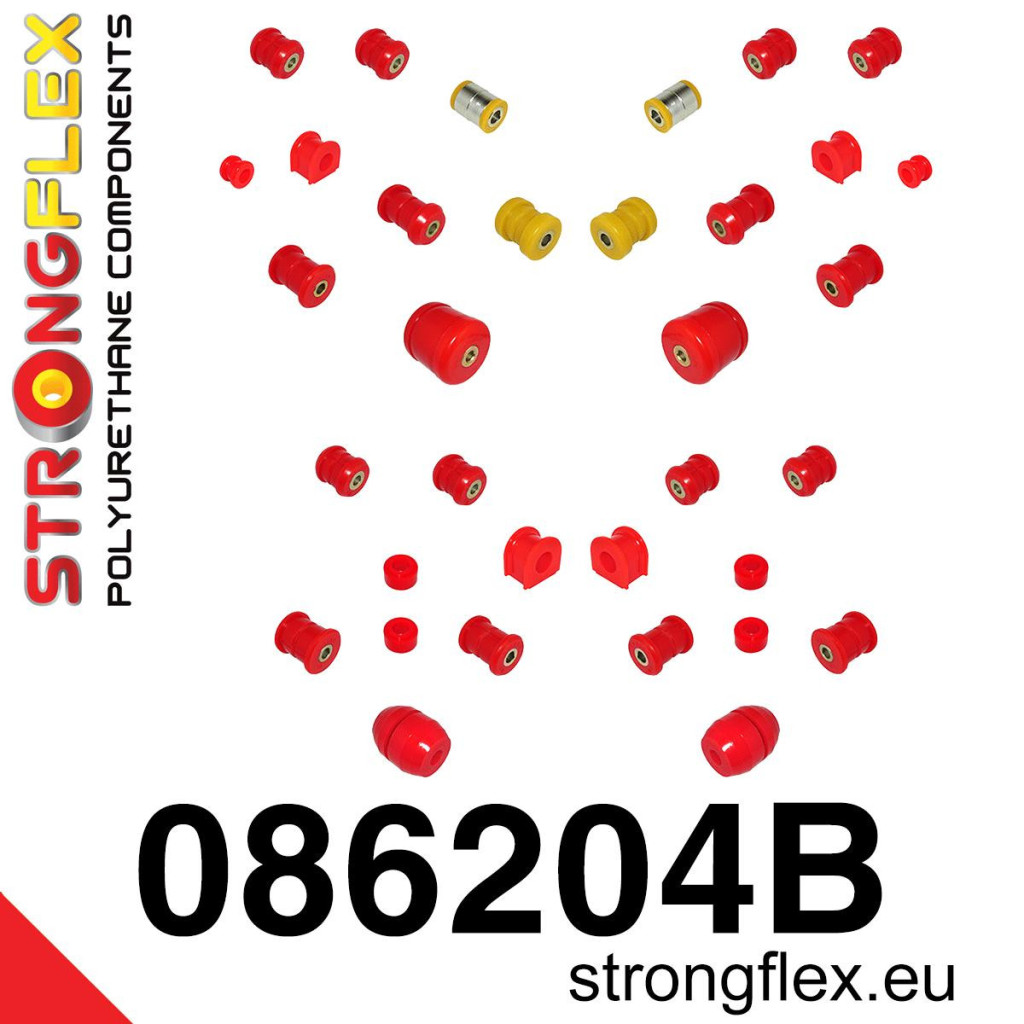

Reference: 086204B
Product name: Full suspension bush kit
Fits to:
- Honda Prelude IV (92-96) BA / BB
Include:
- 8x 081639B: Upper arm bush
- 2x 081640B: Front lower inner arm bush
- 2x 081641B: Front lower outer arm bush
- 2x 081713B: Front anti roll bar bush
- 2x 081740B: Front radius rod bush
- 4x 081743B: Front anti roll bar link bush
- 2x 081714B: Rear anti roll bar bush
- 2x 081741B: Rear anti roll bar link bush
- 0/2x 081742A: Rear toe adjuster inner bush SPORT*
- 2x 081643A: Rear lower inner arm bush SPORT
- 2x 081646B: Rear lower outer arm bush
- 2x 081647B: Rear trailing arm front bush
- 2x 081648B: Rear trailing arm rear bush
Diagrams:

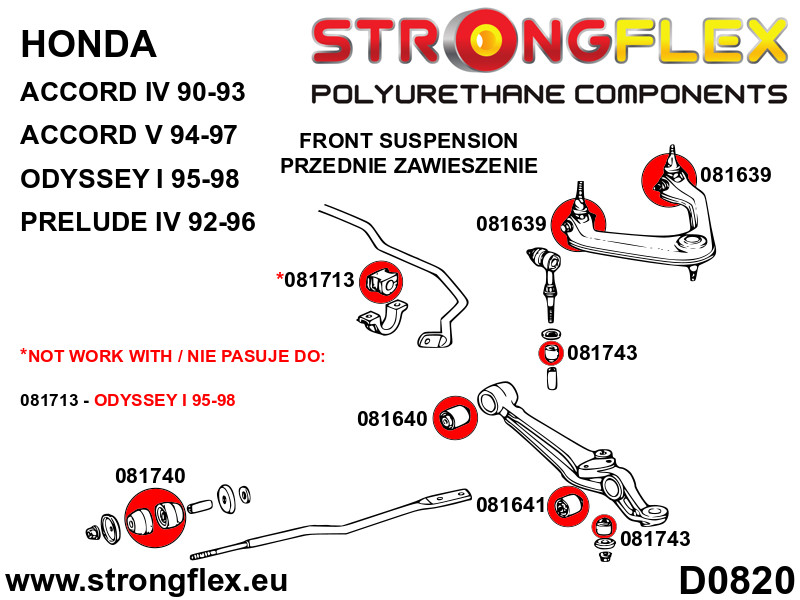

- D0820

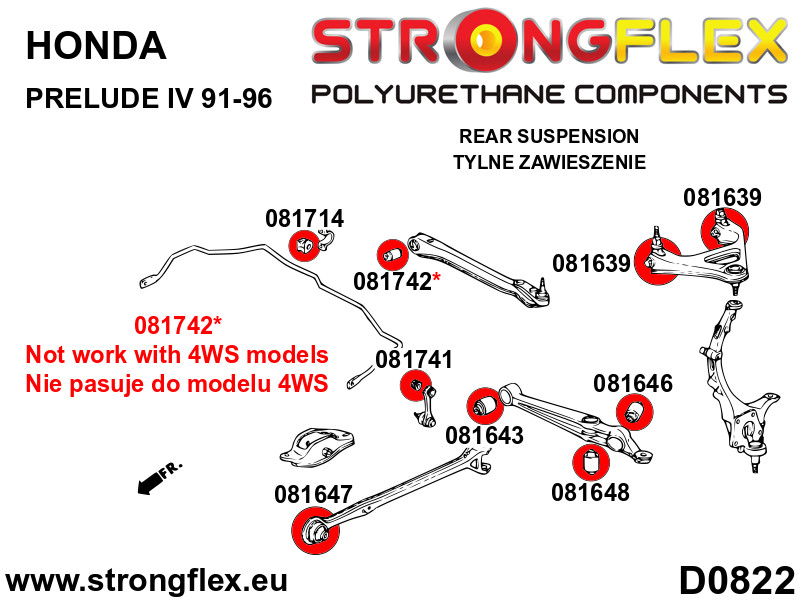

- D0822

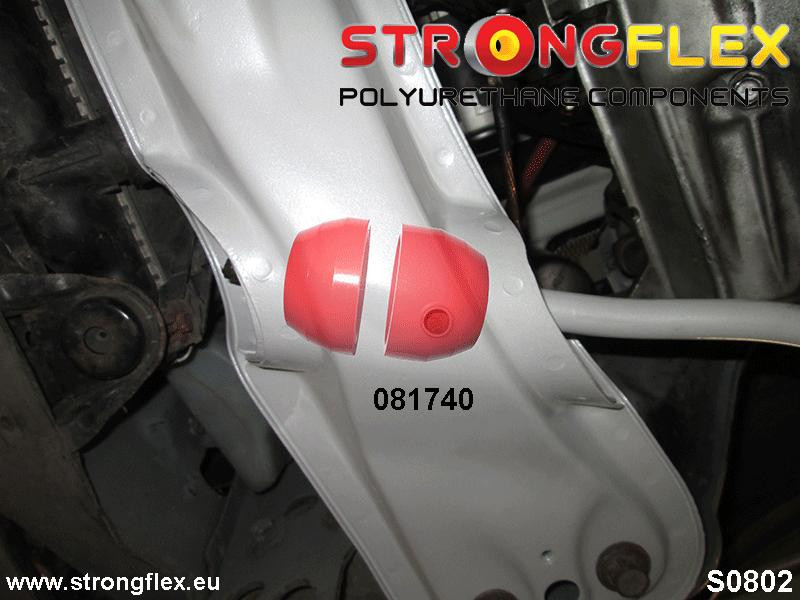

- S0802

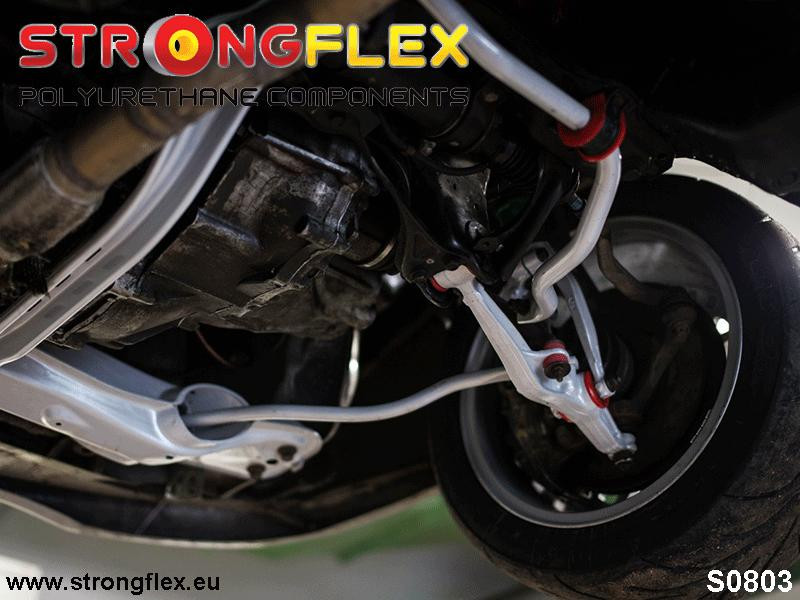

- S0803

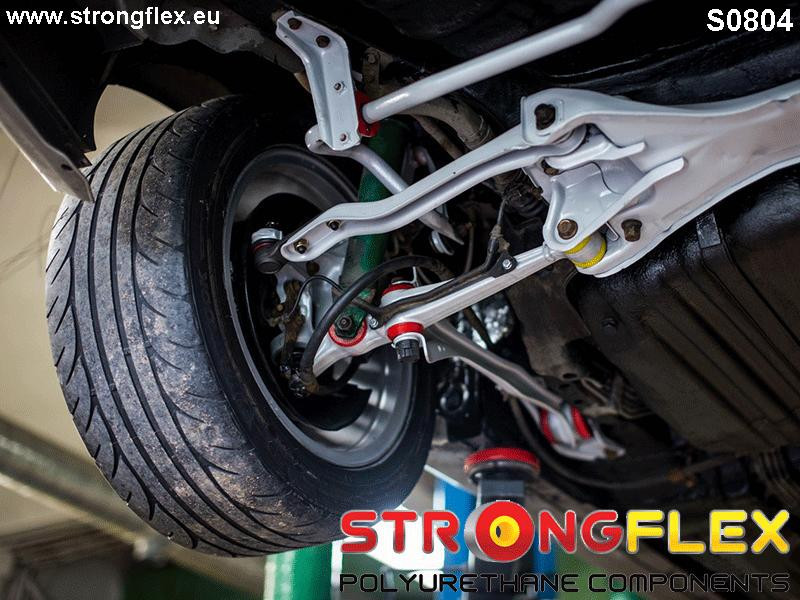

- S0804
Notes
- For bush 081647:
To install the polyurethane bushing 081647 you must burn the old rubber bush. Do not remove the outer metal sleeve, it must be reused for this bushing!
- 081742:
The bush only fits models with the 4WS system. For models without the 4WS system, select "+". For models with the 4WS system, select "-".
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 32/34
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
