Reference: 076163B
Product name: Full suspension bush kit
Fits to:
- Ford C-Max MK I (03-10)
- Ford Focus MK2 (04-11)
- Ford Focus MK2 ST
- Ford Kuga MK I (08-12)
- Mazda 3 I (03-09) BK DOES NOT FIT MPS-VERSION AND 2.0 DIESEL
- Mazda 3 II (08-13) BL DOES NOT FIT MPS-VERSION
- Mazda 5 / Premacy III (10-17) CW

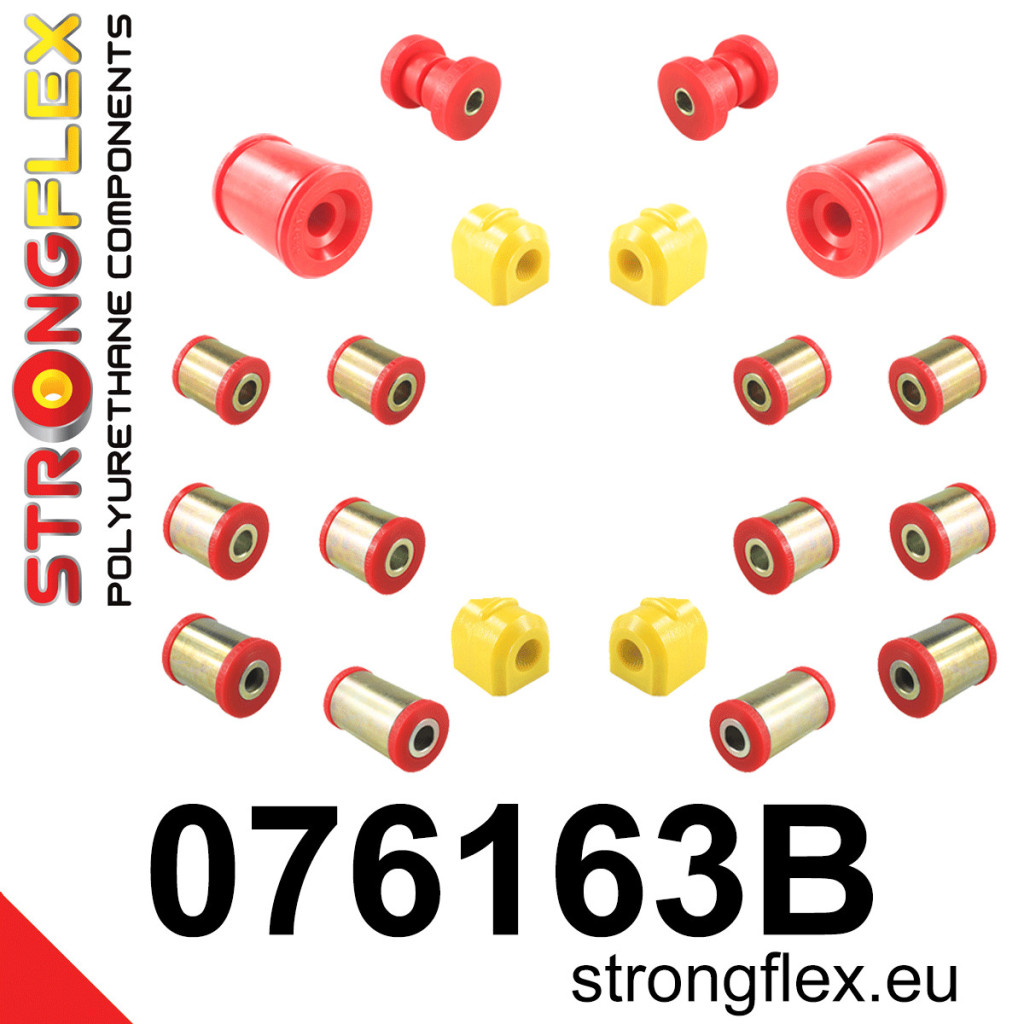

Include:
- 2x 071465B: Front wishbone front bush - bolt 12mm
or - 2x 071475B: Front wishbone front bush - bolt 14mm
- 2x 071486B: Front control arm – rear bush
- 2x 071483A: Anti roll bar bush SPORT
- 4x 071524B: Rear lower front arm bush
- 4x 071480B: Rear arm upper bush
- 2x 071481B: Rear inner lower arm bush
- 2x 071468B: Rear outer lower arm bush
- 2x 070012A: Anti roll bar bush SPORT
or - 2x 071483A: Anti roll bar bush SPORT

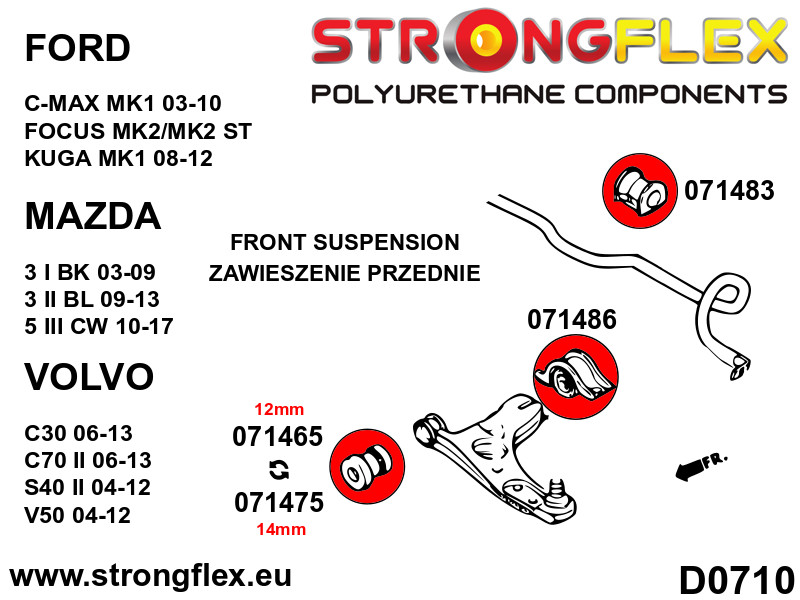

Diagrams:
Notes
Before ordering, please check the sleeve mounting screw:
071465 - 12mm
071475 - 14mm
Rear stabilizer bush type:
Choose bush 070012 if you have:
Ford Kuga MK1
Choose bush 071483 if you have:
Ford C-Max MK1
Ford Focus MK2, MK2 ST
Mazda 3 I BK
Mazda 3 II BL
Mazda 5 III CW
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 20
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
