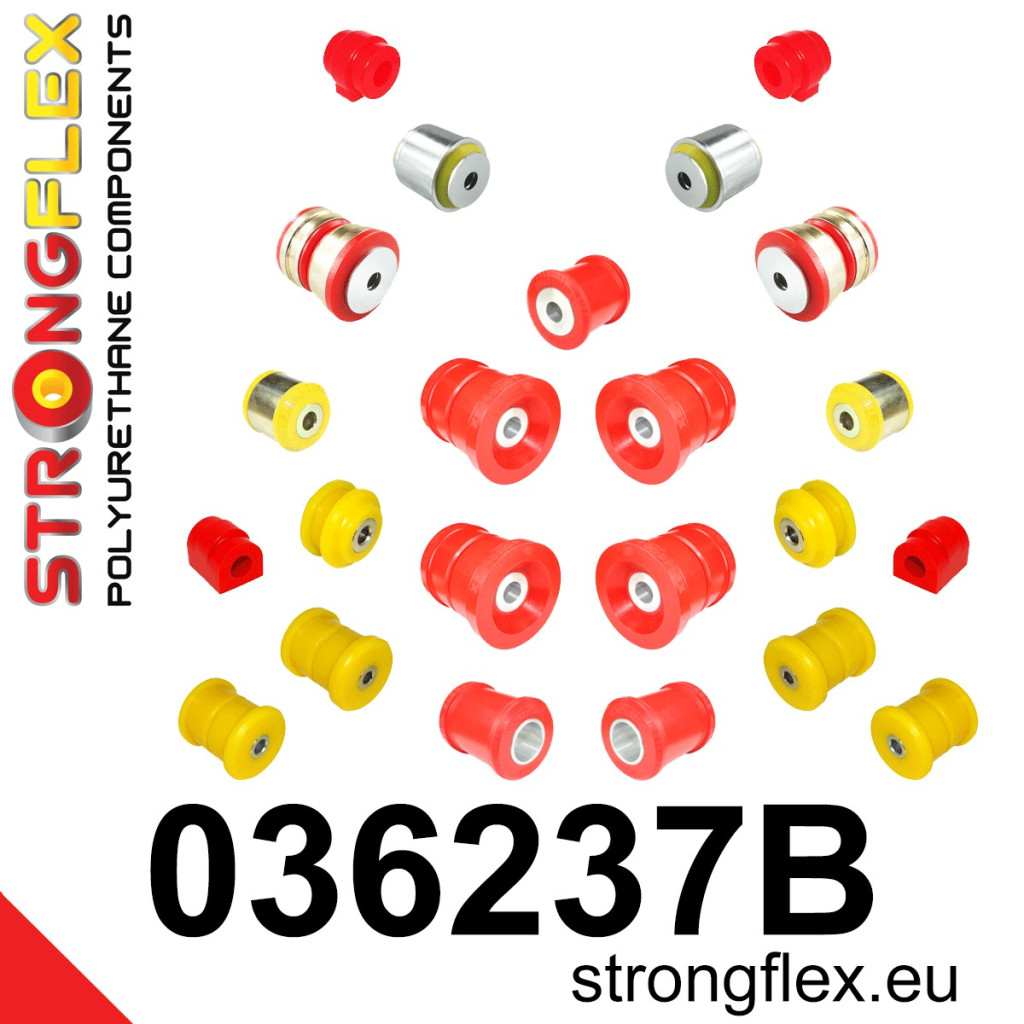

KIT ID: 036237B
Name: Full suspension bush kit
- Fit:
- Include:
- 2 x 031410A Front lower front bush SPORT
- 2 x 031638B Front lower tie bar to chassis bush 66mm
- 2 x 031238B Front anti roll bar bush
- 2 x 031744A Rear toe adjust inner bush SPORT
- 2 x 031914A Rear upper arm inner bush SPORT
- 2 x 031197A Rear lower trailing arm - front bush SPORT M10
- 2 x 031198A Rear lower trailing arm - rear bush SPORT M12
- 2 x 031167B Rear anti roll bar bush
- 4 x 031915B Rear subframe
- 1 x 031916B Rear diff mount - front bush
- 2 x 031917B Rear diff mount - rear bush
Pcs/prod: 23
Required/car: 1
- Diagrams:

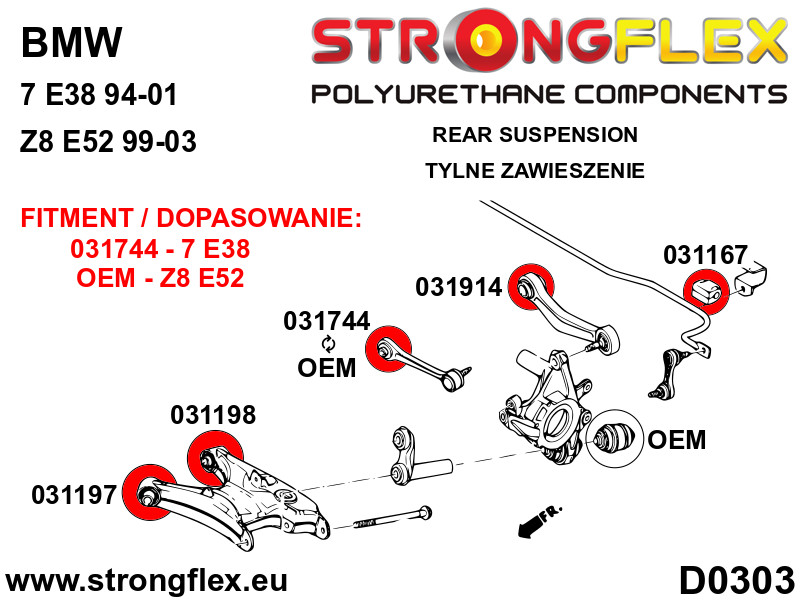

- D0303

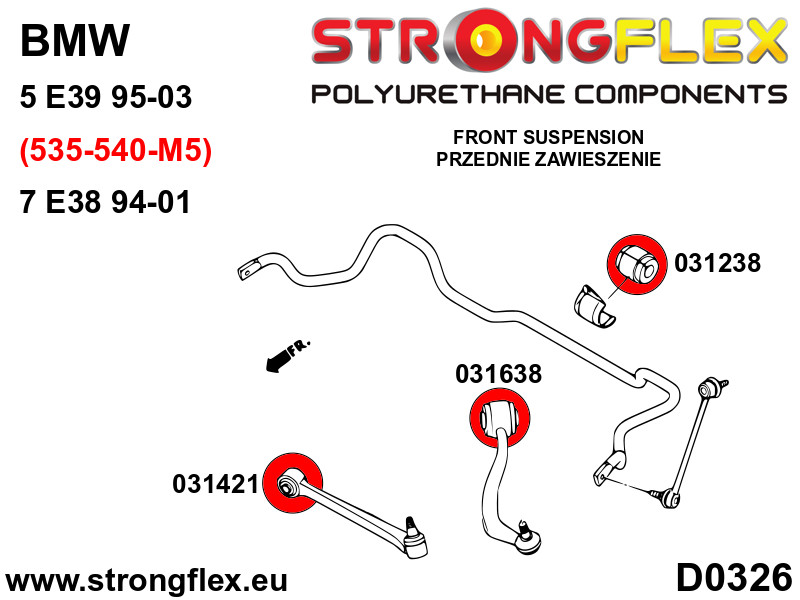

- D0326

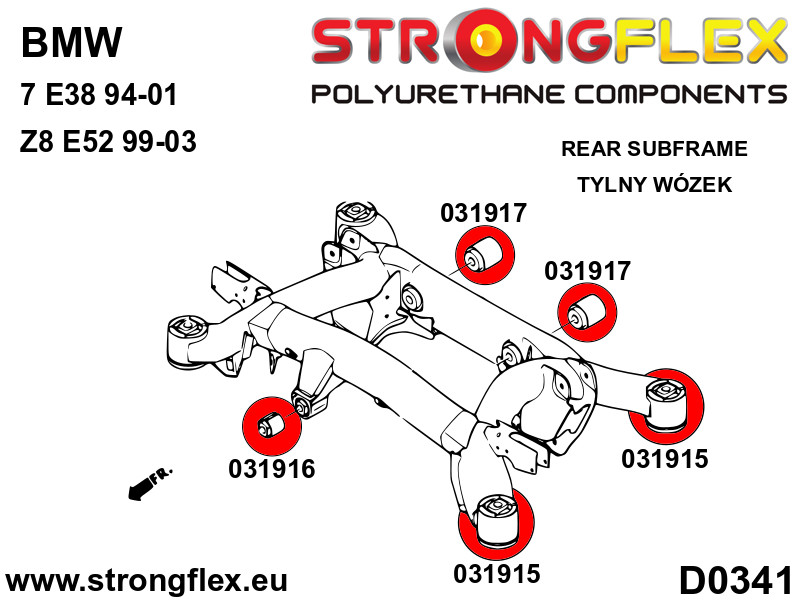

- D0341
NOTE!
Check the front & rear anti roll bar diameters before placing order.
031197A - The fixing screw in model 7 E38 is 10mm.
031198A - The fixing screw in model 7 E38 is 12mm.
If your E38 has other screws please contact us or the appropriate note in your order.
Some bushings in the set are YELLOW (90ShA) because the original bushings are made of hard rubber.
The use of RED (80 SHA) on some arms can have a negative effect on driving.
Hardness: 80ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
