Reference: 036105A

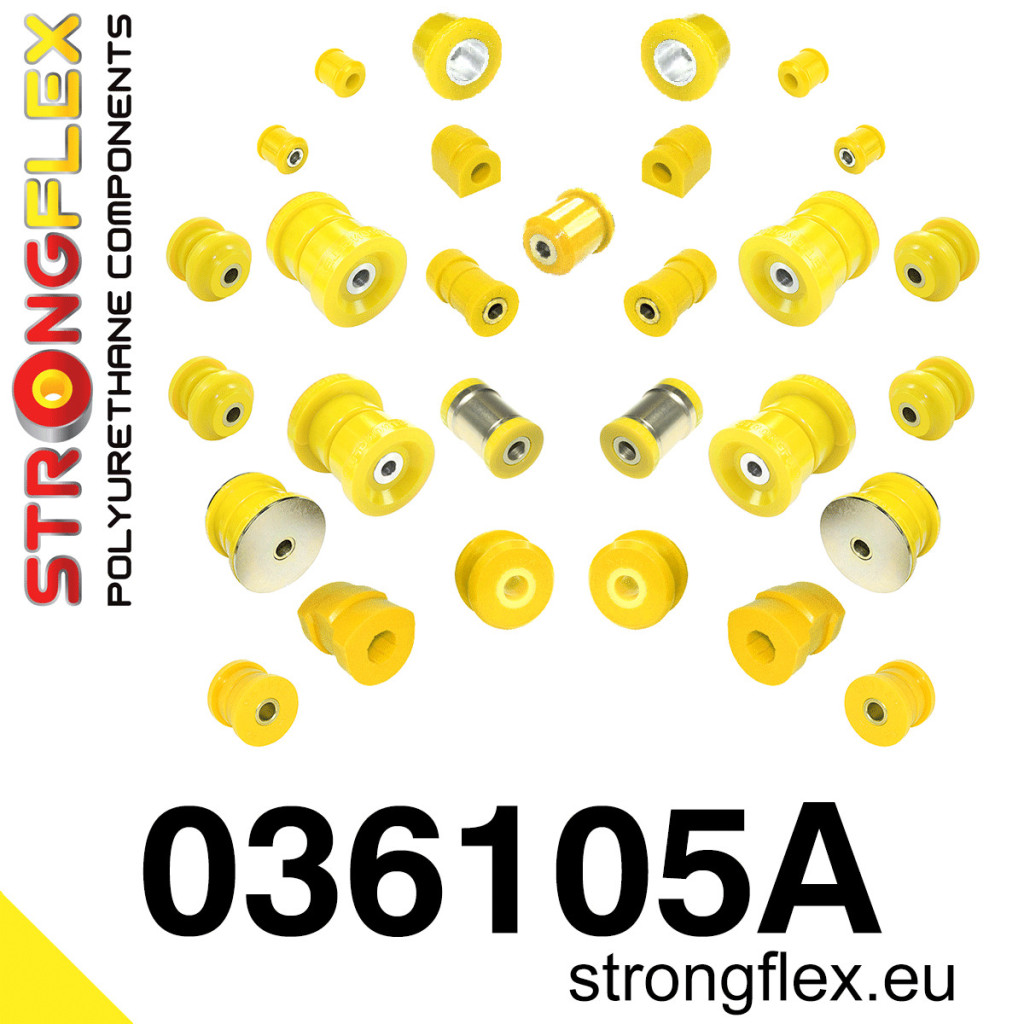

Product name: Full suspension bush kit SPORT
Fits to:
- BMW 3 III (90-99) E36
- BMW 3 III (92-99) E36 M3
Include:
- 2x 031195A: Front lower arm bush - centric 60mm SPORT
or - 2x 031369A: Front lower arm bush - eccentric 60mm SPORT
or - 2x 031737A: Front lower arm bush - centric 60mm E46 wishbone SPORT
or - 2x 031738A: Front lower arm bush - eccentric 60mm E46 wishbone SPORT
- 2x 031183A: Front anti roll bar bush SPORT
- 0/2x 031525A: Front anti roll bar link bush SPORT
- 2x 031173A: Rear trailing arm front bush SPORT
- 2x 031174A: Rear control arm upper inner SPORT
- 4x 031175A: Rear arm - outer bush SPORT
- 2x 031176A: Rear control arm lower inner SPORT
- 2x 031167A: Anti roll bar bush front / rear SPORT
- 2x 031789A: Rear anti roll bar link to anti roll bar bush SPORT
- 2x 031790A: Rear anti roll bar link to arm bush SPORT
- 2x 031350A: Rear subframe - front bush SPORT
- 2x 031351A: Rear subframe - front bush SPORT
- 1x 031750A: Rear differential front mount bush SPORT
or - 1x 031736A: Rear differential front mount bush M3 EVO SPORT
- 2x 031587A: Rear differential rear mount bush SPORT
Diagrams:

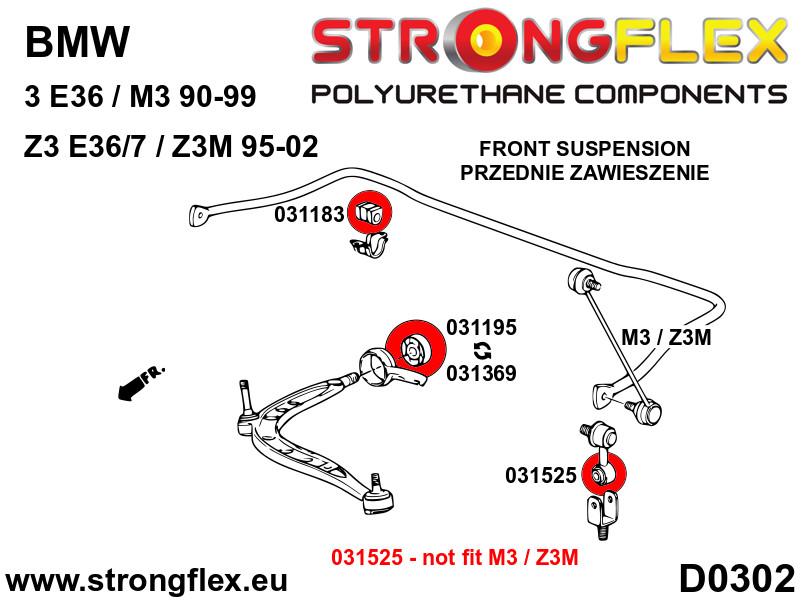

- D0302

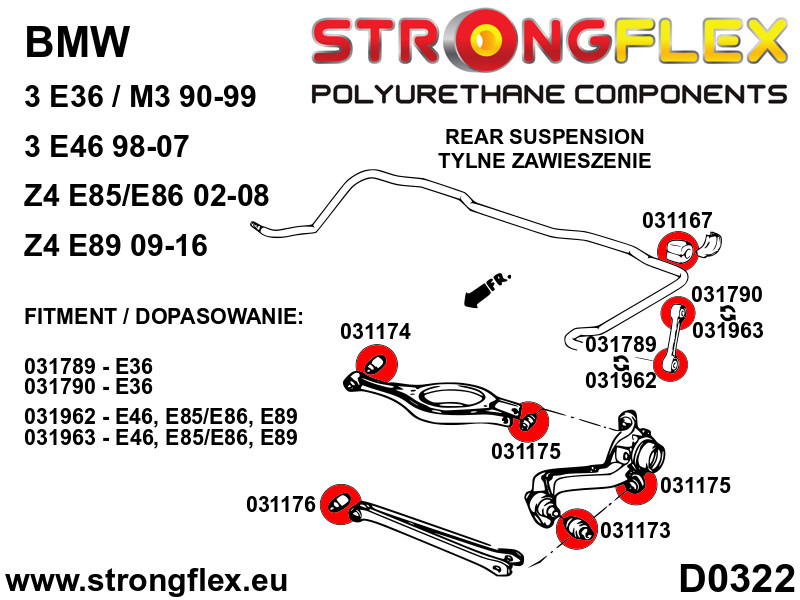

- D0322

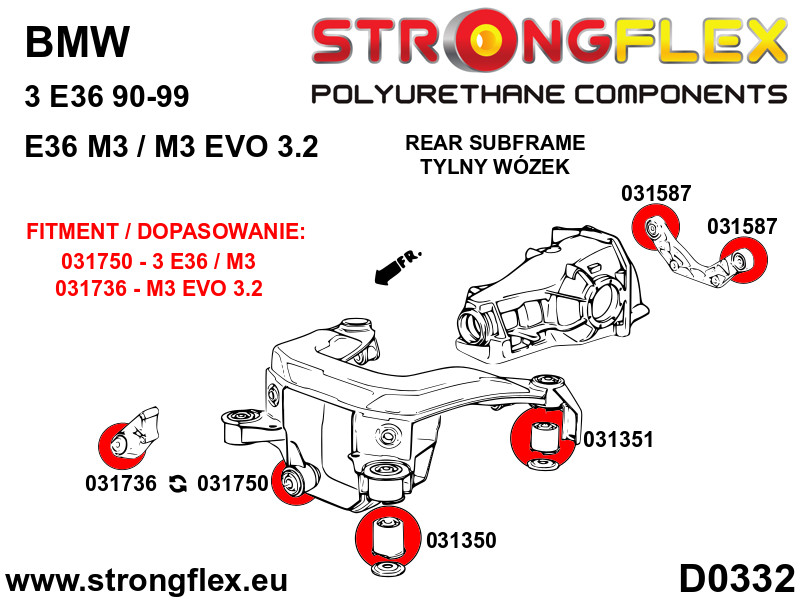

- D0332

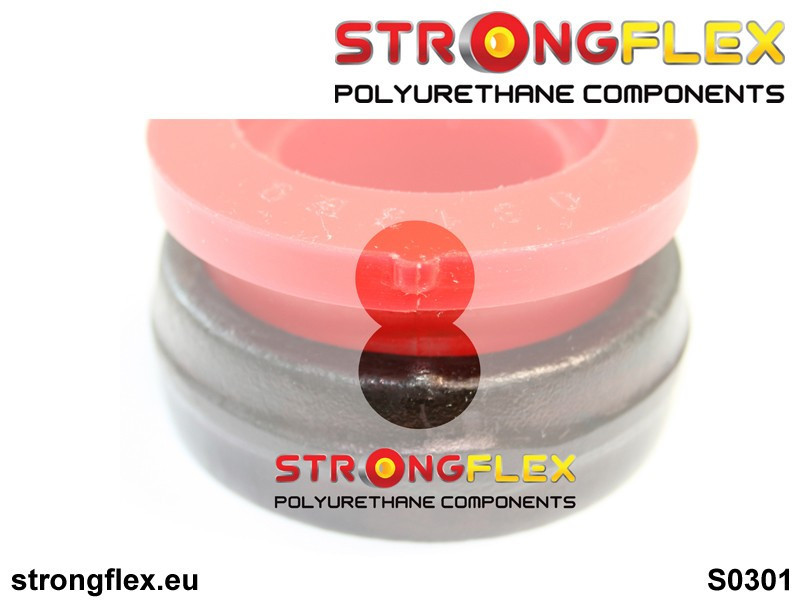

- S0301
- S0306
Notes
- Bushing 031525 only fits the link mounted to the wishbone. Does not fit the link connecting the stabilizer to the shock absorber. Does not fit E36 M3 and Z3M models.
- Front wishbone bush - rear:
031195 - centric 60mm
031369 - eccentric 60mm
031737 - centric 60mm E46 wishbone
031738 - eccentric 60mm E46 wishbone
- Rear differential bush - front:

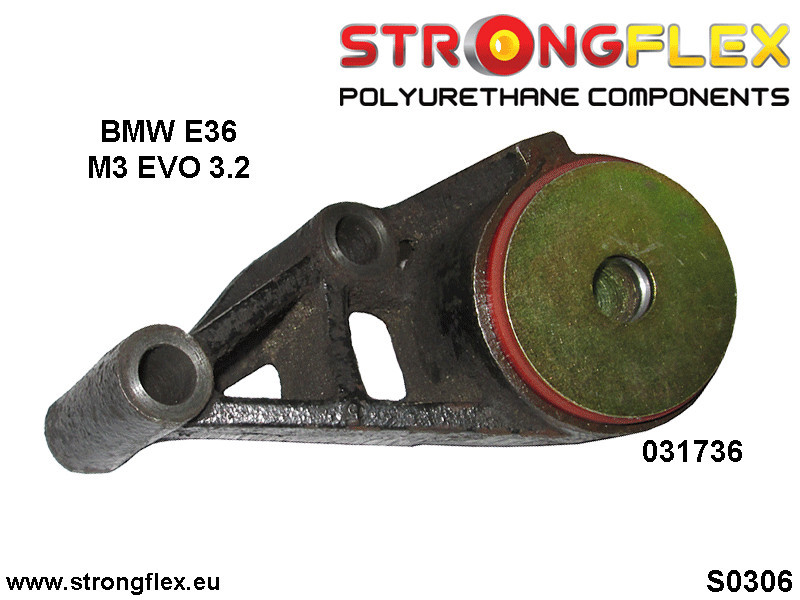

If you have an E36 M3 EVO 3.2 model where the differential is mounted on a separate bracket, choose bushes 031736. For other E36 models, bush 031750 fits. See the attached photo S0306.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 27/29
Hardness: 90Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
