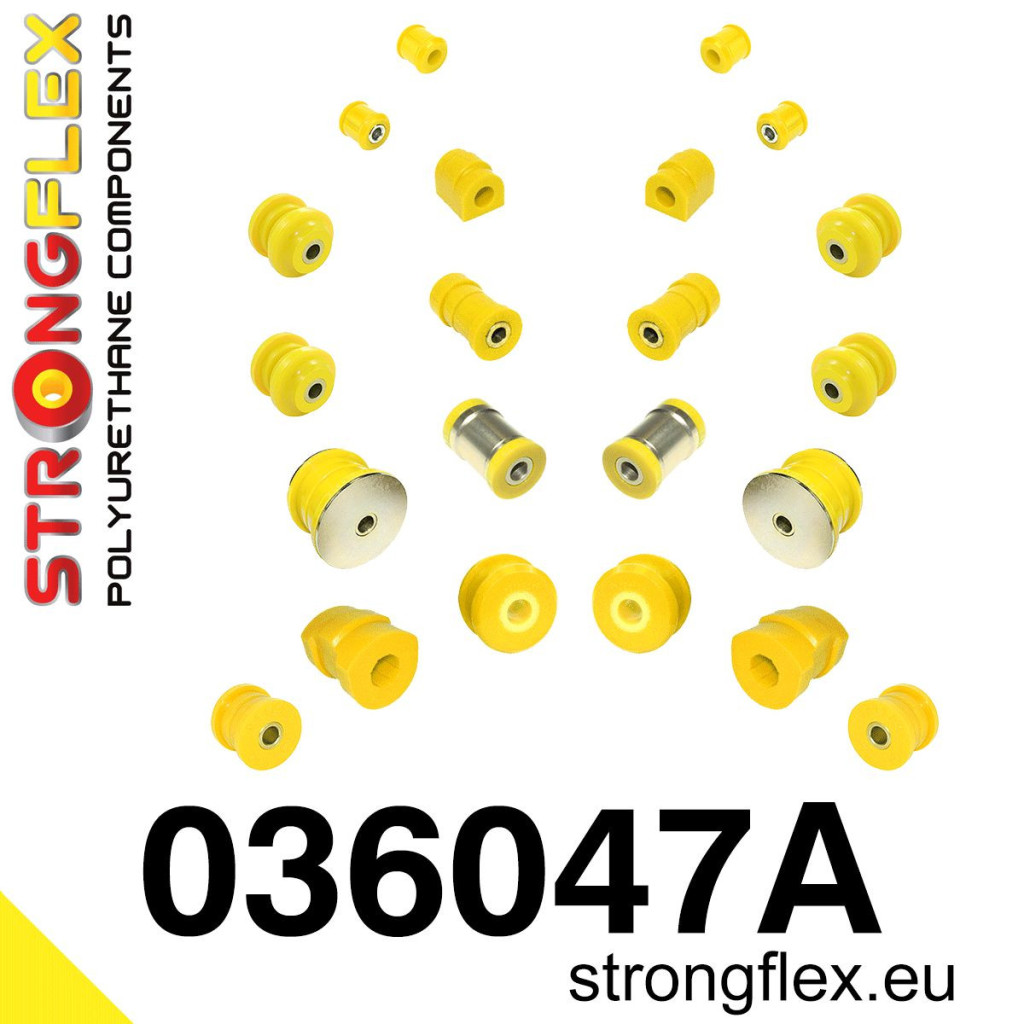

036047A: Front and rear suspension bush kit SPORT

Reference: 036047A

Product name: Front and rear suspension bush kit SPORT

Fits to:

• BMW 3 III (90-99) E36
• BMW 3 III (92-99) E36 M3

Include:

• 2x 031195A: Front lower arm bush - centric 60mm SPORT
  or
• 2x 031369A: Front lower arm bush - eccentric 60mm SPORT
  or
• 2x 031737A: Front lower arm bush - centric 60mm E46 wishbone SPORT
  or
• 2x 031738A: Front lower arm bush - eccentric 60mm E46 wishbone SPORT


• 2x 031183A: Front anti roll bar bush SPORT


• 0/2x 031525A: Front anti roll bar link bush SPORT


• 2x 031173A: Rear trailing arm front bush SPORT
• 2x 031174A: Rear control arm upper inner SPORT
• 4x 031175A: Rear arm - outer bush SPORT
• 2x 031176A: Rear control arm lower inner SPORT
• 2x 031167A: Anti roll bar bush front / rear SPORT
• 2x 031789A: Rear anti roll bar link to anti roll bar bush SPORT
• 2x 031790A: Rear anti roll bar link to arm bush SPORT

Diagrams:

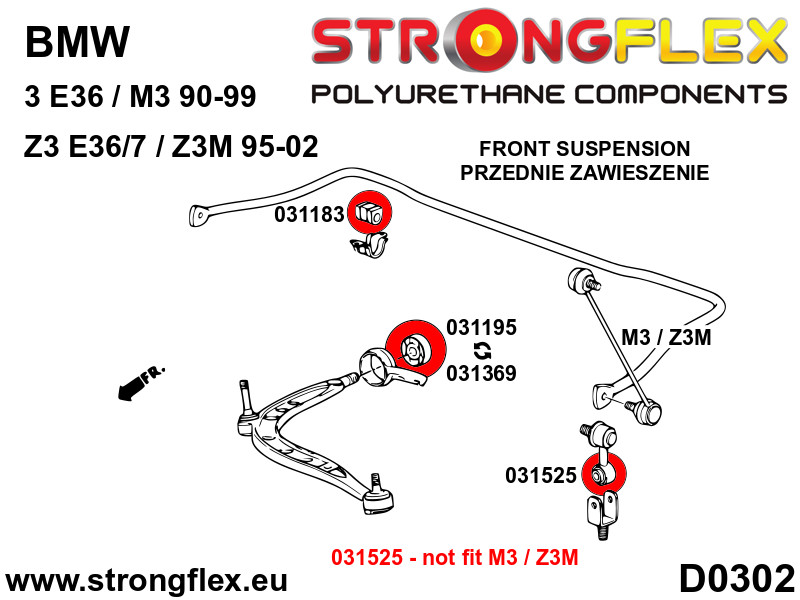

• D0302

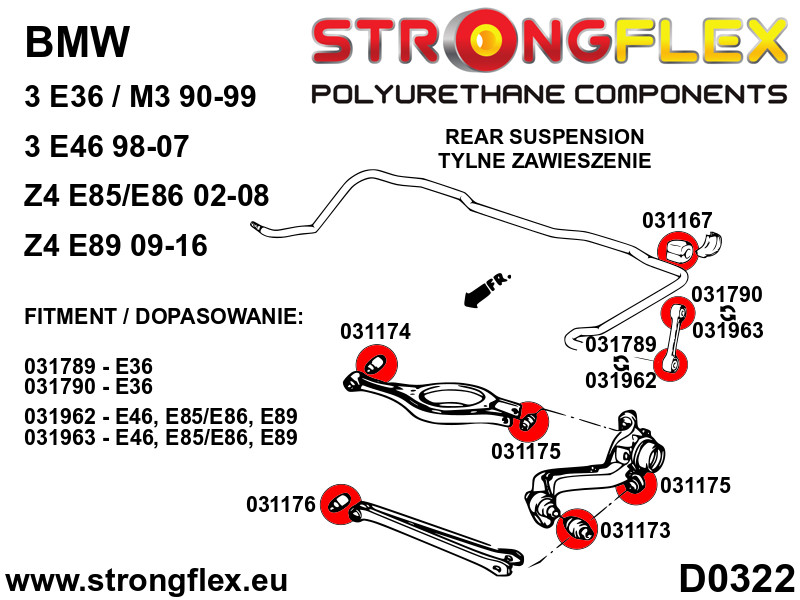

• D0322

Notes

• Bushing 031525 only fits the link mounted to the wishbone. Does not fit the link connecting the stabilizer to the shock absorber. Does not fit E36 M3 and Z3M models.


• Front wishbone bush - rear:
  031195 - centric 60mm
  031369 - eccentric 60mm
  031737 - centric 60mm E46 wishbone
  031738 - eccentric 60mm E46 wishbone

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 20/22

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
