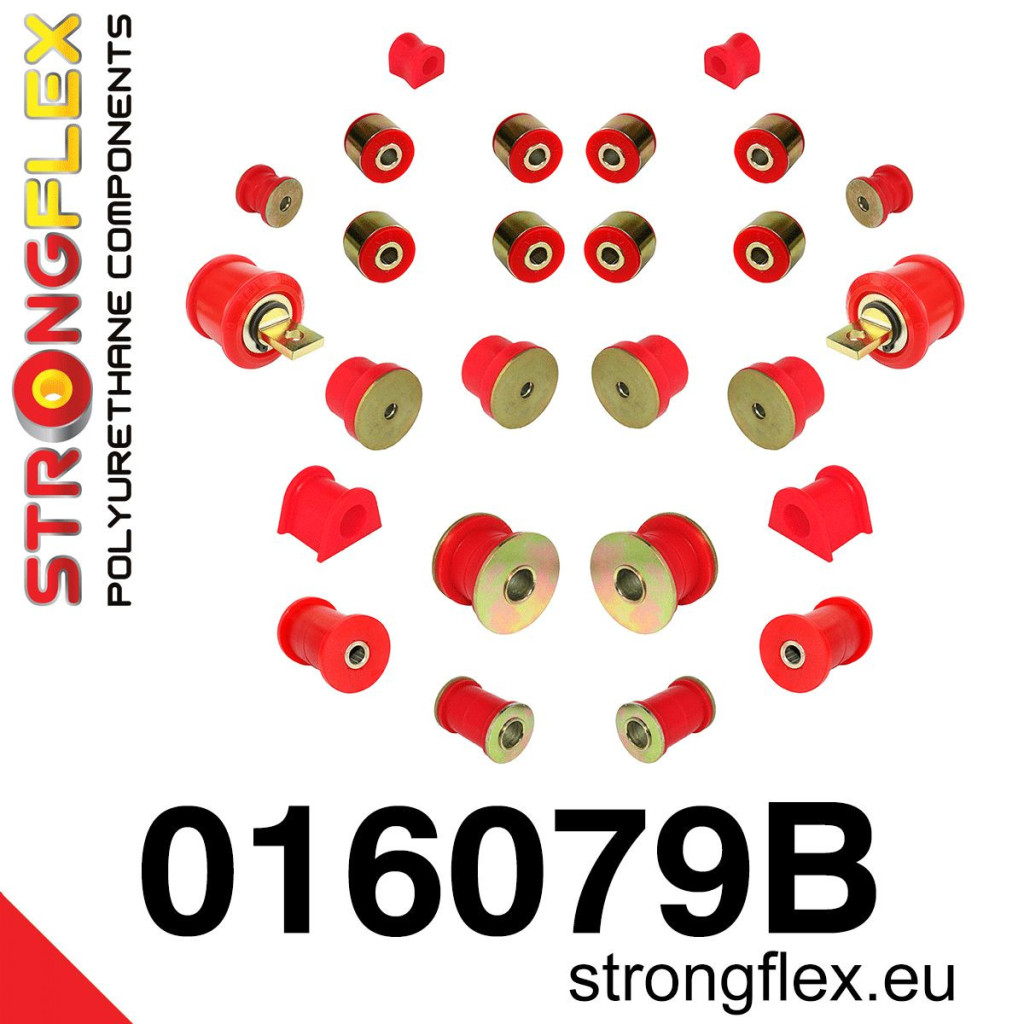

016079B: Full suspension bush kit

Reference: 016079B

Product name: Full suspension bush kit

Fits to:

• Alfa Romeo 147 (00-10) type 937
• Alfa Romeo 156 (97-07) type 932 FWD
• Alfa Romeo GT (03-10) type 937

Include:

• 2x 011188B: Front anti roll bar bush
• 4x 011191B: Front upper arm bush
• 2x 011492B: Front lower wishbone rear bush
• 2x 011297B: Front lower wishbone front bush
• 2x 011300B: Front lower wishbone outer bush


• 2x 011876B: Rear trailing arm - front bush
• 4x 011186B: Rear suspension front arm bush
• 4x 011189B: Rear suspension rear arm bush
• 2x 011187B: Rear anti roll bar bush
• 2x 011705B: Rear tie bar to hub bush

Diagrams:

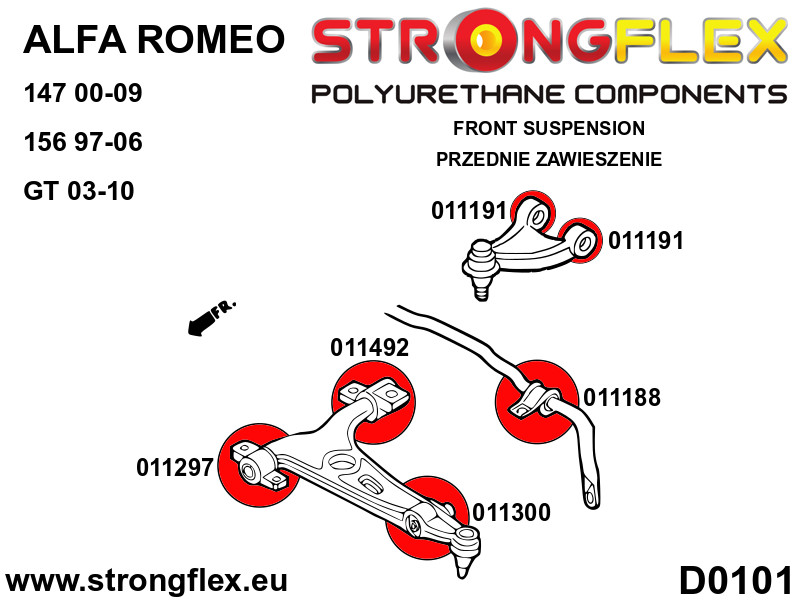

• D0101

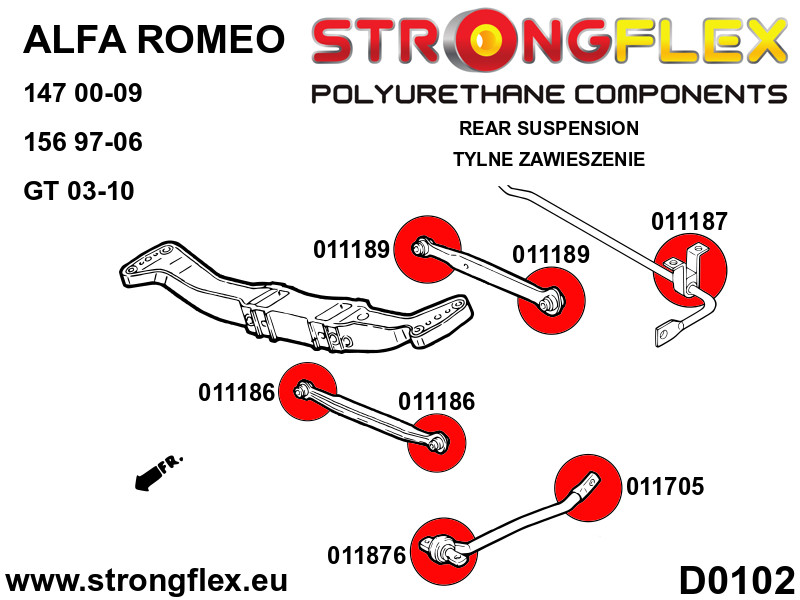

• D0102
• D0101

Notes

• Bush 011297A fits only to oryginal wishbone - centre pins 19mm

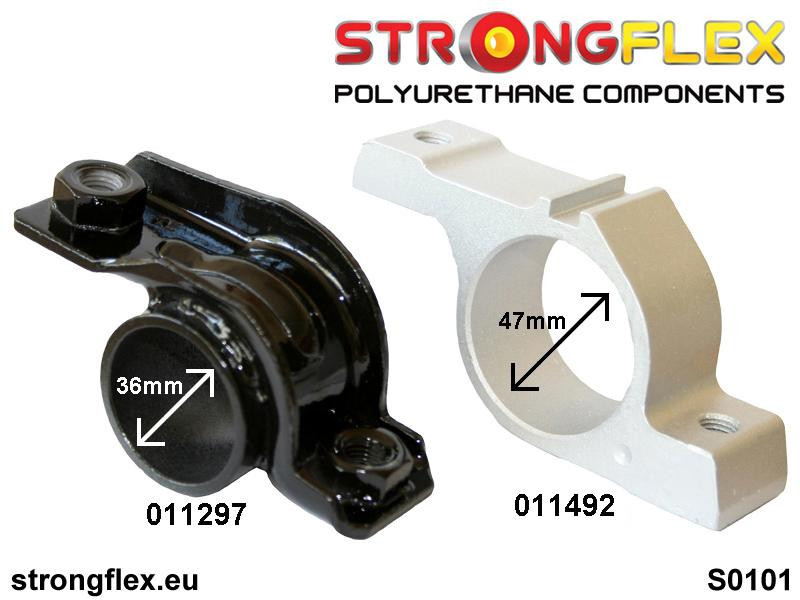

  For mounting this bushes you need old metal parts from your original wishbones 36mm. See attached photo S0101


• Bush 011492A fits only to oryginal wishbone - centre pins 20mm
  For mounting this bushes you need old metal parts from your original wishbones 47mm. See attached photo S0101

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 26

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
